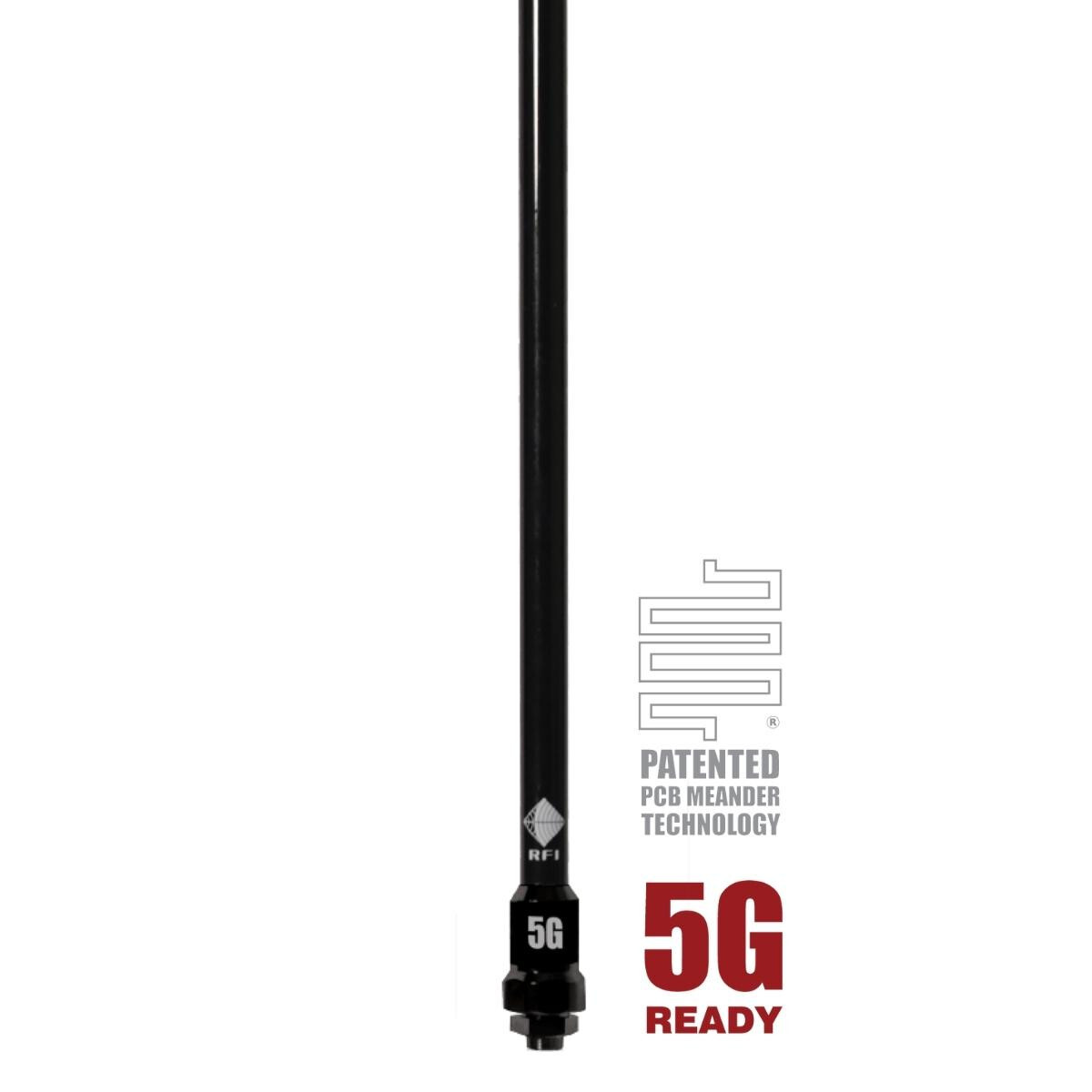

RFI CD8294 5.5dBi Telemetry Antenna - 698-960 & 1710-3800MHz

Key Features

•  Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.

•  Ideal for new 5G LTE networks with true multi-band coverage.

• Supplied with 5m low loss coaxial cable, with Male SMA connector.

Additional Information

• The CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and now the new 5G LTE band (3400-3800 MHz).

• It is ideal for use with cellular modems & active repeaters, especially when the signal is poor.

• The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.

• This antenna does not provide MIMO, if you require the best possible Internet performance you should use two antennas, separated by around 300mm.

Usage

• This multi-purpose antenna is most often used in Telemtry/M2M applications in remote applications

• The CD8294 is a brilliant solution to slow wireless broadband or poor phone reception in suburban areas, or anywhere where signal is poor inside but fine outside

• Supplied with 5m RG-58 cabling, Stud Mount requiring a 13mm Hole

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		5.5dBi
Optus 4G+ (700MHz)		5.5dBi
Telstra Next-G™ (850MHz)		5.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		5.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		5.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		5.5dBi
Telstra/Optus/Voda 4G (1800MHz)		4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)		4.5dBi
Optus 4G TDD (2300MHz)		5.5dBi
Telstra 4GX (2600MHz)		5.5dBi
All Carriers 5G (3600MHz)		6.5dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700 / 3400-3800MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Vertical Beamwidth: 30° / 30° / 20° / 15°

• Maximum Power: 10Watts.

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, PCB Radiator, Aluminium mounting tube

• Cable: 5m Cellfoil 9006 low loss coaxial

• Connector: SMA Male

• Female Length: 571mm

• Weight: 0.57kg.

Read More

• Specification Sheet
