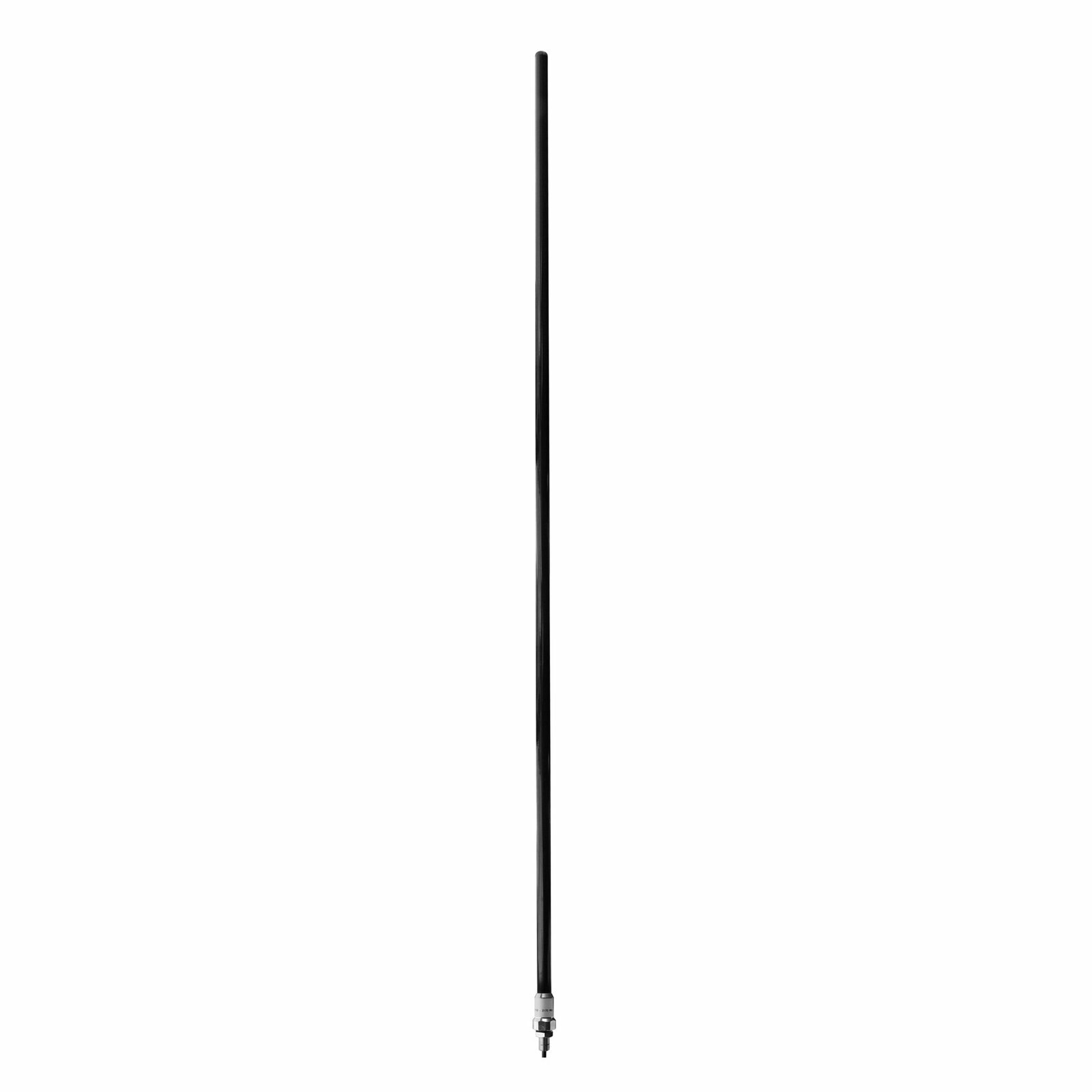

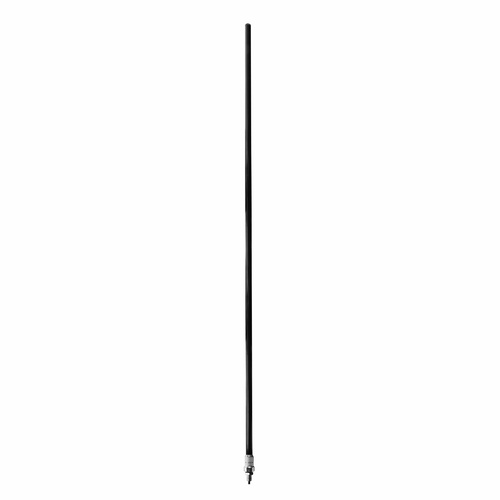

RFI CD8295 Telemetry Antenna - 698-960 & 1710-3800MHz

Key Features

• Ideal for all new 4G LTE networks with true multi-band coverage 700-3800MHz

• Cutting edge printed circuit board design

• Supplied with 5m low loss coaxial cable, with Male SMA connector.

Additional Information

• The evolution continues with the release of the CD8295 4G LTE cellular telemtry antenna

• In response to the lightning fast roll-out of Telstra 4GX and Optus 4G+ services nation wide, we approached RFI to design a vehicle mounted antenna capable of operating on the new 700MHz LTE network

• Part of the challenge was to improve gain on regular 1800MHz 4G services, and provide some operation on the new 2600MHz network to ensure the antenna would remain futureproof for Cat-11 LTE devices capable of providing 450-600Mbps by aggregating 700+1800+2600MHz bands together

• Like the CD2295, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements - these Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth

• The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit

• The CD8295 provides an impressive 6.5dBi gain on lower bands such as 3G, Next-G, and 4GX, as well as a modest 4.5dBi gain on regular 4G bands

• This antenna does not provide MIMO, if you require the best possible Internet performance you should use two antennas, separated by around 300mm.

Usage

• This multi-purpose antenna is most often used in Telemtry/M2M applications in remote applications

• The CD8295 is a brilliant solution to slow wireless broadband or poor phone reception in suburban areas, or anywhere where signal is poor inside but fine outside

• Supplied with 5m RG-58 cabling, Stud Mount requiring a 13mm Hole

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		6.5dBi
Optus 4G+ (700MHz)		6.5dBi
Telstra Next-G™ (850MHz)		6.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		6.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		6.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		6.5dBi
Telstra/Optus/Voda 4G (1800MHz)		4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)		4.5dBi
Optus 4G TDD (2300MHz)		5.5dBi
Telstra 4GX (2600MHz)		5.5dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Vertical Beamwidth: 25° / 30° / 20°

• Maximum Power: 10Watts.

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, PCB Radiator, Aluminium mounting tube

• Cable: 5m Cellfoil 9006 low loss coaxial

• Connector: SMA Male

• Female Length: 806mm

• Weight: 0.57kg.

Read More

• Specification Sheet
