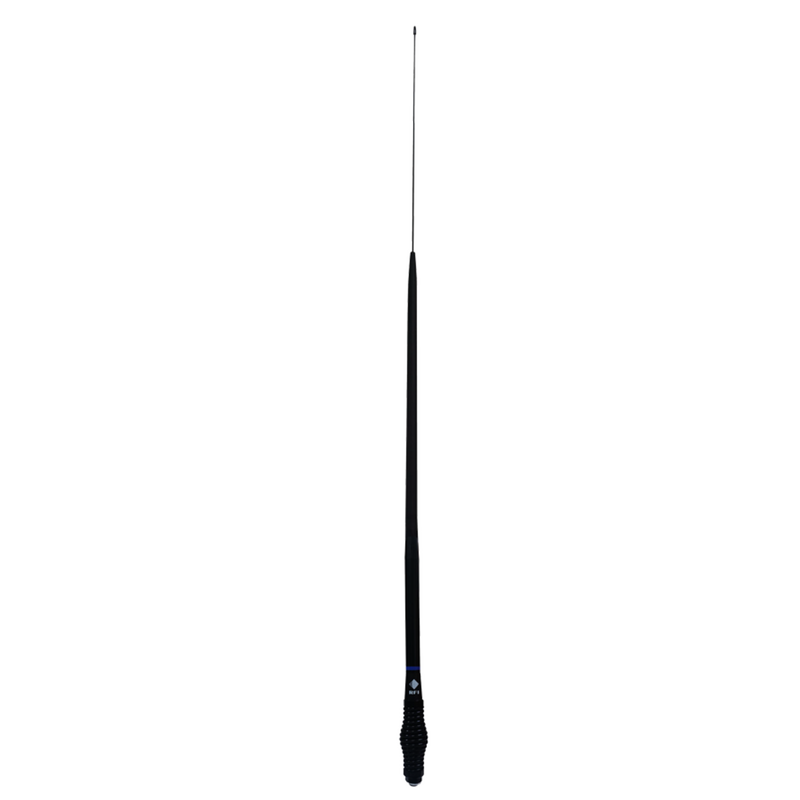

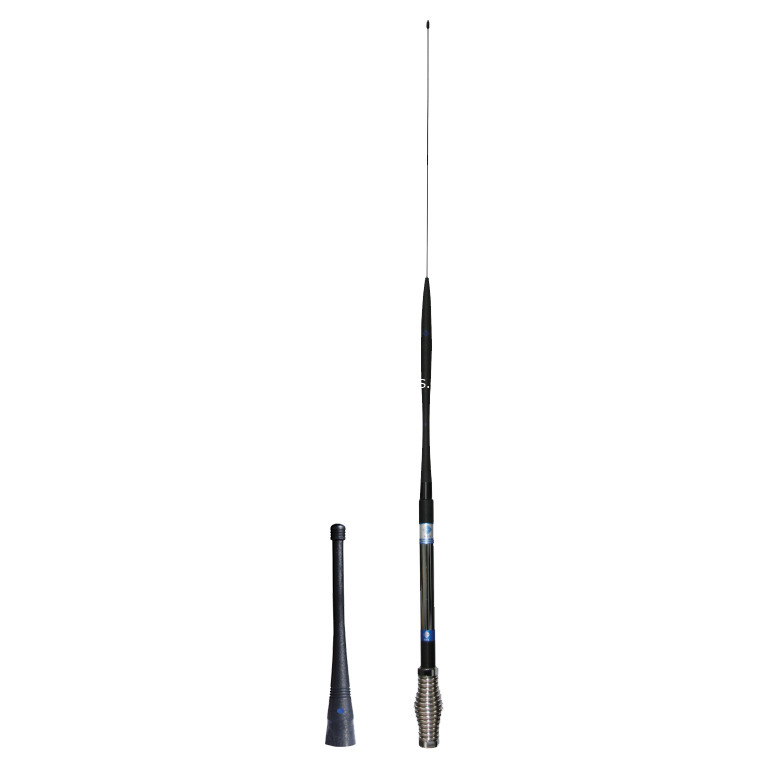

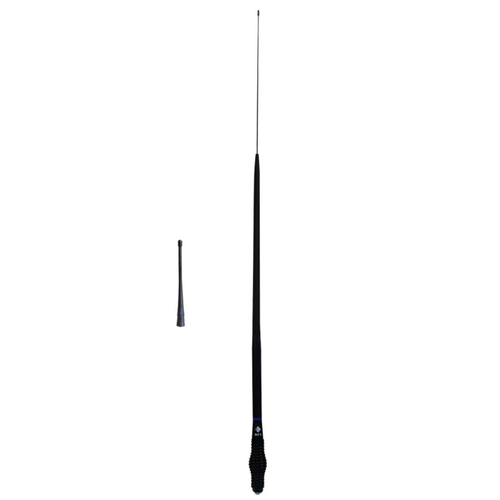

RFI Town & Country Pack, CD900 6.5dBi UHF + SW125 Whip Antenna CD961-71-75

Key Features

• Totally ground plane independent

• Elevated feed boosts radiating element above obstructions

• MSW25 "Phasemaster II™" whip section provides unsurpassed performance and strength

• Quality construction

• Choke assembly is crafted from solid brass with black finish

• Supplied pre-terminated with FME connector and UHF adaptor

• Can be used with a variety of mounts.

SW125 Features:

• Omnidirectional unity gain performance

• Robust UV stable construction

• Supplied pre-tuned

• Mounts to a CD900 choke - regardless of whether you're cruising out in the country or commuting through the CBD, this UHF pack from RFI has got you covered pairing the high performing CD900 series antenna with the SW120, which can be mounted directly on the CD900's choke.

Usage

• The CD900 Series are high performance elevated feed mobile antennas which can be used in virtually any mounting position

• When gutter or roof bar mounted, high above a vehicle, CD900 series antennas deliver a full 6.5dB gain over a 3 wave whip

• When mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design places a large portion of the antenna above the vehicle cabin, providing good all round performance regardless of mounting position

• The SW120 series is a range of low profile, flexible ¼ wave whips which provide excellent omnidirectional performance when mounted high on a vehicle

• They make an ideal roof mount antenna when coupled with either an MB10/MB12 or on to a CD90/900 Series elevated feed choke for other mounting locations

• They are available either pre-tuned to specific bands (380MHz to 520MHz) or in the case of the SW120, field tuneable from 400-520MHz

• By the nature of their location, these types of antennas are generally exposed to extreme conditions

• The SW120 Series is constructed from twisted stainless steel wire, surrounded by an injected UV stabilised TPU radome, which results in a flexible yet robust antenna.

Specifications / Frequency

Electrical and Mechanical Specifications of CD900

• Frequency Range: 470 - 490MHz

• Input Impedance: 50Ω

• VSWR: <1.6:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Maximum Power: 100Watts

• Whip Length: 850mm

• Mounting: Threaded Stud

• Construction: Polyurethene over moulded 17-7PH black chrome plated whip section on bright chrome choke

• Supplied with 5m low loss coaxial cable, female FME connector with Mini-UHF adaptor.

Electrical and Mechanical Specifications of SW125

• Frequency Range: 470 - 490MHz

• Tunable Bandwidth: Full. No tuning required

• Nominal Gain dBq: Unity

• Tuning: Supplied pre-tuned

• Maximum Power: 100Watts

• Construction: Flexible stranded stainless steel whip covered by black TPU radome

• Whip Length: 135mm

• VSWR: <2.0:1

• Mounting: 900 series choke.

What they're saying about the RFI CD900

"I'd would (and did!) go the CD900. The GME's seem far too inflexible for my liking, whereas the RFI will handle pretty much anything I can throw at it. A great all round antenna, which many on here claim outperforms every other antenna they have used - including GME. Combined with the fact the RFI is half the price of the GME, the decision was very easy." http://www.4wdaction.com.au/forum/viewtopic.php?t=91937

"I've since replaced them with the RFI CD900, I have found it to be an excellent aerial, I was able to do a direct comarison between the GME and the RFI and the RFI won hands down. I have a little 1/4 wave (6 inches) aerial to screw onto the elevated base if I am in the trees." - http://www.4x4earth.com.au/forum/comms-equipment/354-uhf-aerials-3.html
