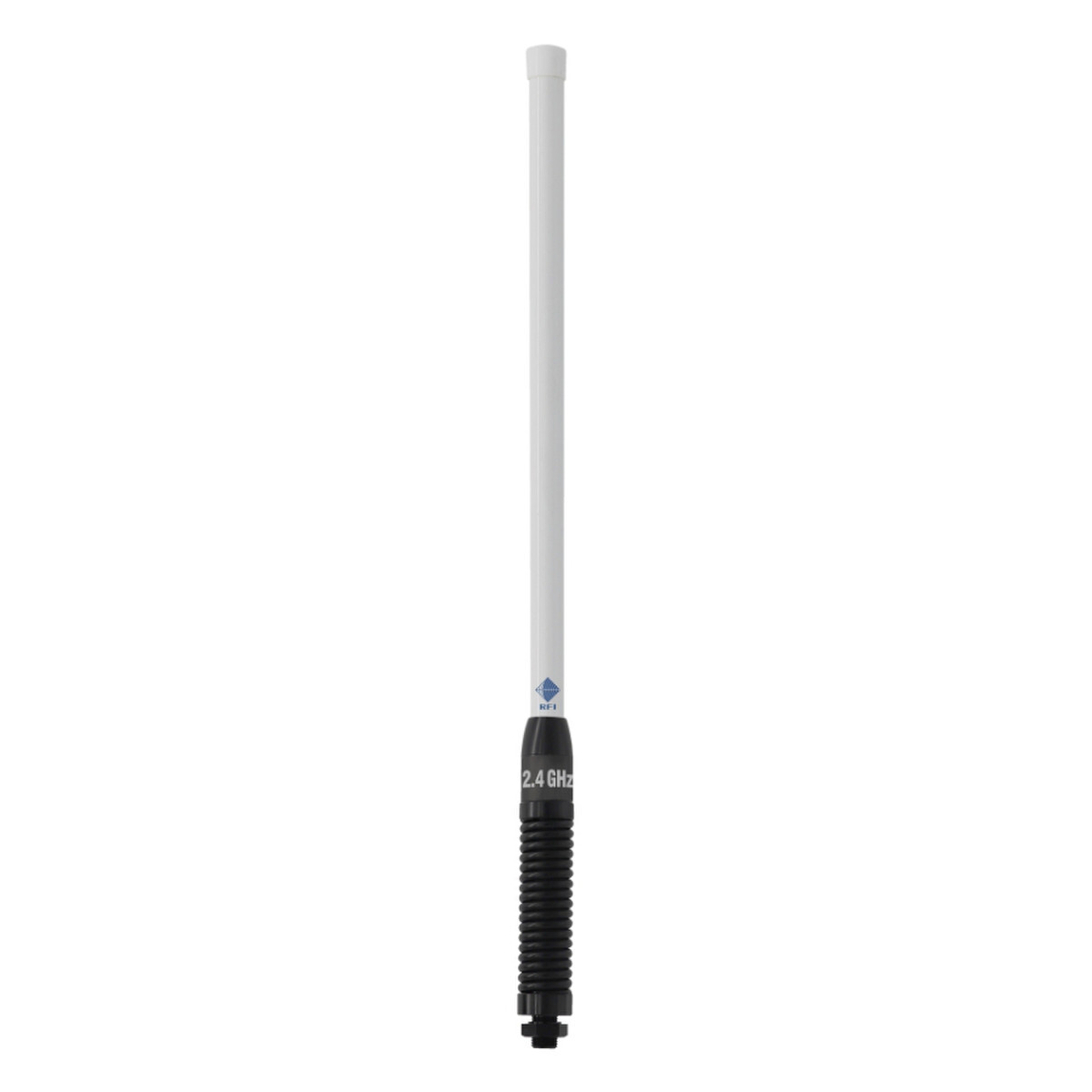

Spring Mount 6dBi CDM2406 2.4GHz WiFi Antenna

White Radome/Black Spring



Key Features



  • Full 2.4GHz ISM band - IEEE 802.11b/g/n WiFi, Bluetooth, & other ISM applications

  • Tightly controlled radiation patterns for optimum coverage

  • Small unobtrusive design

  • Stainless steel spring base for vehicle and machinery mounting.



Usage



  • The CDM2406 mobile WiFi antenna has been specifically designed for mobile WLAN applications

  • Utilising a fibreglass radome with a heavy duty stainless steel spring these antennas offer a robust and high performance solution, well suited to mining, warehousing, public transport and emergency services applications

  • This spring mount 2.4GHz ISM band antenna series offers an omnidirectional broadcast pattern enabling optimum network configuration

  • The patented PCB design delivers superior pattern stability across the entire band avoiding inherent pattern tilting common in more traditional collinear designs

  • Their UV stable white fibreglass housings make them the ideal choice in a wide range of industrial spread spectrum applications

  • The standard 13mm stud mount permits a diverse range of mounting applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n WiFi (2400MHz)
compatible
6dBi
ISM & Bluetooth (2400MHz)
compatible
6dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz

  • Input Impedance: 50Ω

  • Input Power: 5W

  • VSWR: <1.5:1

  • Vertical Beamwidth: 22°

  • Polarisation: Vertical

  • Radiation: Omnidirectional.



Mechanical/Environmental Specifications

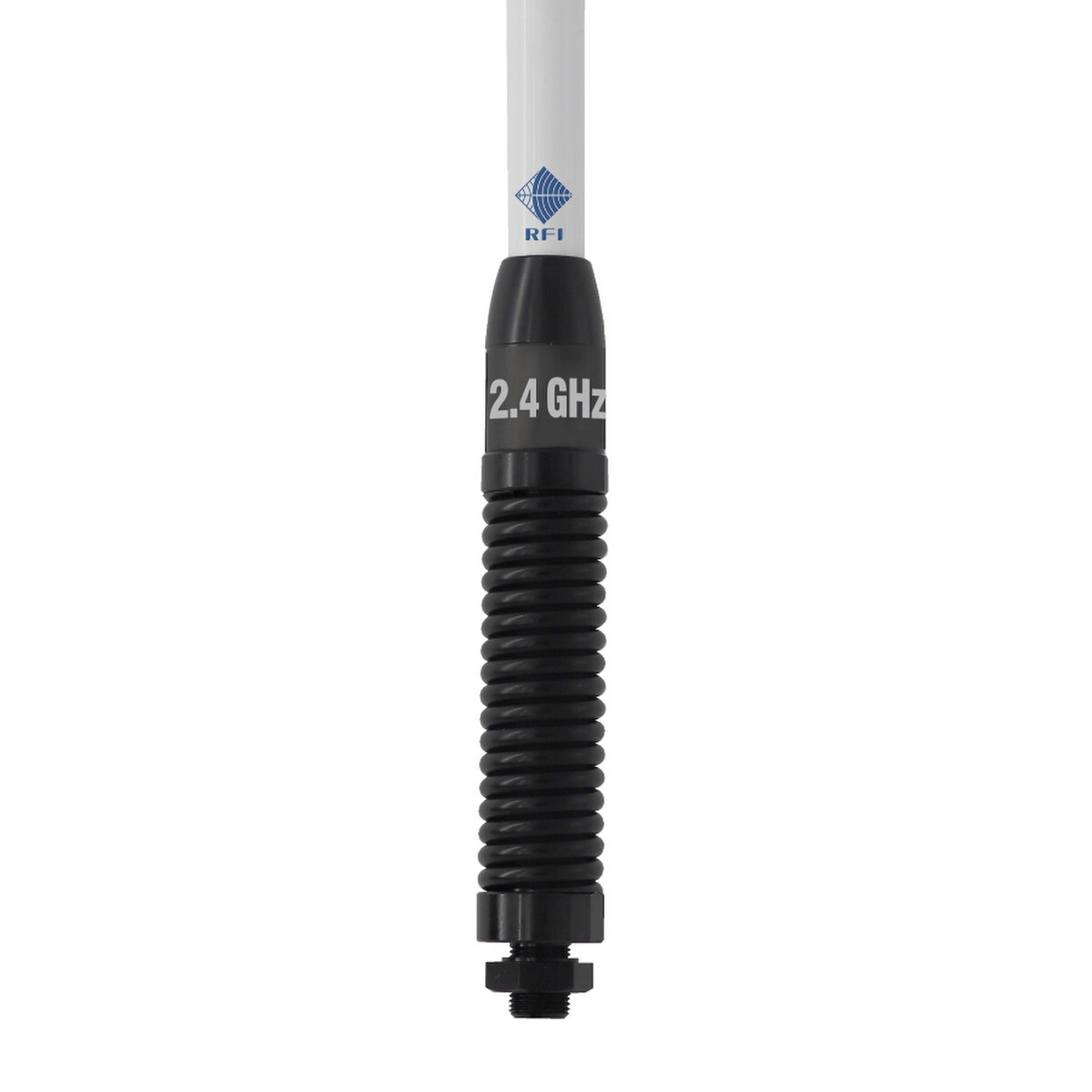

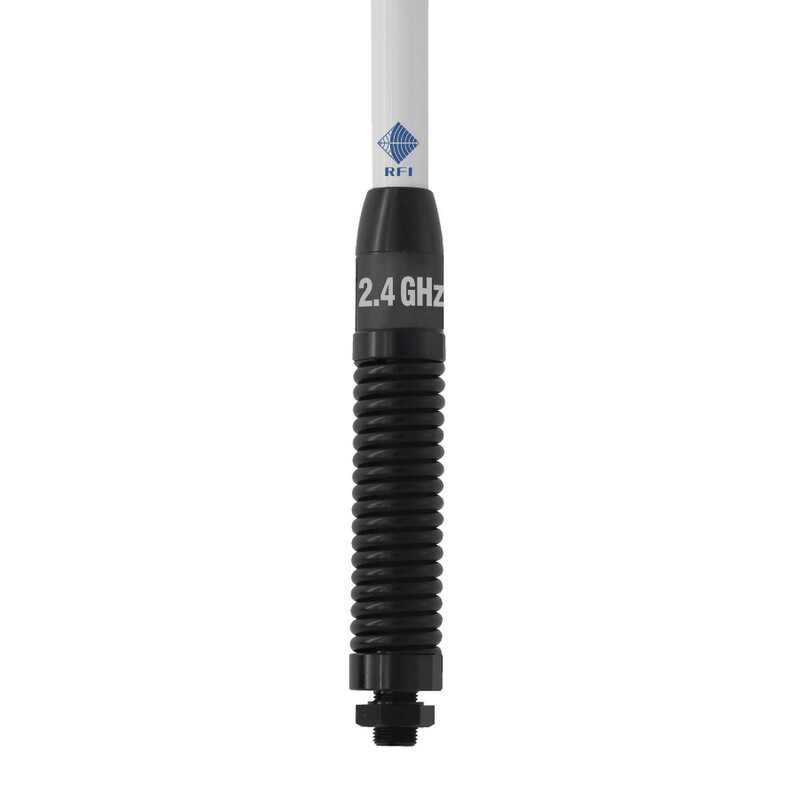

  • Construction: White fibreglass collinear antenna with stainless steel black spring base

  • Cable: 5m Cellfoil 9006

  • Connector: SMA Male

  • Weight: 0.26kg

  • Height: 420 x 16mm

  • Mounting: 13mm stud mount.
