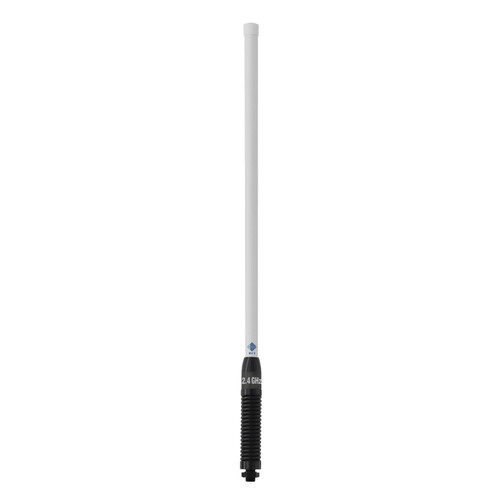

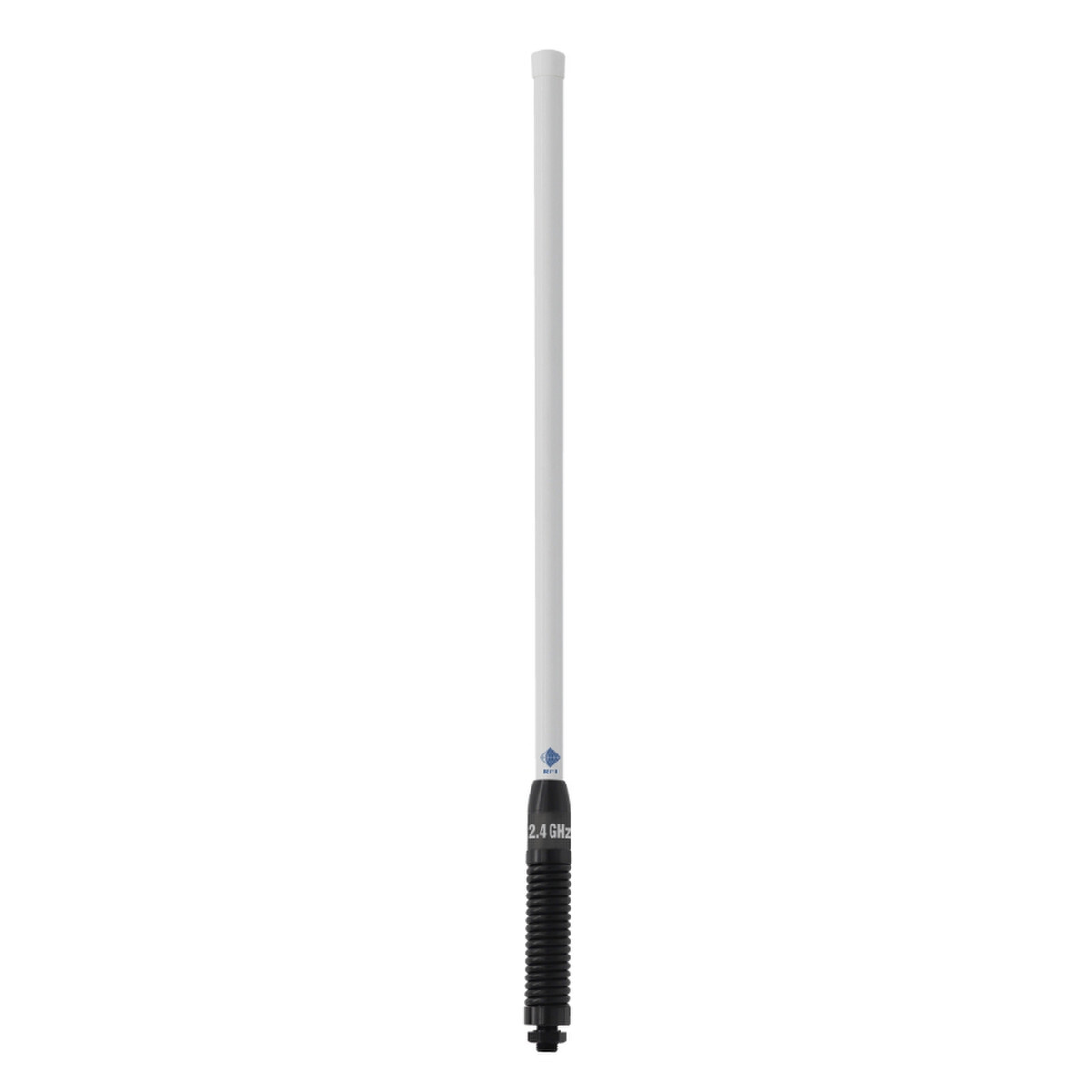

RFI CDM2408 2.4GHz 8dBi WiFi Vehicle Antenna - White Radome/Black Spring
SKU: CDM2408-WB
Spring Mount 8dBi CDM2408 2.4GHz WiFi Antenna
Key Features
-
Full 2.4GHz ISM band - IEEE 802.11b/g/n WiFi, Bluetooth, & other ISM applications
-
Tightly controlled radiation patterns for optimum coverage
-
Small unobtrusive design
-
Stainless steel spring base for vehicle and machinery mounting.
-
White Radome/Black Spring
Usage
-
The CDM2408-WB mobile WiFi antenna has been specifically designed for mobile WLAN applications
-
Utilising a fibreglass radome with a heavy duty stainless steel spring these antennas offer a robust and high performance solution, well suited to mining, warehousing, public transport and emergency services applications
-
This spring mount 2.4GHz ISM band antenna series offers an omnidirectional broadcast pattern enabling optimum network configuration
-
The patented PCB design delivers superior pattern stability across the entire band avoiding inherent pattern tilting common in more traditional collinear designs
-
Their UV stable white fibreglass housings make them the ideal choice in a wide range of industrial spread spectrum applications
-
The standard 13mm stud mount permits a diverse range of mounting applications.
Specifications / Frequency
Network Compatibility |
|
|
---|---|---|
802.11 b/g/n WiFi (2400MHz) |
|
|
ISM & Bluetooth (2400MHz) |
|
|
Electrical Specifications
-
Frequency Range: 2400-2500MHz
-
Input Impedance: 50Ω
-
Input Power: 5W
-
VSWR: <1.5:1
-
Vertical Beamwidth: 16.5°
-
Polarisation: Vertical
-
Radiation: Omnidirectional.
Mechanical/Environmental Specifications
-
Construction: White fibreglass collinear antenna with stainless steel spring base
-
Cable: 5m Cellfoil 9006
-
Connector: SMA Male
-
Weight: 0.27kg
-
Height: 510 x 16mm
-
Mounting: 13mm stud mount.
(CDM2408-WB)
SKU | CDM2408-WB |
Brand | RFI |
Shipping Weight | 1.8000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.550m |
Shipping Cubic | 0.005500000m3 |
