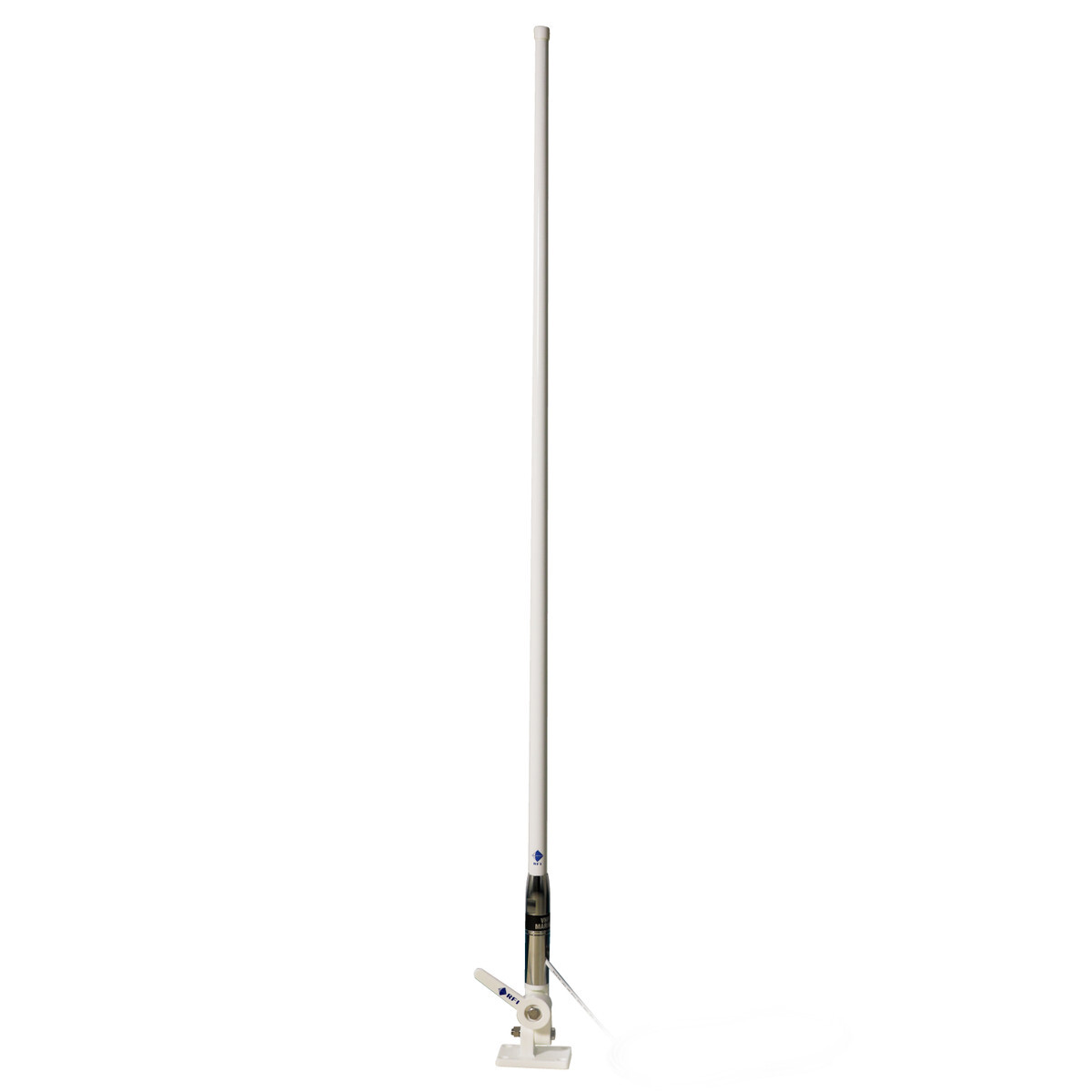

The CDQ29 Series is RFI's first marine VHF collinear antenna covering 156-163 MHz. The antenna is an elevated broad band centre fed dipole making the constructed using highly repeatable via co-planar PCB technology.



The PCB is housed in a robust fibreglass radome using RFI's proven Q-Fit® interface allowing for easy fitment on various marine CDQ bases. It is DC grounded through integral shunt matching for protection from lightning and static build-up.

(CDQ29-156163-95)

Electrical Specifications
Series CDQ29-156163-xx
Frequency Range MHz 156-163
Nominal Gain dBi 3.0
VSWR <1.5:1
Tuned Bandwidth Full
Nominal Impedance Ω 50
Power W

25

Cable - White RG58,5m, FME Female Connector

Mechanical Specifications
Series CDQ29-156163-95
Mounting Q-Fit®
Radome Fibreglass - White
Radome Length mm 1200
Radome Diameter mm 22





SKU CDQ29-156163-95
Brand RFI
Shipping Weight 3.0450kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.990m
Shipping Cubic 0.009900000m3
Unit Of Measure ea
