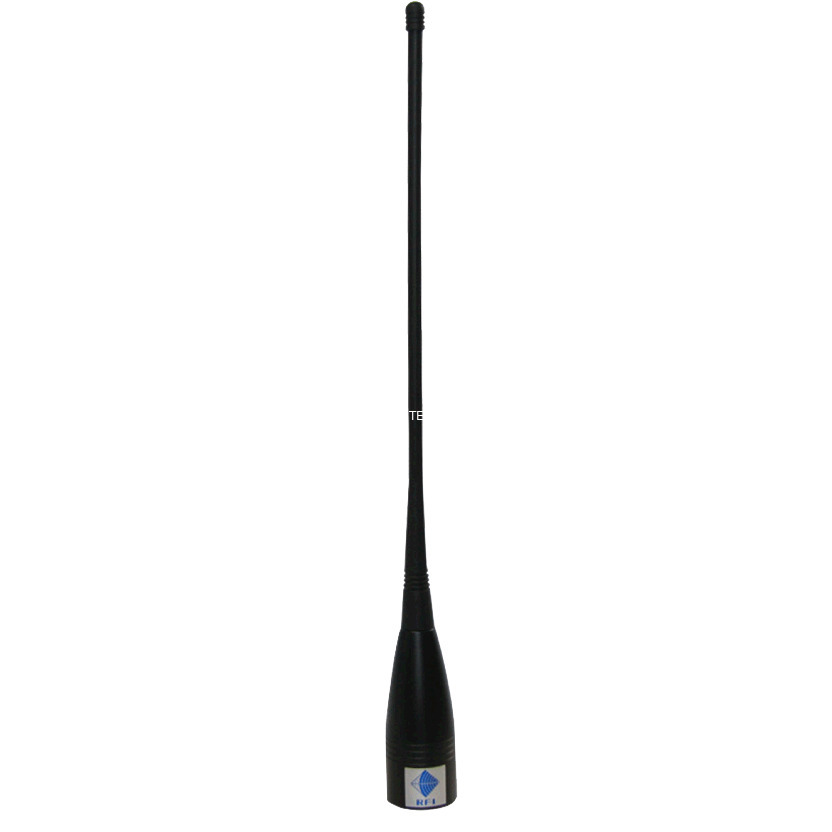

RFI CDQ34-71-00 Q-Fit Flexi Whip



Key Features



  • Suits all Uniden, GME, Oricom, and other major brand radios

  • Incredibly flexible

  • Ultra compact design

  • Quick removable Q-Fit™ whip system

  • The CDQ34-71-00 whip is designed to be used as a short, low gain whip in place of the CDQ5000 or CDQ8000 Q-Fit® whips

  • Being only 345mm long, the CDQ34-71-00 whip is ideal for use in urban environments, when a longer high gain whip is not required or where low clearances are an issue

  • The CDQ34-71-00 can also be used in extremely rugged situations where overhanging branches could damage longer high gain antennas, whilst still providing good radio coverage and the convenience to switch back to a high gain whip for longer range communications

  • The quick removable Q-Fit™ whip system is designed for fast and simple removal when entering low height areas, car washes or for antenna security

  • When travelling through different terrain, the removable antenna can be swapped over to a larger or smaller size and gain, ensuring the best performance in all geographic areas.



Usage



  • This rugged & extremely robust antenna is ideally suited to 4WD bullbar mounting

  • With a 13mm stud mount and ground plane independant design, this antenna may be installed onto a number of mounting brackets such as mirror mounts, bull bar mounts, gutter mounts or fender mounts

  • Ideal for installing in commercial vehicles, four wheel drives and trucks.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 476-477MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 33 degrees

  • Maximum Power: 25Watts.



Mechanical/Environmental Specifications



  • Construction: Black polyurethane moulded stainless steel

  • Cable: none

  • Connector: Integrated N Male (for Q-Fit base)

  • Length: 265mm

  • Weight: 0.1kg.



Read More





RFI wireless logo

(CDQ34-71-00)

SKU CDQ34-71-00
Brand RFI
Shipping Weight 1.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.450m
Shipping Cubic 0.004500000m3
