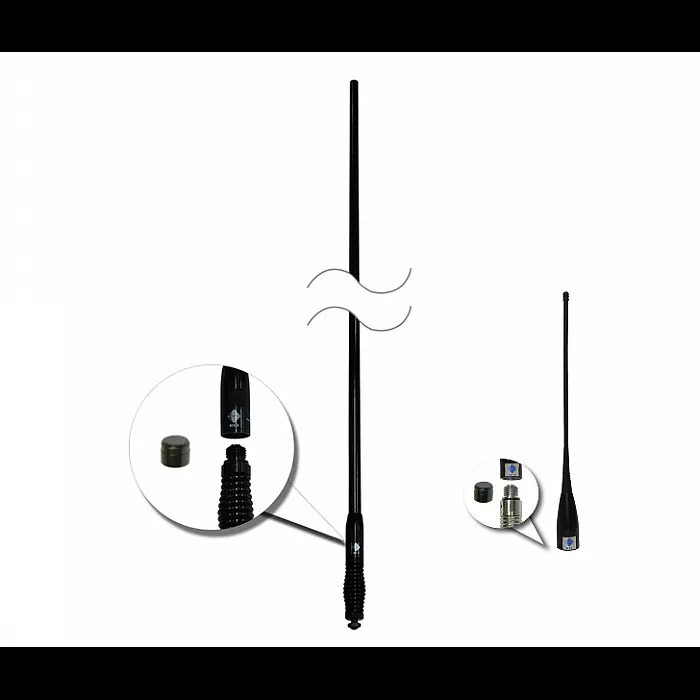

RFI CDQ5000 + CDQ34 BLACK RUGGED 5DBI UHF CB DUAL ANTENNA PACKAGE



The RFI CDQ5000 + CDQ34 UHF CB antenna employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.

With a heavy duty Black steel spring, the CDQ5000 UHF CB antenna can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Features:
- 5M Coaxial Cable
- 5 dBi gain
- Q-Fit™ removable whip system
- Ground Independent
- Additonal CDQ34 small whip included



12 Month Warranty

Band UHF CB
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5
Tuning Supplied pre-tuned
Power W 25
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Suggested Installation Bullbar
Radome Diameter mm 22.5 - 15.6
Packaging Clear hanging bag
VSWR <1.5:1
Length mm 1010
Mounting Threaded Stud

(CDQ5000-CDQ34)

SKU CDQ5000-CDQ34
Brand RFI
Shipping Weight 1.8000kg
Shipping Width 0.050m
Shipping Height 0.030m
Shipping Length 1.100m
Shipping Cubic 0.001650000m3
