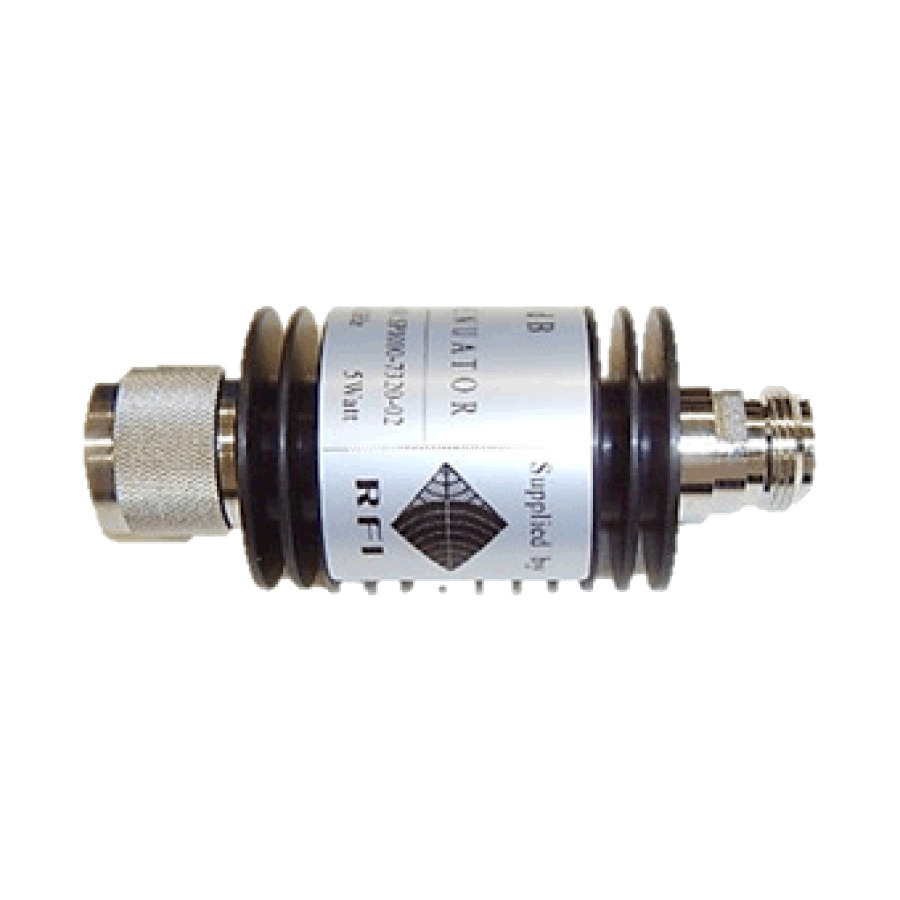

RFI Coaxial Attenuator - N M/F, 5 W, 30 dB

Key Features

• 5 Watt power rating

• N Male to N Female connectors

• DC to 2.5 GHz frequency range

• Excellent Return Loss / VSWR across full DC to 2.5 GHz bandwidth.

Usage

• RF attenuators are designed as general purpose attenuators to reduce signals to required levels

• They are typically used in applications such as on the input of preamplifiers, test equipment, or as part of systems designs (such as bi-directional amplifiers) to prevent overload, control gain or to otherwise maintain signals levels within desired limits

• This RFI 50 Ohm RF Coaxial In-Line Attenuator is used primarily in RF multicoupling and bench test and measurement applications, it has excellent return loss and temperature tolerances making it reliable and useful in most applications

• It is air cooled through natural convection with conservative power to heatsink surface area power density factors.
