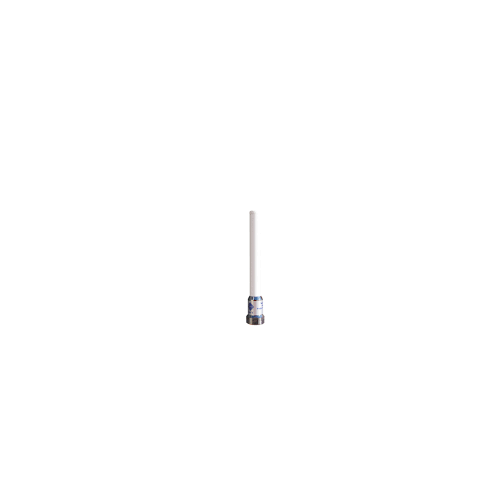

RFI COL2402 2dBi 2.4GHz Stud Mounted Antenna



Key Features



  • Full 2.4GHz ISM band - IEEE 802.11b/g/n WiFi, Bluetooth, & other ISM applications

  • Tightly controlled radiation patterns for optimum coverage

  • Small unobtrusive design

  • Supplied with pole mounting bracket.



Usage



  • This stud mount 2.4 GHz ISM band antenna series offers an omnidirectional broadcast pattern enabling optimum network configuration

  • The patented PCB design delivers superior pattern stability across the entire band avoiding inherent pattern tilting common in more traditional collinear designs

  • These antennas meet the exacting performance criteria for spread spectrum operation, including those of the IEEE802.11 wireless standard

  • This range of rugged, collinear antennas offers an omni pattern, with gains ranging from 2 to 10dBi, enabling optimum network configuration

  • Their UV stable white fibreglass housings make them the ideal choice in a wide range of industrial spread spectrum applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n WiFi (2400MHz)
compatible
2dBi
ISM & Bluetooth (2400MHz)
compatible
2dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB RL)

  • Vertical Beamwidth: 81°

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Input Power (Max): 25W



Mechanical/Environmental Specifications



  • Construction: White fibreglass collinear antenna with stainless steel mounting tube

  • Cable: 200mm of Cellfoil 9006

  • Connector: N Female

  • Weight: 0.15kg

  • Dimensions: 170mm

  • Mounting: Stud mount, L-bracket provided



Read More





RFI wireless logo

(COL2402)

SKU COL2402
Brand RFI
Shipping Weight 0.3900kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.180m
Shipping Cubic 0.000882000m3
