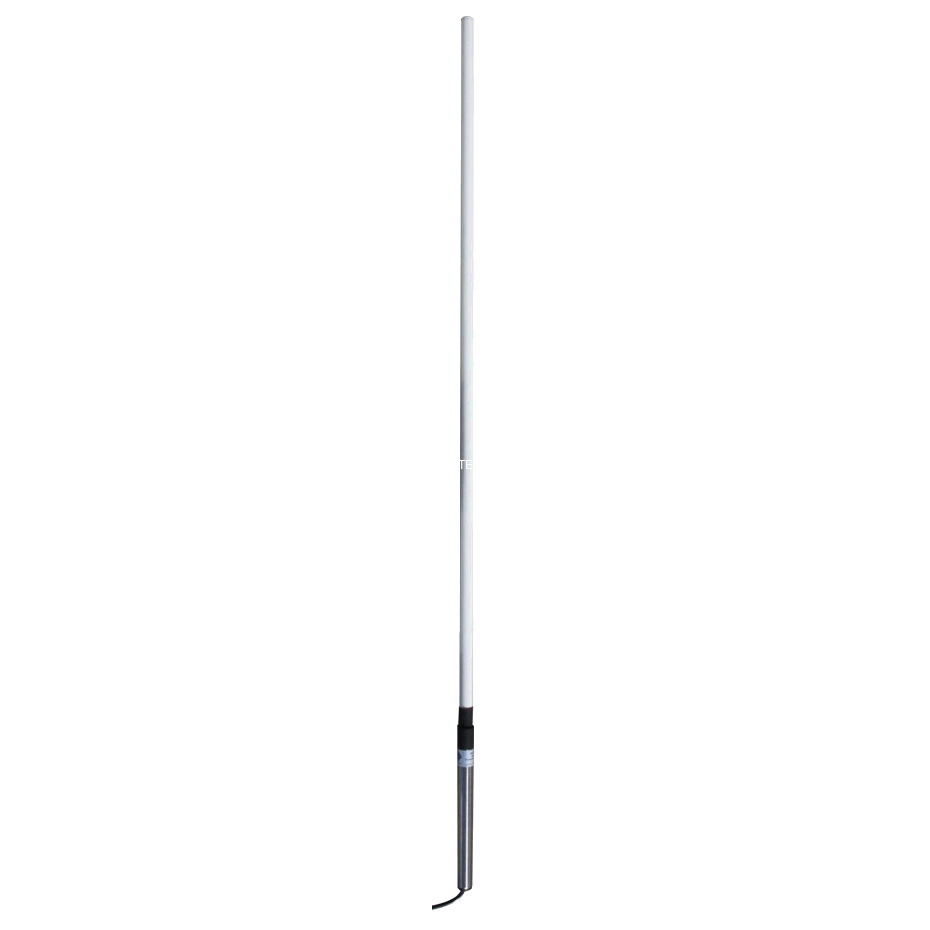

RFI COL2410 10dBi 2.4GHz Pole Mounted Antenna



Key Features



  • Full 2.4GHz ISM band - IEEE 802.11b/g/n WiFi, Bluetooth, & other ISM applications

  • Tightly controlled radiation patterns for optimum coverage

  • Collinear pole/mast mount design.

  • Supplied with hose clamp brackets.



Usage



  • This mastmount 2.4 GHz ISM band antenna offers a 8 dBi omni pattern enabling optimum network configuration

  • The patented PCB design delivers superior pattern stability across the entire band avoiding inherent pattern tilting common in more traditional collinear designs

  • It is supplied with a stainless steel mount tube and 2 x stainless steel hose clamps

  • These antennas meet the exacting performance criteria for spread spectrum operation, including those of the IEEE802.11 wireless standard

  • This range of rugged, collinear antennas offers an omni pattern, with gains ranging from 2 to 10dBi, enabling optimum network configuration

  • Their UV stable white fibreglass housings make them the ideal choice in a wide range of industrial spread spectrum applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n WiFi (2400MHz)
compatible
10dBi
ISM & Bluetooth (2400MHz)
compatible
10dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB RL)

  • Vertical Beamwidth: 8°

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Input Power (Max): 25W



Mechanical/Environmental Specifications



  • Construction: White fibreglass collinear antenna with stainless steel mounting tube

  • Cable: 500mm of Cellfoil 9006

  • Connector: N Female

  • Weight: 0.25kg

  • Dimensions: 1095mm

  • Mounting: Via Parallel Pole Bracket - Hose Clamps Supplied



Read More





RFI wireless logo

(COL2410)

SKU COL2410
Brand RFI
Shipping Weight 1.2000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 1.200m
Shipping Cubic 0.012000000m3
