RFI COL806 8dBi Carrier Class BTS/Broadcast Antenna



Key Features



  • Broadcast/base station quality

  • Integrated N Female connector

  • Full brass radiator design

  • 100% Australian made.



Usage



  • This is the ideal antenna for broadcast, remote telemetry and mobile/semi-mobile machinery

  • Outside of base station broadcast, COL806 antennas are almost exclusively deployed in mining and other heavy industrial applications due to their extremely heavy duty design

  • Unlike some base station antennas which have lossy coaxial cable, this antenna has an integrated N Female connector in its base, allowing for direct attachment of low loss feeder/riser cables

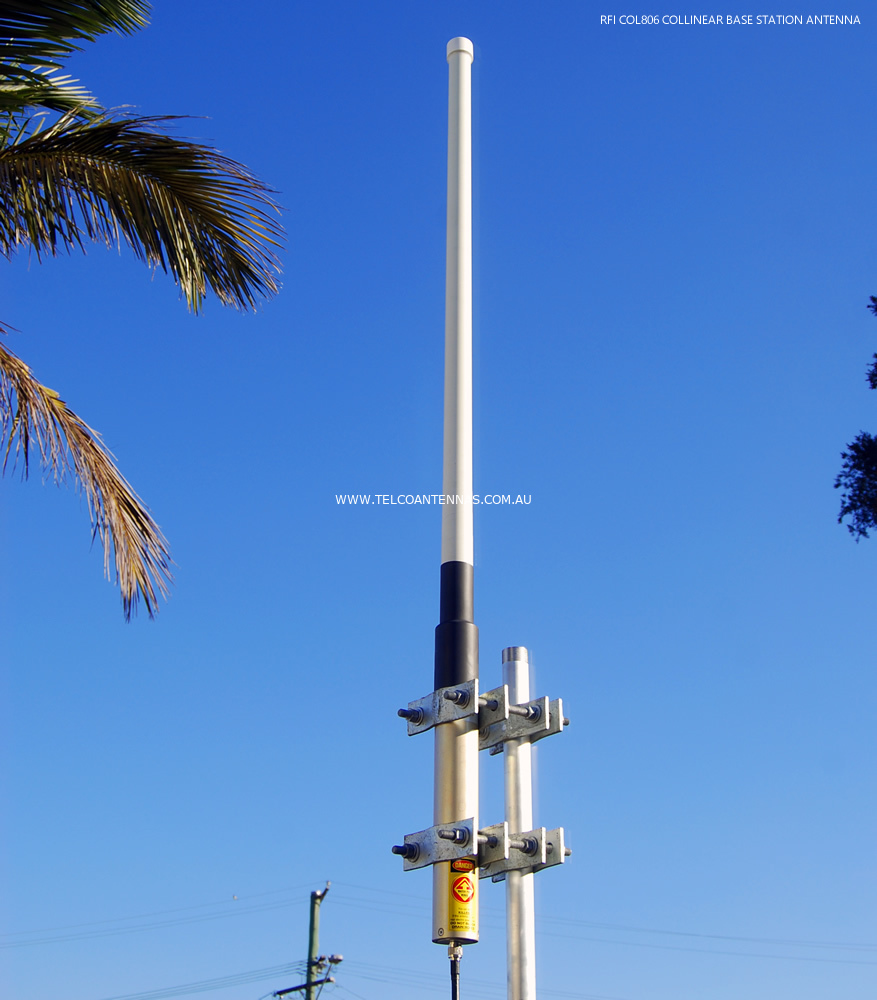

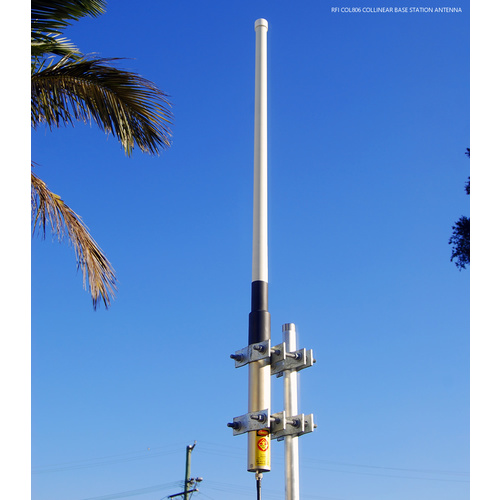

  • Designed specifically for mast mounting, the antenna's ultra heavy duty mounting tube can be mounted using two parallel UC-1 clamps (not supplied)

  • The COL806 Series are high gain base station collinear antennas built to the highest specifications

  • These antennas were engineered to minimise intermodulation and utilise a superior matching technique, integrating the coaxial connector directly into a precision brass feedline section

  • Better control in the feedline section delivers higher efficiencies and superior bandwidth

  • The gain is stable and predictable with well defined major lobes across the entire band

  • As tilt in vertical collinears varies with frequency, the COL806 patterns are controlled to deliver defined tilt and gain over their rated bandwidths

  • The COL806 series are built with white, super thick walled radomes and heavy duty alodined aluminium mounting tubes

  • Strong power ratings make these collinears well suited to single or combined Tx applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
6.2dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map.
compatible
6.2dBi



Electrical Specifications



  • Frequency Range: 820-896MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB RL)

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Vertical Beamwidth: 16°

  • Maximum Power: 500Watts



Mechanical/Environmental Specifications



  • Construction: Ruggedised white fibreglass radome, brass radiating elements, aluminium mounting tube

  • Cable: none

  • Connector: Integrated N Female connector

  • Length: 1700mm

  • Weight: 3.8kg





Connection





N Flange panel mount connector





N Female Connector [pictured]





This antenna has an integrated N Female connector at th ebase of the mounting tube. There is no cable supplied.
