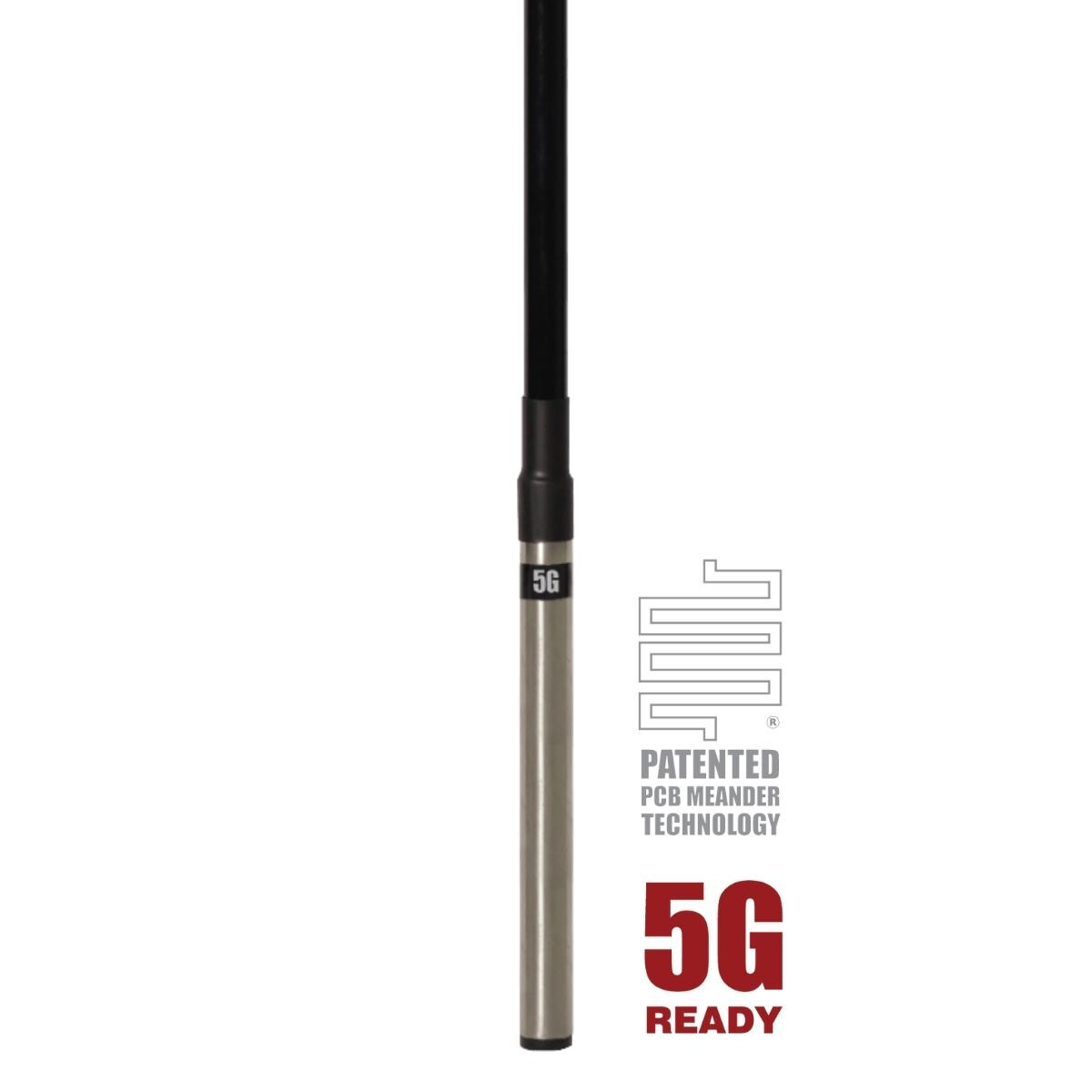

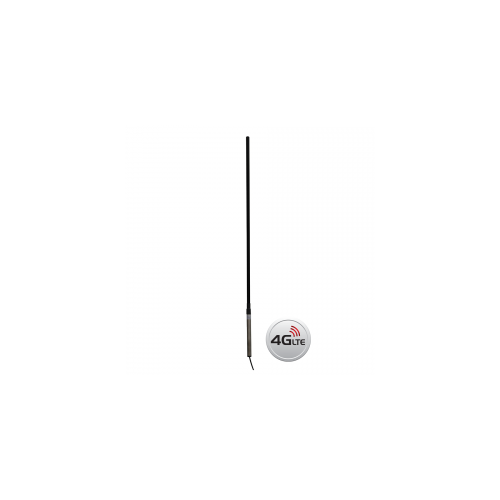

RFI COL8199 8.5dBi Pole Mounted Collinear Antenna

Key Features

• Patented PCB based collinear design, offering the ultimate in pattern and gain stability

• Ideal for new 5G/LTE networks with true multi-band coverage.

• High gain across 4GX/4G+ band suiting fringe and rural applications.

Usage

• With a 200mm (x19mm) stainless steel mounting tube, the COL 8100 Series is designed to be mounted to a vertical support structure using the two stainless steel hose clamps supplied, which have an adjustment of 27-51mm

• The COL8199 is a high performance base station antenna specifically for semi-mobile structures, marine applications and vehicles where a directional antenna cannot be used

• Capable of receiving from all directions, this antenna can be installed by technicians with no prior telecommunications or radio experience

• With an extremely lightweight and low wind-load design, the COL8199 can be mounted on tall or light structures without concern for bird-roosting, ice load, etc.

• Collinear antennas are suited to mobile or temporary site structures and machinery where on-site technicians are not available to accurately install directional antennas

• In marine applications, the COL8199 can easily be attched to a rail or to a targa with the stainless steel hose clamps supplied

• The antenna is 1.8m tall, 3G and 4G enabled, with a signal angle of 9 degrees, perfect for the marine environment

• Supplied with 10m RG-58 cabling, 2x stainless steel hose clamps, Terminated SMA Male

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		8.5dBi
Optus 4G+ (700MHz)		8.5dBi
Telstra Next-G™ (850MHz)		8.5dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		8.5dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		8.5dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		8.5dBi
Telstra/Optus/Voda 4G (1800MHz)		4.5dBi
All Carriers - Urban/Metro 3G (2100MHz)		4.5dBi
Optus 4G TDD (2300MHz)		5.5dBi
Telstra 4GX (2600MHz)		5.5dBi
All Carriers 5G (3500MHz)		6.5dBi

Electrical Specifications

• Frequency Range: 698-960 / 1710-2170 / 2300-2700 / 3400-3800MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

• Vertical Beamwidth: 10° / 30° / 20° / 15°

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Fibreglass radome, PCB radiator

• Cable: 10m 9006 (RG58) low loss cable

• Connector: SMA Male

• Length: 173cm

• Weight: 0.622kg

• Wind Gust Rating: 240km/hr

Connection

• This antenna has a 10m cable that terminates with an SMA Male connector

• If you would like a shorter length of cable, or a different connector please contact us so we can customise this antenna for you

A heads up!

• Special Delivery Information: This product is over 1100mm long and can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box.

• Please provide an address where someone will be present to sign for the package.
