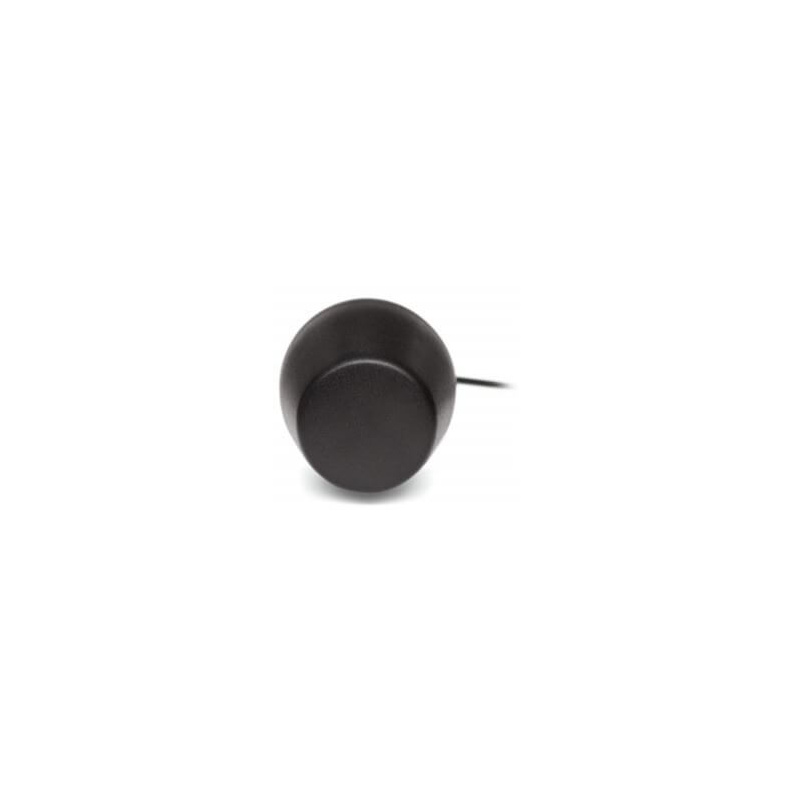

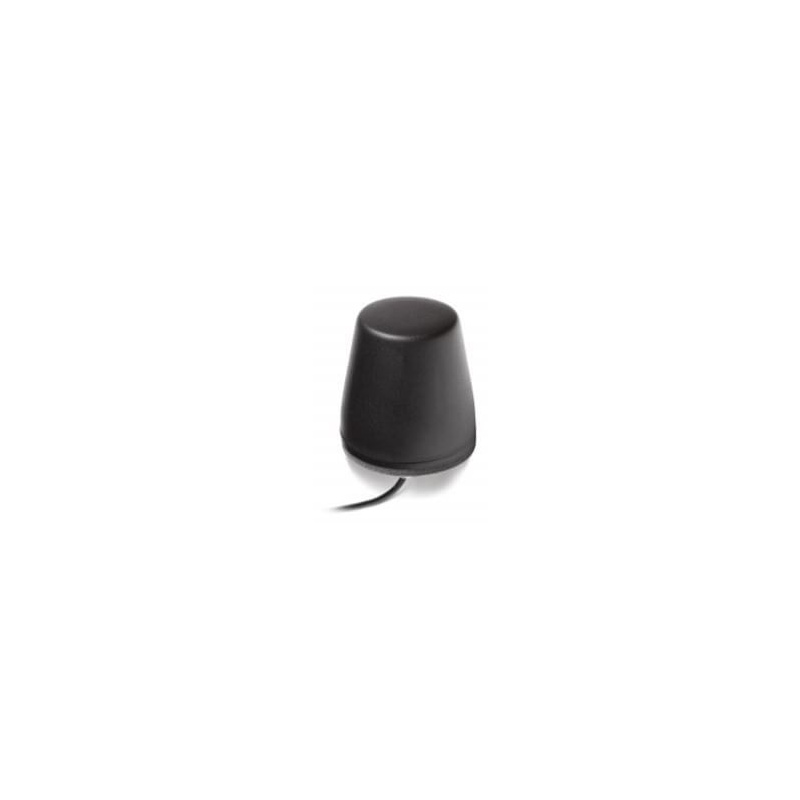

RFI CSM550 Ultra Low Profile 3G+4G+5 M2M Antenna -  617-5925 MHz

Key Features

• Covers all 3G, 4G & 5G

• Screw mount with anti-rotation mechanism

• Ground plane independent

• Ultra-compact design: Ø 50 x 50.8 mm

• Weatherproof IP69 Design

Usage

• The CSM550 is an ultra-compact omni-directional 5GNR antenna that provides excellent coverage for mobile and fixed data applications from 617 MHz to 5.925 MHz.

• The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications.

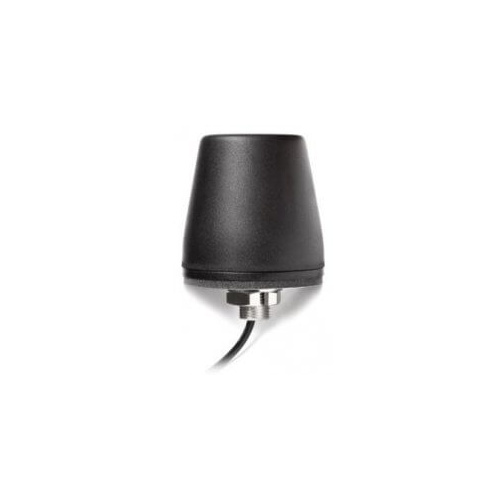

• The CSM550 is fitted with a 11.9mm stud mount incorporating an integrated double-sided foam seal and is IP69 rated.

• You'll see this type of antenna often mounted on ATMs, vending machines, transit stations, and a wide range of other M2M applications.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2.9dBi
Optus 4G+ (700MHz)		2.9dBi
Telstra Next-G™ (850MHz)		2.9dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		2.9dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2.9dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2.9dBi
Telstra/Optus/Vodafone 4G (1800MHz)		2.1dBi
All carriers - Urban/Metro 3G (2100MHz)		2.1dBi
Optus 4G (2300MHz)		2.1dBi
802.11 b/g/n WiFi (2400MHz)		2.1dBi
Telstra Metro 4GX (2600MHz)		2.1dBi
Optus Metro 4G+ (2600MHz)		2.1dBi
Telstra/Optus 5G (n78 3600MHz)		0.5dBi
WiFi AC (5GHz)		-1dBi

Electrical Specifications

• Frequency Range: 617-960MHz / 1427-2690MHz / 3300-5000MHz / 5150-5925MHz

• Input Impedance: 50Ω

• VSWR: <2.3:1 / <2.1:1 / <2.0:1 / <1.6:1

• Radiation: Omnidirectional

Mechanical/Environmental Specifications.

• Construction: Black polycarbonate radome

• Cable: LL100 Cable

• Length: 1.5m / 5m

• Weight: 0.17kg

• Mounting: 16mm Stud Mount (cable egress through stud)

• Dimensions: 50.8mm (H) 50mm (Diameter)
