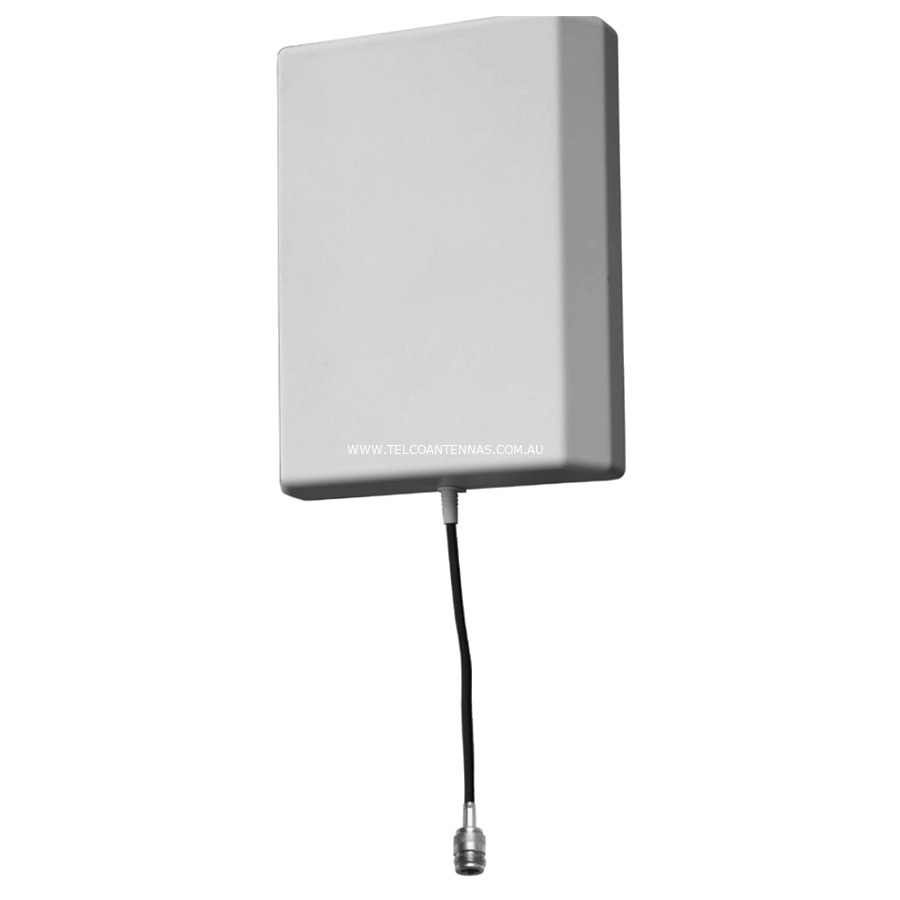

RFI DAS PIM Rated Panel Antenna

Key Features

• Single port for Cel-Fi GO amplifier

• Full 700 to 3800MHz band coverage

• PIM Rated -140 dBc

• Wall mounted.

• 300mm tail terminated with N female connector

Usage

• Ideal wall mounted antenna for multi-storey or multiple room coverage

• The DAS6938-SDP150-N antenna is a high performance, PIM rated multi-band directional panel antenna, covering 689-960MHz & 1710-3800MHz (LTE)

• The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		5 dBi
Optus 4G+ (700 MHz)		5 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		5 dBi
Telstra Next-G™ (850 MHz)		5 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		5 dBi
Optus Regional 3G (900 MHz)		5 dBi
Vodafone Regional 3G (900 MHz)		5 dBi
Telstra/Optus/Voda 4G (1800 MHz)		6 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		6 dBi
LTE Bands 1, 33, 34 (2100 MHz)		6 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		6 dBi
Optus 4G TDD (2300 MHz)		7 dBi
LTE-TDD Bands 40 (2300 MHz)		6 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		6 dBi
LTE Band 41 (2500 MHz)		6 dBi
LTE Bands 7, 38 (2600 MHz)		6 dBi
Telstra 4GX Band 7 (2600 MHz)		6 dBi
5G Band N78 (3600MHz)		7 dBi

Electrical Specifications

• Frequency Range: 698 to 960 MHz / 1710 to 2700 MHz / 3200-3800MHz

• Input Impedance: 50 Ω

• VSWR: <1.8:1 / <1.5:1 / <1.8:1

• Front-to-Back Ratio: 10 dB / 20dB

• Polarisation: Vertical

• Linear Vertical Beamwidth: See Specification Sheet

• Radiation: Omnidirectional

• Maximum Power: 50 Watts

• PIM (3rd Order): -140 dBc.

Mechanical/Environmental Specifications

• Construction: White ABS radome

• Cable: 300 mm RG142

• Input Connector: 1x Integrated N Female

• Temperature: -40 °C to +60 °C

• Weight: 0.3 kg

• Dimensions: 206 x 175 x 41 mm (H x W x D)

• Mounting: Wall

Read More

• Specification Sheet
