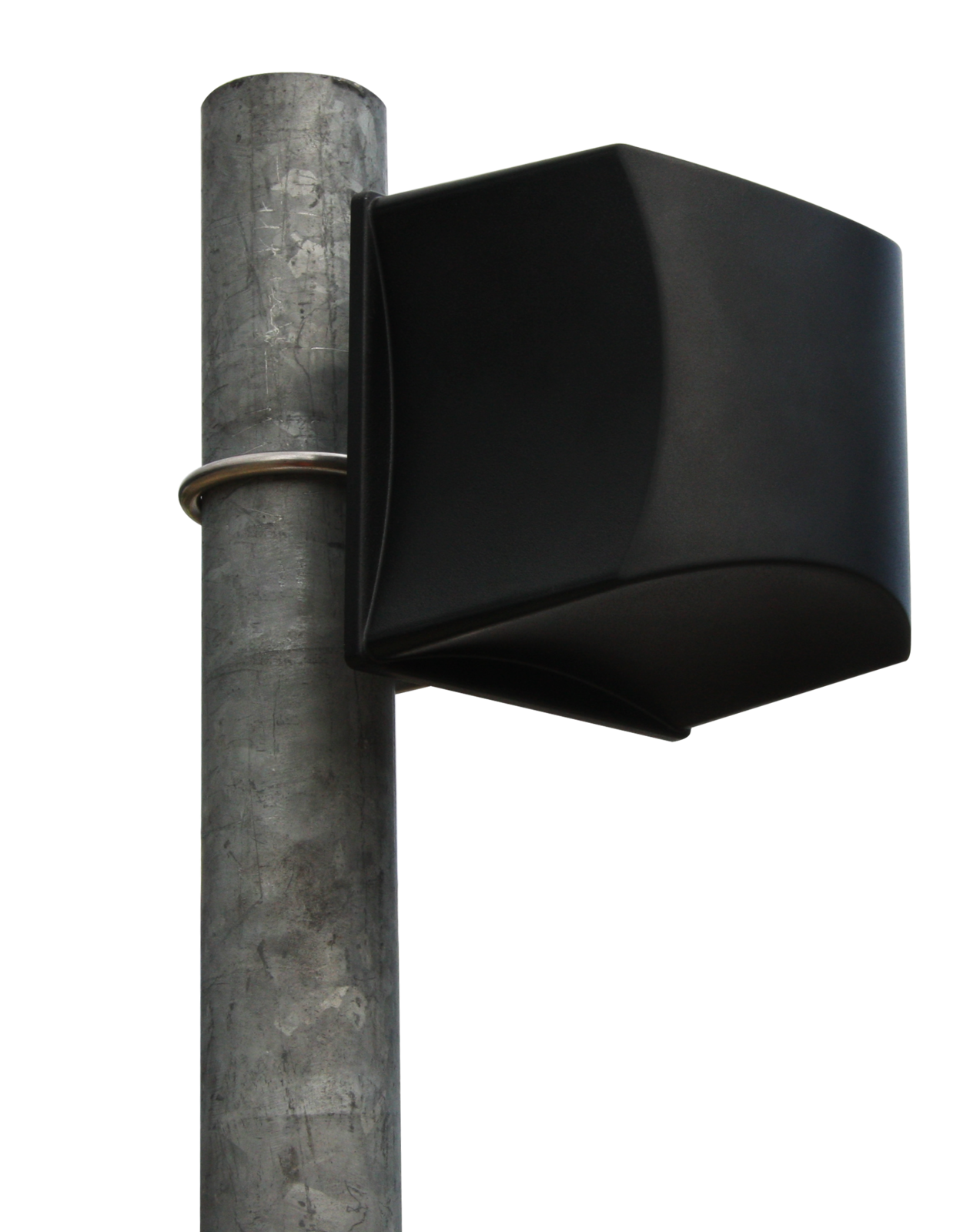

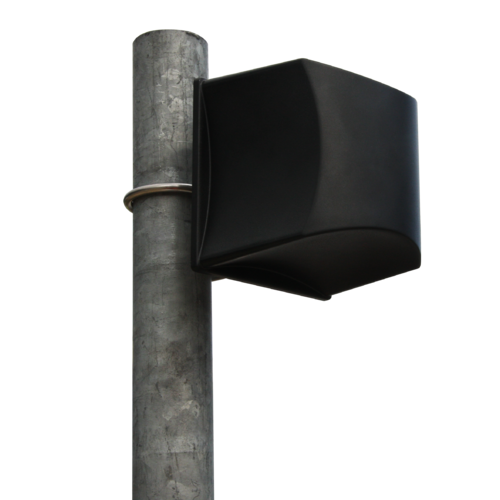

RFI Dual Band WiFi Mini Panel Antenna



Key Features



  • 12dBi opeak gain on 2.4GHz

  • 12dBi peak gain on 5.8GHz

  • Specially designed for dual band MIMO applications

  • Compact radome

  • Rugged construction

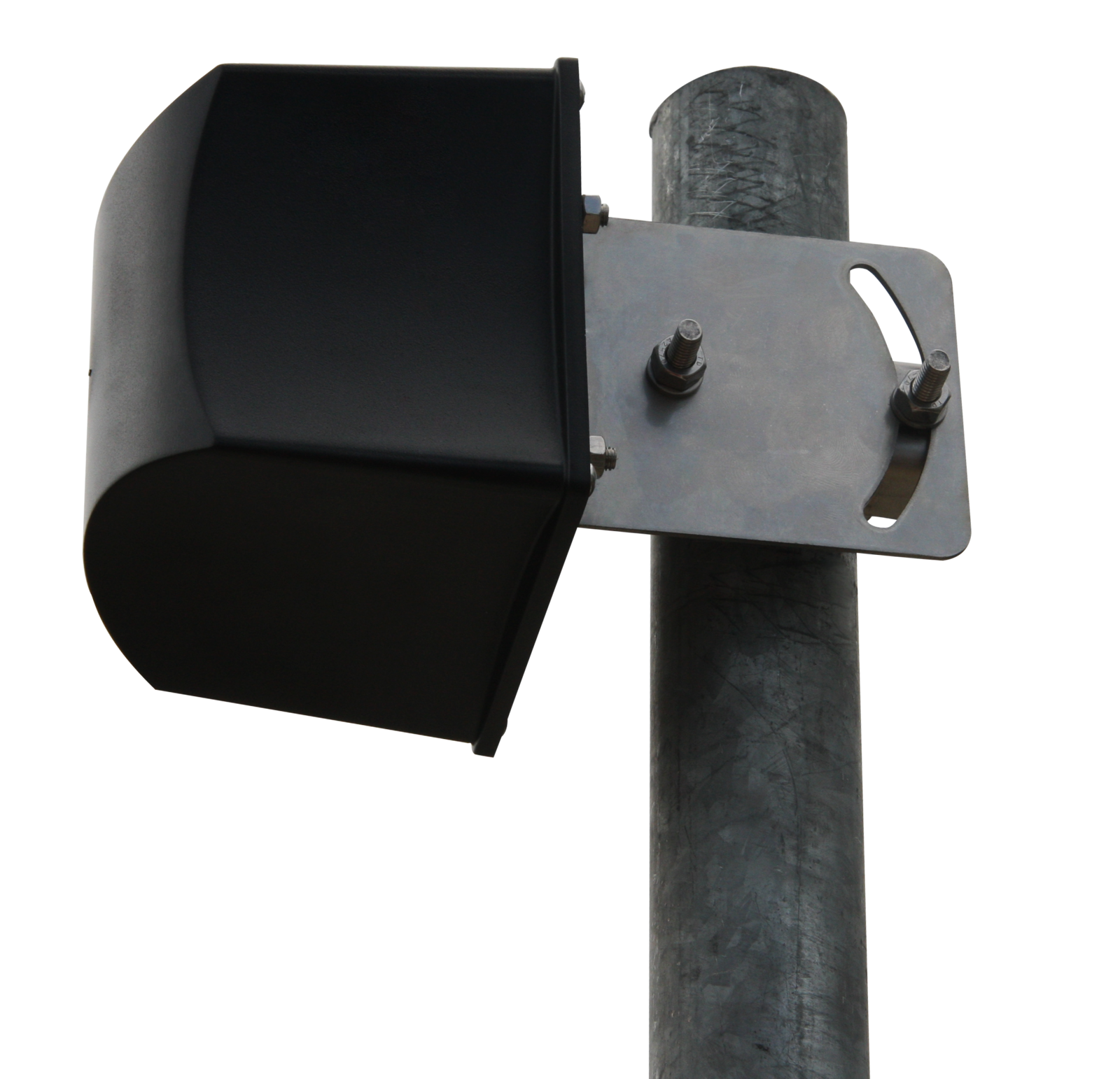

  • Adjustable pole mount bracket (45mm max. / 23mm min.)



Usage



  • RFI PA-WIFI-N is a 2.4 GHz and 5.8 GHz dual band antenna

  • This incredible antenna covers the full 2.3-2.7 GHz and 5.15-5.875 GHz frequency bands in a single antenna radome



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400MHz)
compatible
<12dBi
802.11 a/n/ac WiFi (5800MHz)
compatible
<12dBi



Electrical Specifications



  • Frequency Range: 2.3 to 2.7 GHz / 5.15 to 5.8 GHz

  • Gain: <12 dBi

  • VSWR: <3:0:1

  • Input power max: 25 Watts

  • Input Impedance: 50Ω

  • Horizontal Beamwidth: 40°

  • Elevation Beamwidth: 40°



Mechanical/Environmental Specifications



  • Base: Stainless Steel

  • Radome: UV Protected ABS

  • Dimensions: 104 x 104 x 174 mm (H x W x D)

  • Weight: 0.454kg

  • Connector: N-Type Female

  • Operating Temperature Range: -40°C to +65°C

  • Water Proofing: IP-65



Read More







(PA-WIFI-N)

SKU PA-WIFI-N
Brand RFI
Shipping Weight 0.5000kg
Shipping Width 0.120m
Shipping Height 0.200m
Shipping Length 0.120m
Shipping Cubic 0.002880000m3
