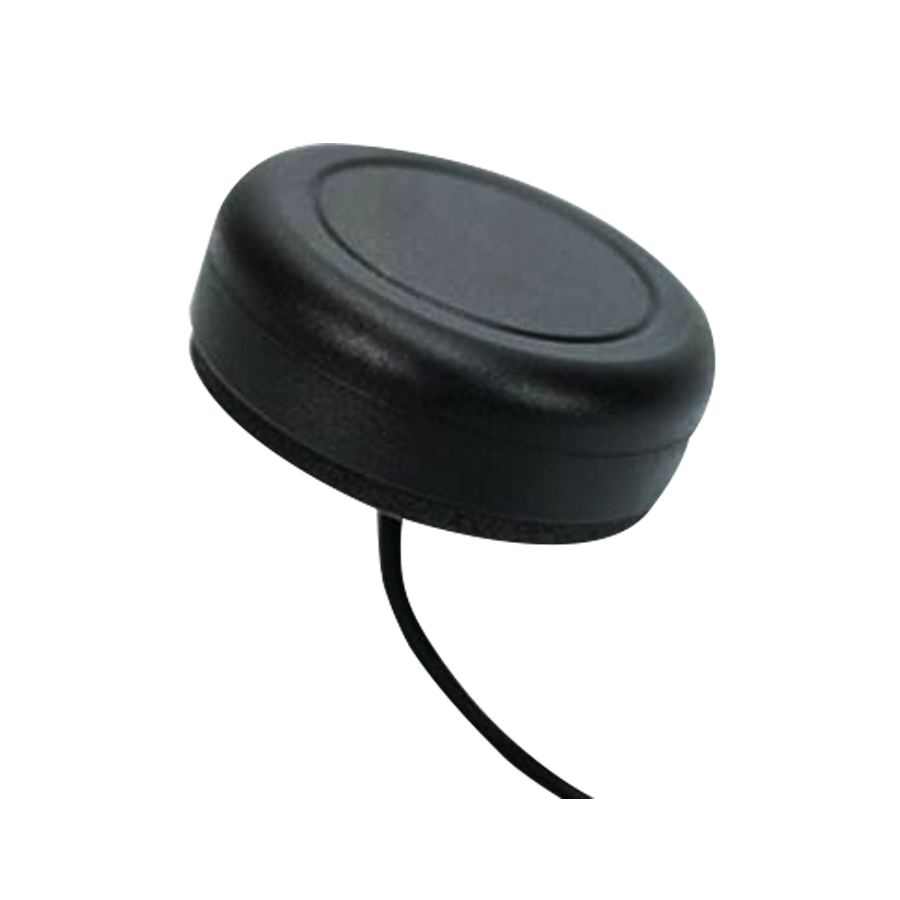

RFI GPS/GLONASS Mini Hockey Puck Antenna - 7m RG174 / SMA male



Key Features



  • Supports GPS and GLONASS

  • Ideally suited for Telematics

  • Indoor and outdoor usage = IP69K rating

  • Low profile design.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
GPS (1575.42MHz)
compatible

32dB (ACTIVE)

GLONASS (1592-1610MHz)
compatible
32dB (ACTIVE)



Electrical Specifications



  • Frequency Range: 1575.42 (GPS) & 1592-1610 (GLONASS)

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Radiation: Omnidirectional

  • Voltage supply: 1.8 - 5V

  • Current: 5 - 25mA

  • Power: 138mV (max)



Mechanical/Environmental Specifications



  • Construction: Black ABS

  • Cable: 7M RG174 type cable

  • Connector: SMA Male / SMC Male

  • Mounting - M10 Stud and Nut



Read more





(GPS3-MHP-7M)

SKU GPS3-MHP-7M
Brand RFI
Shipping Weight 1.0000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002250000m3
