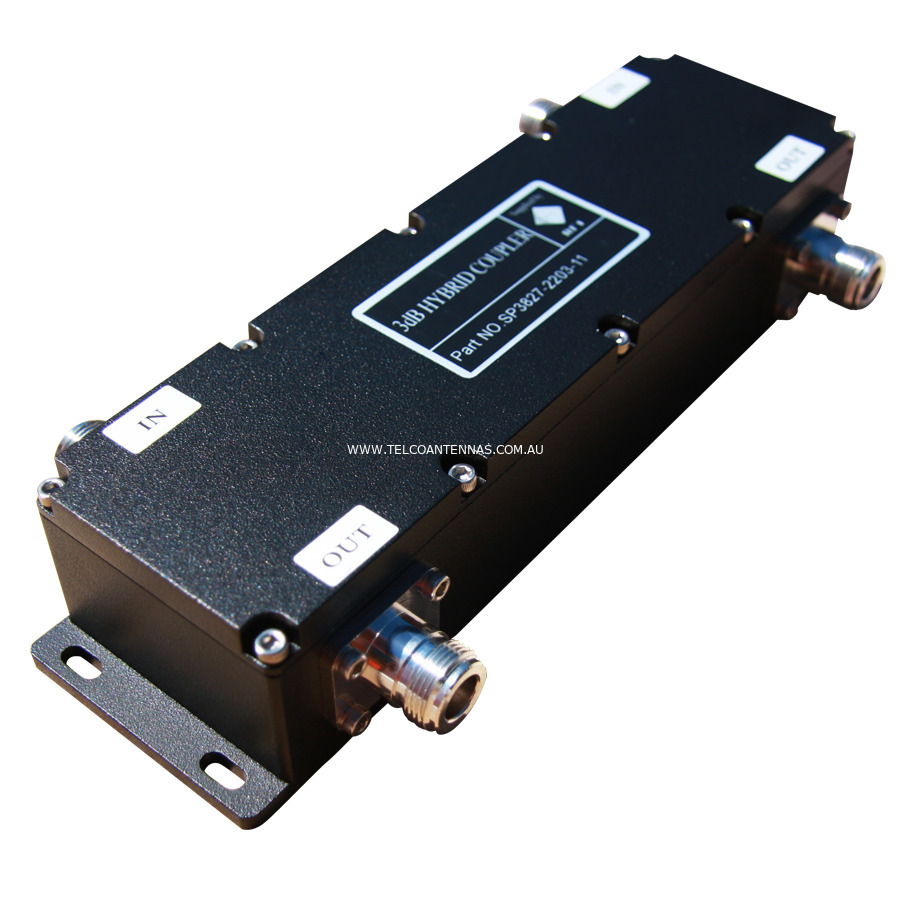

RFI Hybrid Coupler 4-Port - 380-2700MHz



Key Features



  • Broadband 380-2700MHz covering UHF and cellular bands

  • Low insertion loss

  • High isolation (Ports 1 & 2) across full bandwidth >23dB

  • Environmental IP 65 rating

  • Manufactured to a low PIM < -150dBc.



Usage



  • The 4-Port 3dB Hybrid Coupler covers UHF PMR and cellular bands from 380-2700MHz with a low passive inter-modulation, high peak instantaneous power and high environmental IP rating

  • Typically used to combine in-band carriers or carriers across multiple bands to be fed into antenna feeders or in-building leaky feeder or in-building Distributed Antenna Systems (DAS)

  • Designed to IP65, the Hybrid Coupler can be used in both indoor and outdoor applications.



Specifications / Frequency



Electrical Specifications



  • Frequency: 380-2700MHz

  • Nominal Impedance: 50 Ω

  • Coupling (Ports 3 & 4): 3.1 dB ± 0.8 dB

  • Return loss: >18 dB

  • Isolation (Ports 1 & 2): >23 dB

  • Average Power: 200

  • Watts PIM IMD (3rd 2x 43 dBm): < -150 dBc



Environmental/Mechanical Specifications



  • Construction: Black painted aluminium

  • Connectors: 4x N Female

  • Operating temperature: -40 °C to +60 °C

  • Dimensions: 216.05 x 56.8 x 41.5 mm (L x W x H) (excludes bracket & connectors)

  • Mounting: 4 x 4.0 mm / 1/8” slots on mounting flange

  • Weight: 1.18 kg

  • Environmental Protection: IP65
