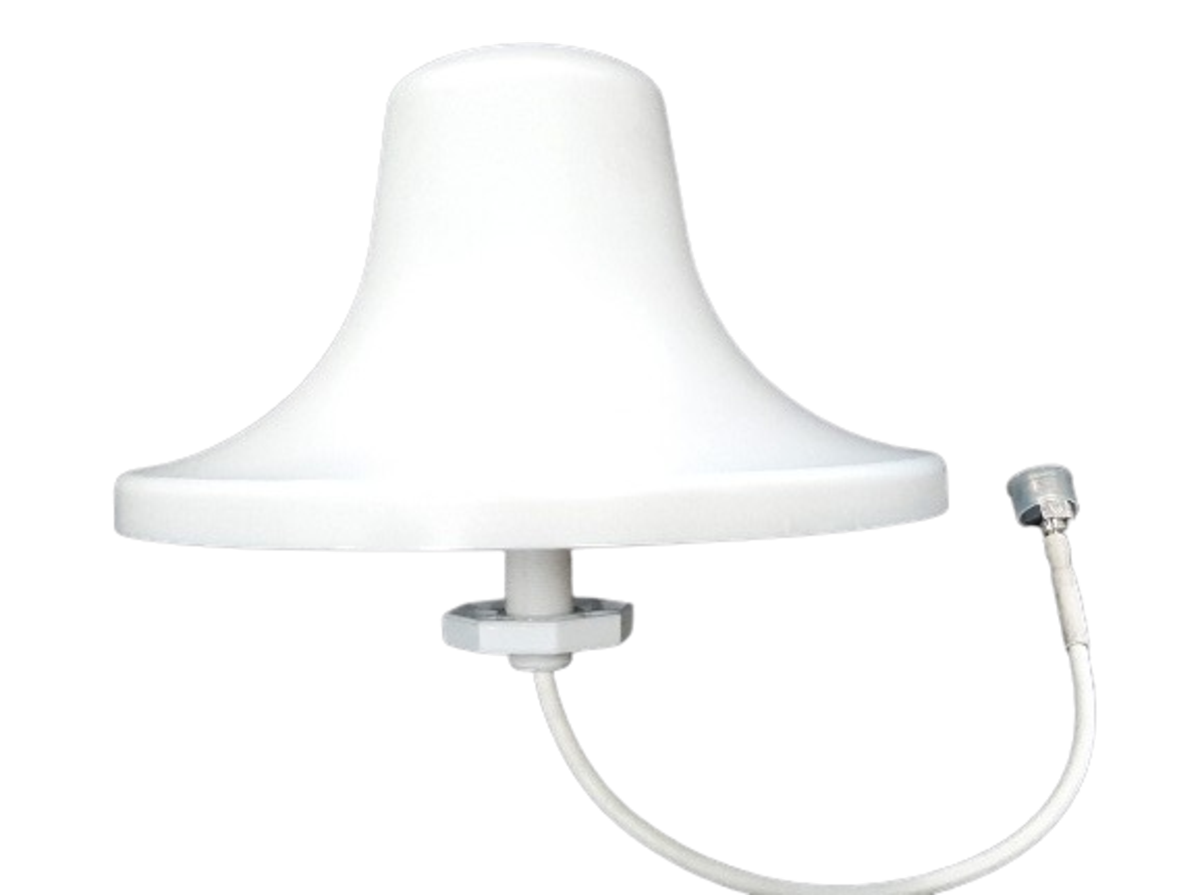

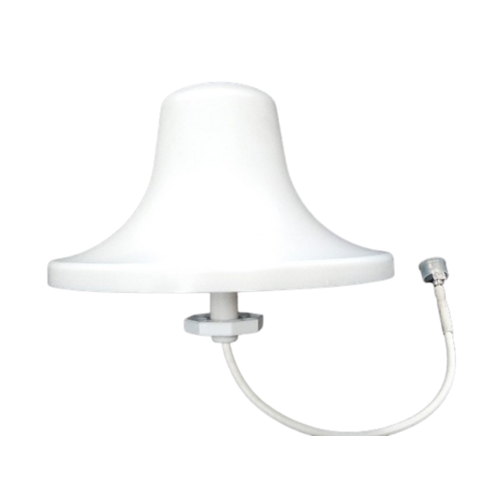

RFI Low PIM DAS Omnidirectional Ceiling Antenna



Key Features



  • Single Port for Cel-Fi GO amplifier

  • Full 700 to 3800MHz band coverage

  • Single 300mm tail with  N Female Connector



Usage



  • Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

  • The DAS6938-SOC150-N antenna is a high performance, PIM rated multiband omni-directional ceiling mount antenna, covering 689-960 MHz, 1710-3800 MHz

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency

Electrical Specifications

  • Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz / 3300-3800MHz

  • Max Gain: 2.0dBi / 3.0dBi / 4.0dBi / 5.0dBi

  • Input Impedance: 50 Ω

  • VSWR: <1.8:1 / <1.5:1 / <1.5:1 / <1.8:1

  • Horizontal Beamwidth: 360°



Mechanical/Environmental Specifications

  • Construction: PC + ABS

  • Cable: 300mm

  • Input Connector: N Female

  • Weight: 0.3 kg

  • Dimensions: 89 x 200mm (H x Ø)

  • Mounting: Ceiling



Read More



(DAS6938-SOC150-N)

SKU DAS6938-SOC150-N
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
