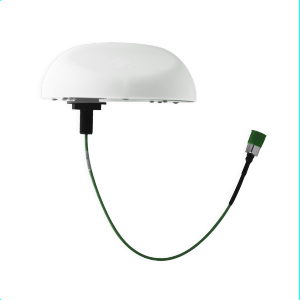

RFI Low PIM SiSo DAS Omnidirectional Ceiling Antenna - 698-4200 MHz



Key Features



  • Single Port for Cel-Fi GO Installations

  • Full 698 to 4200MHz band coverage

  • Single 500mm tail with  4.3-10 Female Connector



Usage



  • The DAS6960-MOC160 antenna is a high performance ultra-low PIM rated omni-directional ceiling mount antenna, covering 698-4200 MHz.

  • RFI’s unique design provides wideband coverage, with excellent low PIM characteristics.

  • This antenna works on and off ground plane, suitable for LTE and 5G fixed in-building coverage applications.



Specifications / Frequency

Electrical Specifications

  • Frequency Range: 698-4200MHz

  • Input Impedance: 50 Ω

  • Horizontal Beamwidth: 360°



Mechanical/Environmental Specifications

  • Construction: PC + ABS

  • Cable: Dual 500mm

  • Input Connector: 1x 4.3-10 Female

  • Weight: 0.25 kg

  • Mounting: Ceiling



Read More

  • Specification Sheet



(DAS6942-SOC160-B)

SKU DAS6942-SOC160-B
Brand RFI
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
