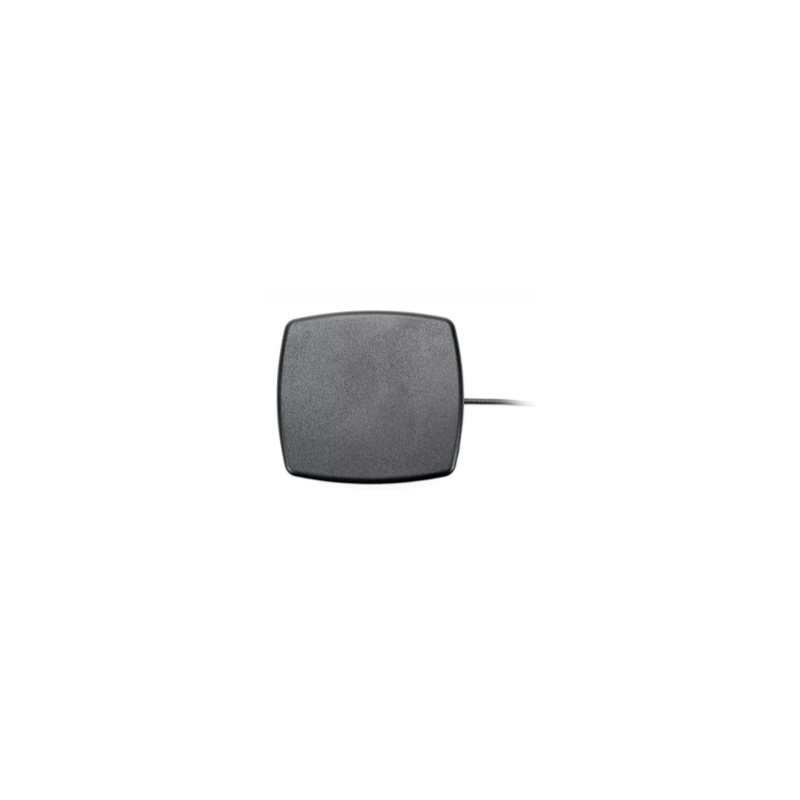

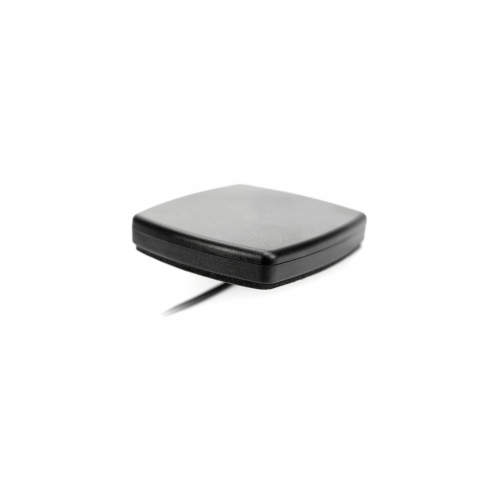

RFI LTE Cellular SISO Low Profile Antenna



Key Features



  • Polycarbonate radome is ideal for outdoor use

  • 1.5m RG174 with SMA Male connector

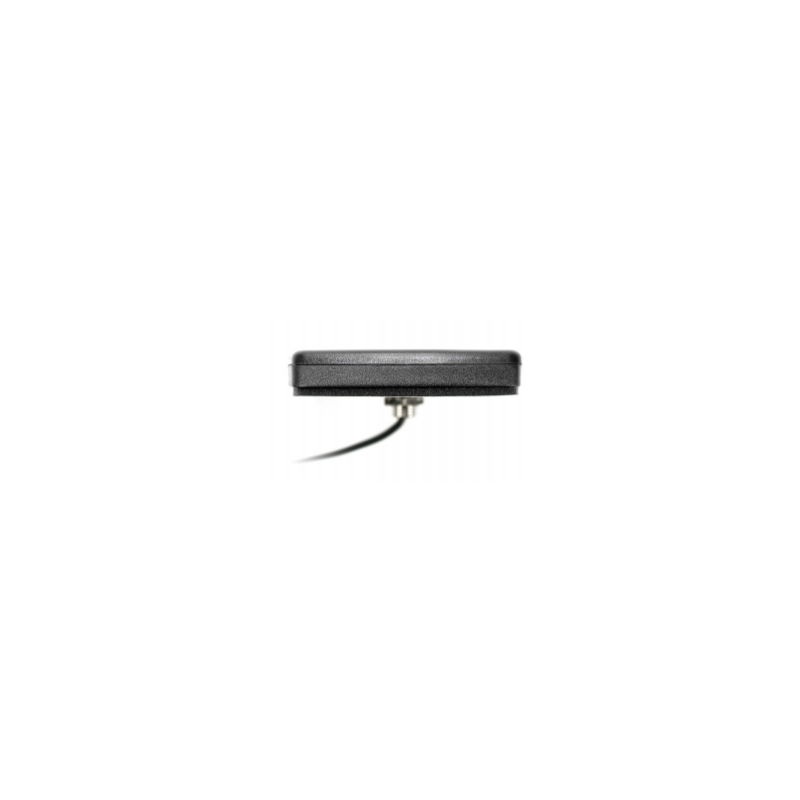

  • M10mm Threaded Stud & Nut

  • Ultra compact 15mm height



Usage



  • The LTE-SLP is a mini low profile multiband hockey puck style antenna

  • This antenna is suited to applications where the antenna is as discrete as possible whilst offering solid performance

  • Being a low profile, ground independent omni directional antenna, its sturdy design and low visual impact make it perfect for fixed and mobile data applications



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700 MHz)
compatible
1.8 dBi
Optus 4G+ (700 MHz)
compatible
1.8 dBi
Telstra Next-G™ (850 MHz)
compatible
1.8 dBi
Vodafone 4G+ (850 MHz)
compatible
1.8 dBi
Optus Regional 3G (900 MHz)
compatible
1.8 dBi
Vodafone Regional 3G (900 MHz)
compatible
1.8 dBi
Telstra/Optus/Voda 4G (1800 MHz)
compatible
3.5 dBi
Telstra/Optus 4G (2100MHz) compatible 3.5 dBi
Telstra Metro 4GX (2600 MHz)
compatible
4.4 dBi



Electrical Specifications



Frequency Range: 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz

Input Impedance: 50Ω

VSWR: Cell & WiFi = <2.5:1

Radiation: Omnidirectional

Maximum Power: 10Watts.



Mechanical/Environmental Specifications



Construction: Black polycarbonate radome

Cable: 1.5M RG174 cable

Connector: SMA Male

Dimensions: 15.7mm (H) 80mm (Diameter).



Read More





(LTE-SLP-1.5M-SMA)

SKU LTE-SLP-1.5M-SMA
Brand RFI
Shipping Weight 1.4000kg
Shipping Width 0.100m
Shipping Height 0.230m
Shipping Length 0.080m
Shipping Cubic 0.001840000m3
