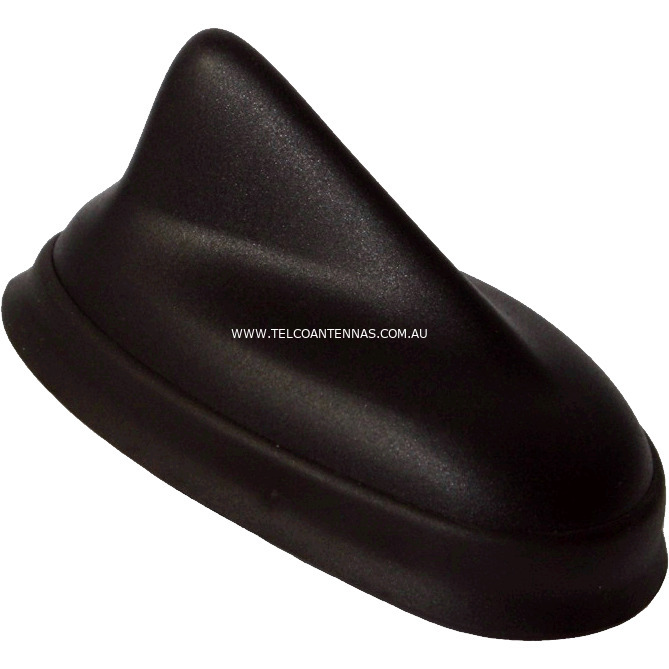

RFI CSH900 Low Profile Cellular & WiFi Antenna

Key Features

• Polycarbonate radome is ideal for outdoor use

• Low profile, low wind load shark fin design

• Standard 14mm stud mount.

Usage

• The CSH900 is a roof mounted shark fin style antenna

• Being a low profile, ground independent omni directional antenna, its sturdy design and low visual impact make it perfect for fixed and mobile data applications

• Covering all bands 850MHz, 900MHz, 1800MHz,1900MHz, 2100MHz, ISM 2.4-2.5GHz bands, this one antenna can be used for any purpose

• The shark fin low profile multiband antenna offers great performance for cellular and WIFI bands

• Suited for M2M and monitoring applications and telematics, this antenna has a single 3m RG174 cable fitted with an FME jack/socket.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra Next-G™ (850MHz)		2.1dBi
New Vodafone Network (850MHz)* *Please check Vodafone Coverage Map		2.1dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2.1dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2.1dBi
All carriers - calls & text (900MHz)		2.1dBi
Telstra 4G (1800MHz)		2.1dBi
Optus 4G (1800MHz)		2.1dBi
All carriers - 3G internet (2100MHz)		2.1dBi
802.11 b/g/n WiFi (2400MHz)		2.1dBi
ISM & Bluetooth (2400MHz)		2.1dBi

Electrical Specifications

• Frequency Range: 824-960MHz / 1710-2170MHz / 2400-2500MHz

• Input Impedance: 50Ω

• VSWR: Cell & WiFi = <2.5:1

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Black polycarbonate radome

• Cable: 3m RG174

• Connector: FME Female

• Dimensions: 98mm (L) 58mm (W) 65mm (H)

Connection

This antenna has a 3m cable terminating with an FME Female connector.
