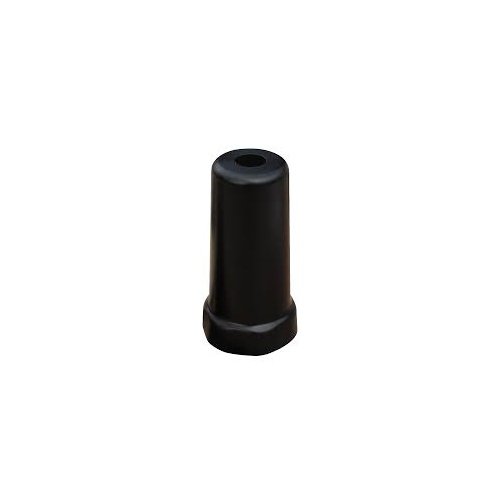

RFI CSM700 Low Profile M2M Antenna

Key Features

• Polycarbonate radome is ideal for outdoor use

• Wideband 700-3800MHz

• Stud mounting offers ease of installation in the field

• Ingress protection to IP65

• Supplied standard with 1.25m RG58 cable and SMA male connector.

Usage

• The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698MHz to 3.8GHz

• The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications

• Its robust design and low visual impact make it perfect for fixed and mobile data applications

• This extremely durable antenna uses a standard 16mm stud mount with an integrated rubber O-ring seal and is dust-tight and waterproof - IP65 rated

• You'll see this type of antenna often mounted on ATMs, vending machines, transit stations, and a wide range of other M2M applications.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2dBi
Optus 4G+ (700MHz)		2dBi
Telstra Next-G™ (850MHz)		2dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		2dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2dBi
Telstra/Optus/Vodafone 4G (1800MHz)		3.5dBi
All carriers - Urban/Metro 3G (2100MHz)		3.5dBi
802.11 b/g/n WiFi (2400MHz)		5dBi
Telstra Metro 4GX (2600MHz)		5dBi
Optus Metro 4G+		5dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2170MHz / 2300-2700MHz /3300-3800 MHz

• Input Impedance: 50Ω

• VSWR: <2.0:1

• Vertical Beamwidth: 60° / 30° / 20°

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications.

• Construction: Black polycarbonate radome

• Cable: 1.25M low loss RG58 cable

• Connector: SMA Male

• Weight: 0.17kg

• Mounting: 16mm Stud Mount (cable egress through stud)

• Dimensions: 95mm (H) 50mm (Diameter)
