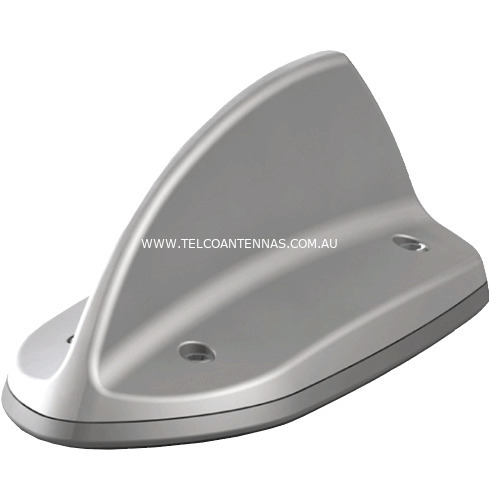

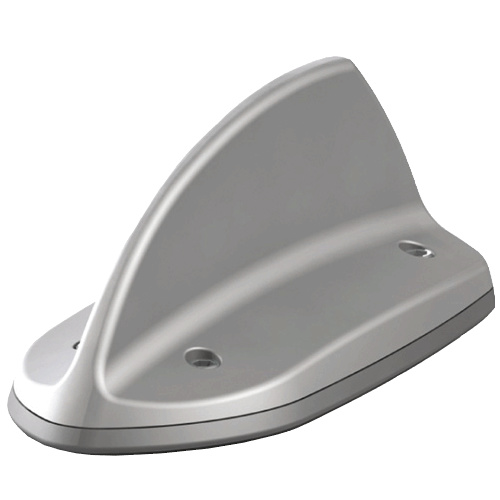

RFI TLA4200 - 6dBi Transit/Low Profile Mobile & GPS Antenna

Key Features

• Wideband 700-2700MHz performance

• Active GPS Element

• Low profile, vandal resistant radome

• Ground dependent/independent capable.

Usage

• The TLA4200 Antenna is designed specifically for rail, light rail and bus applications and other similarly demanding transit or stationary applications

• With a VSWR less than 2:1 covering 800 - 2700MHz, the TLA4200 operates in all cellular bands globally plus the 2.4GHz ISM band. In addition, the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications

• This antenna can be used in both a ground independent and ground dependent installation - maximum gain is achieved by using up to a 1m^2 metal surface as a ground plane

• Roof mount multiband "Shark Fin" style antenna designed to operate on all mobile phone and wireless broadband frequencies within the one housing

• An alternative for use where height is an issue eg. roofs on large motor homes, outdoor data/weather reporting stations, and many more

• Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4200 is IP68 rated to fully protect against the ingress of dust and water

• This antenna is suitable for installations even in the most demanding of climates.

• Designed to meet the following European Traction Industry Standards:

  • NF-F-16-101/102 (materials standard)

  • EN50155 (vibration standard)

  • EN50124-1 (electrical isolation standard)

  • Deutsch Bahn high voltage / current specification.

Streaming live in-car video at Bathurst with two RFI TLA4100 for 4G mobile broadband.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra Next-G™ (850MHz)		5dBi
Vodafone 4G+ Network (850MHz) *Please check Vodafone Coverage Map.		5dBi
Optus Regional 3G (900MHz)		5dBi
Vodafone Regional 3G (900MHz)		5dBi
GPS (1575.42MHz)		28dB (ACTIVE)
Telstra 4G (1800MHz)		6dBi
Optus 4G (1800MHz)		6dBi
Vodafone 4G (1800MHz)		6dBi
All carriers - Urban/Metro 3G (2100MHz)* Please check your network's Coverage Map.		6dBi
802.11 b/g/n WiFi (2400MHz)		3dBi
4GX Band 7 (2600MHz)		3dBi
802.11a/n/ac (5800MHz)		7dBi
5GHz UNII (5800MHz)		7dBi

Electrical Specifications

• Frequency Range: 824-960MHz & 1710-2170MHz & 2400-2700MHz & 5700-5800MHz

• Input Impedance: 50Ω VSWR: <2:1 (Cellular) <1.5:1 (GPS)

• Vertical Beamwidth: 38° @ 824-960MHz & 180° @ 1710-2700MHz

• Polarisation: Vertical (Cellular), RHCP (GPS)

• Radiation: Omnidirectional, Ground Dependent

• Maximum Power: 50Watts

Mechanical/Environmental Specifications

• Cable: None

• Connector: N Female (Cellular), TNC Female (GPS)

• Mount: 4 x M6 screws (not included)

• Dimensions: 20cm x 10cm

Connection

• This antenna has an N flange connector integrated into its underbelly. Cable not supplied.
