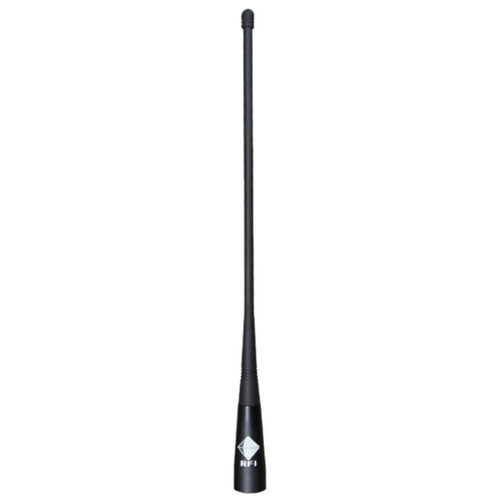

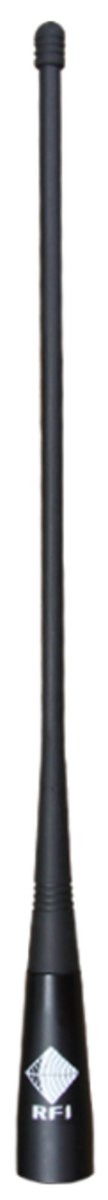

RFI UHF CB 4dBi Mopole Antenna (477 MHz); Whip Only

The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.

This CD34-71-00 is the whip only and screws onto a UHF / MBC / SO239 connectors / base


Features:

  • Ground plane independent design allows installation in almost any location
  • Robust UV stable base & flexible whip
  • Stud Mount Antenna

Specifications:

Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 4
Tuning Supplied pre-tuned
Power W 50
Suggested Installation Bracket
Whip Length mm 330
VSWR <1.5:1
Mounting 13mm threaded stud

(CD34-71-00)

SKU CD34-71-00
Brand RFI
Shipping Weight 0.2500kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.380m
Shipping Cubic 0.003800000m3
