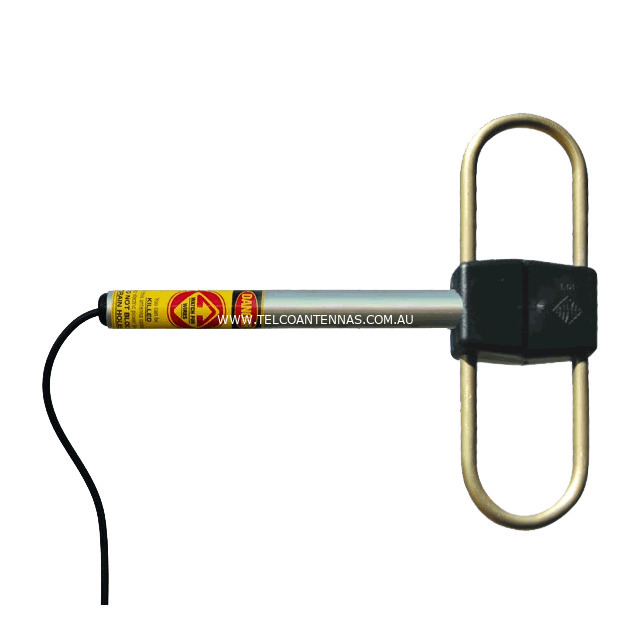

RFI UHF Side Mounted Dipole 400-520MHz



Key Features



  • Tuned to full bandwidth

  • Unity gain

  • All welded, full folded dipole construction

  • Easily mounted and installed with single clamps.



Usage



  • The SMD4-67 is of all welded aluminium construction

  • The feed point is protected by an ABS cap, with the internal PTFE based cable construction providing excellent intermodulation performance (-150dBc)

  • The stainless steel SMD41-67 is electrically identical to its aluminium counterpart and is recommended for corrosive environments, this antenna is available on request

  • All of the SMD4 series antennas are directly DC grounded for superior lightning protection and the reduction of precipitation static noise.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
UHF 400-520MHz
compatible
0dBd (Unity)



Electrical Specifications



  • Frequency Range: 400-420MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1 (14dB)

  • Vertical Beamwidth: 70° (typical, mount dependent)

  • Horizontal Beamwidth: 220° (typical, mount dependent)

  • Passive IM 3rd Order (2x20W): -150dBc

  • Radiation: Dipole Maximum Power: 500Watts



Mechanical/Environmental Specifications



  • Construction: Fully welded aluminium, alodined finish

  • Cable: Short 9142 Durathene tail

  • Connector: 4.3-10 Female connector

  • Mount: None Supplied - Recommend UNV Clamp

  • Wind rating: >240km/hr

  • Weight: 0.3kg

  • Dimensions: Enquire
