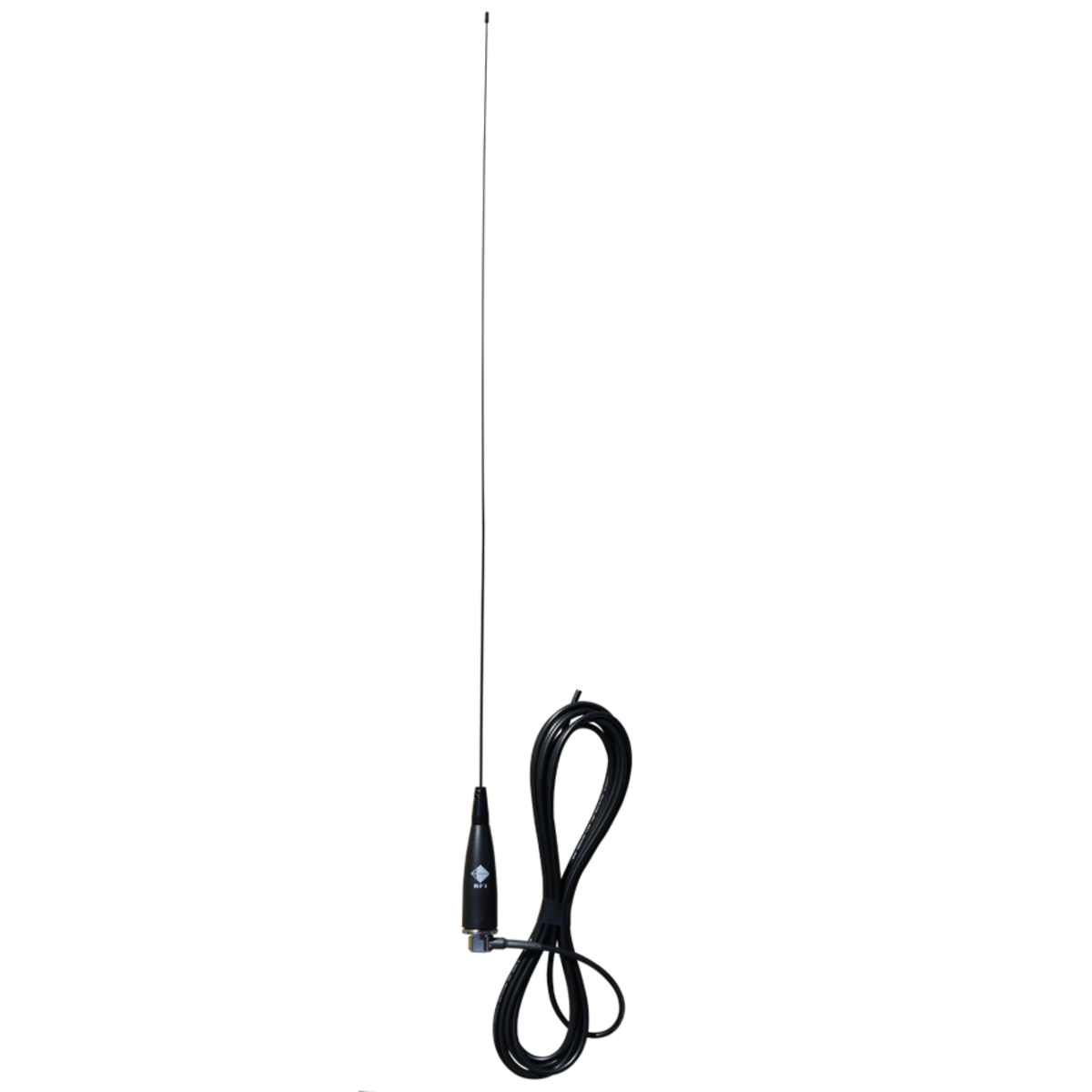

RFI VHF 3dB Broadband Antenna (148-174 MHz); MBC Base 5.0m No Connector



Key Features



  • The CD29 Series antennas provide greater bandwidth coverage without sacrificing antenna performance.

  • Their no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies.

  • The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip.

  • The CD29 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades.



Specifications / Frequency



Electrical & Mechanical Specifications

  • Nominal Gain:    3dBq

  • Whip Material : Flexible tapered stainless steel whip

  • Whip Length: 829mm

  • Cable And Connector: 5M RG58C/U cable / no connector

  • Frequency: 148-174 MHz

  • Nominal impedance: 50

  • Power: 25W

  • Polarisation: Vertical

  • VSWR: <1.8:1

  • Tuned bandwidth: Full

  • Frequency: 450 - 520MHz



(CD29-148174-53)

SKU CD29-148174-53
Brand RFI
Shipping Weight 0.5000kg
Shipping Width 0.400m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.001000000m3
