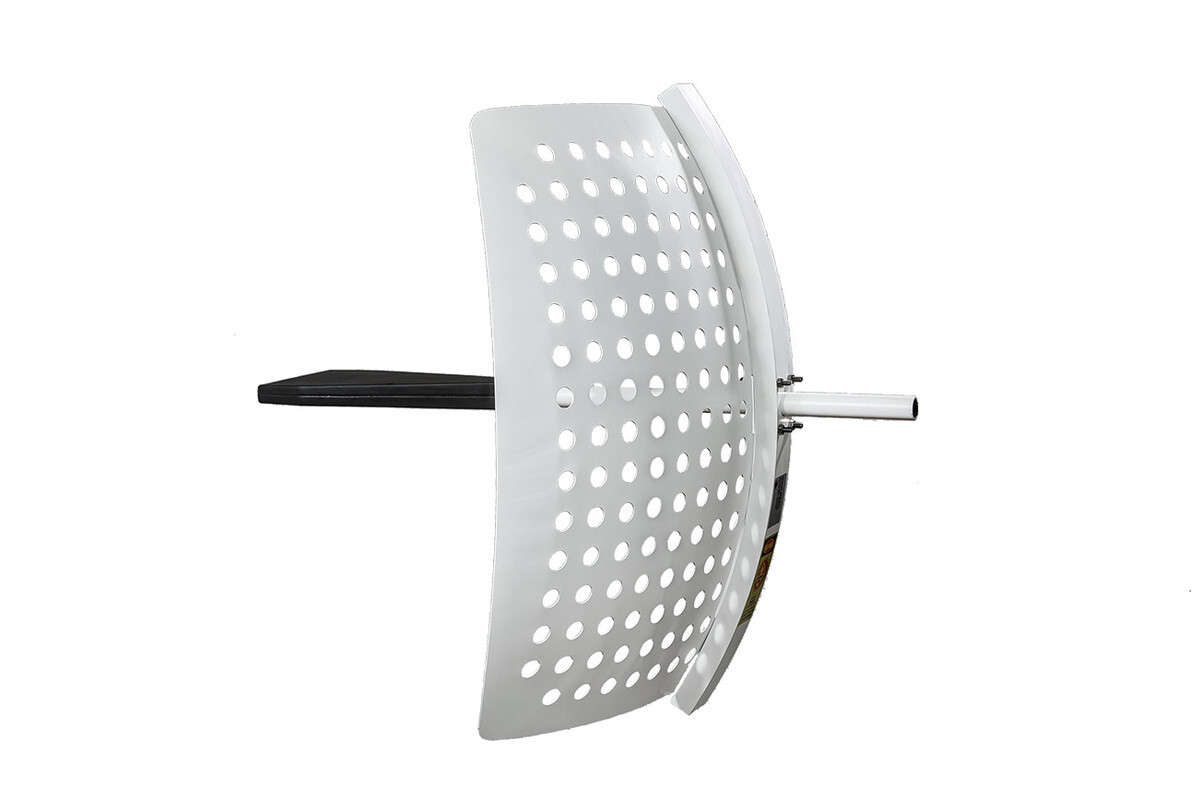

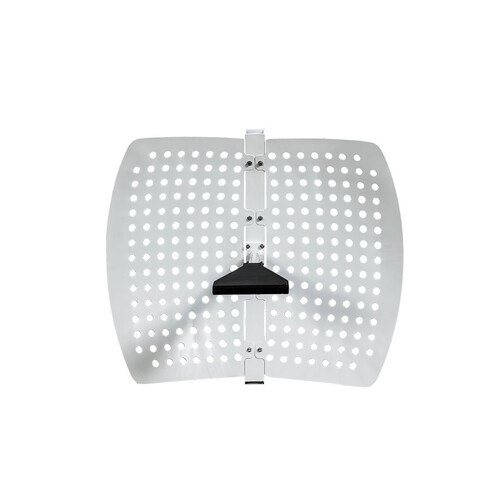

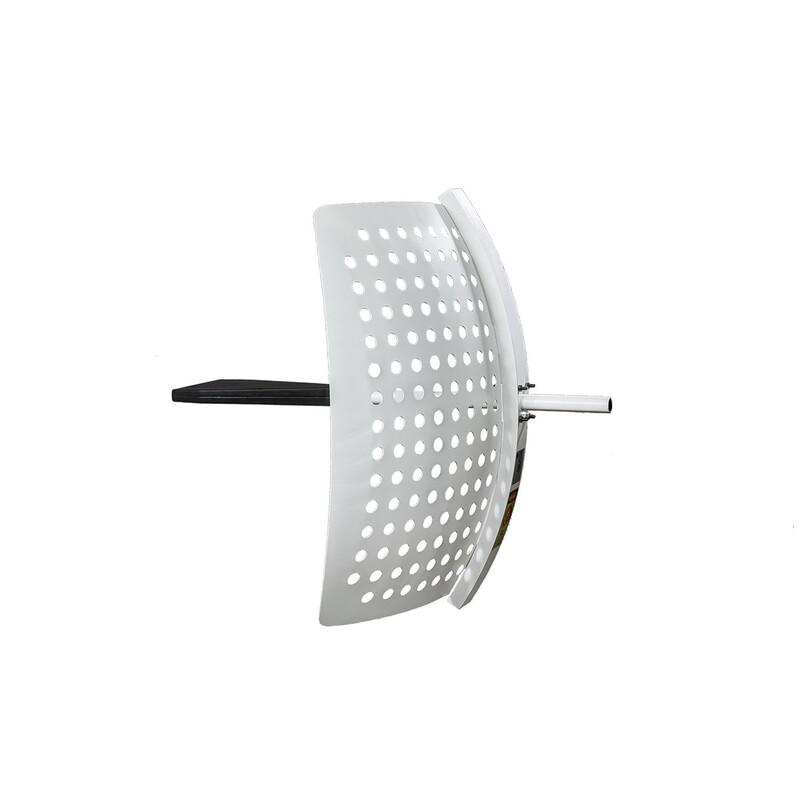

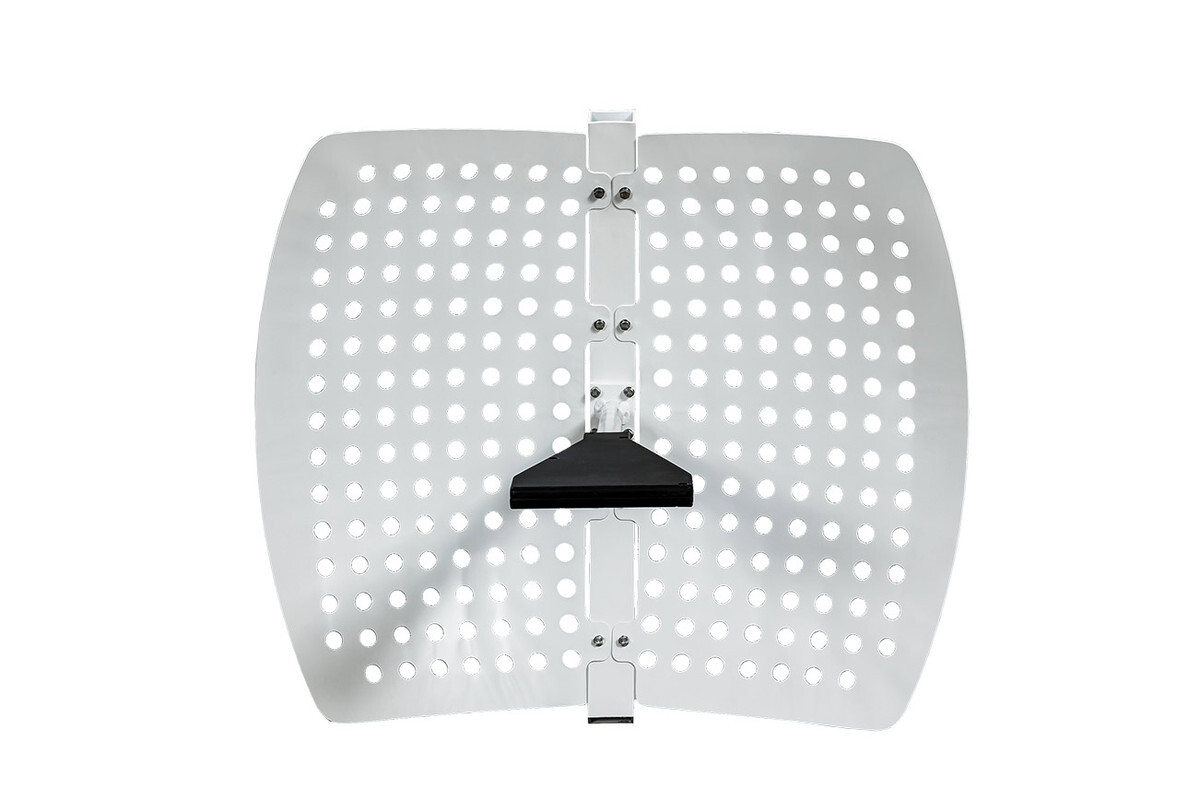

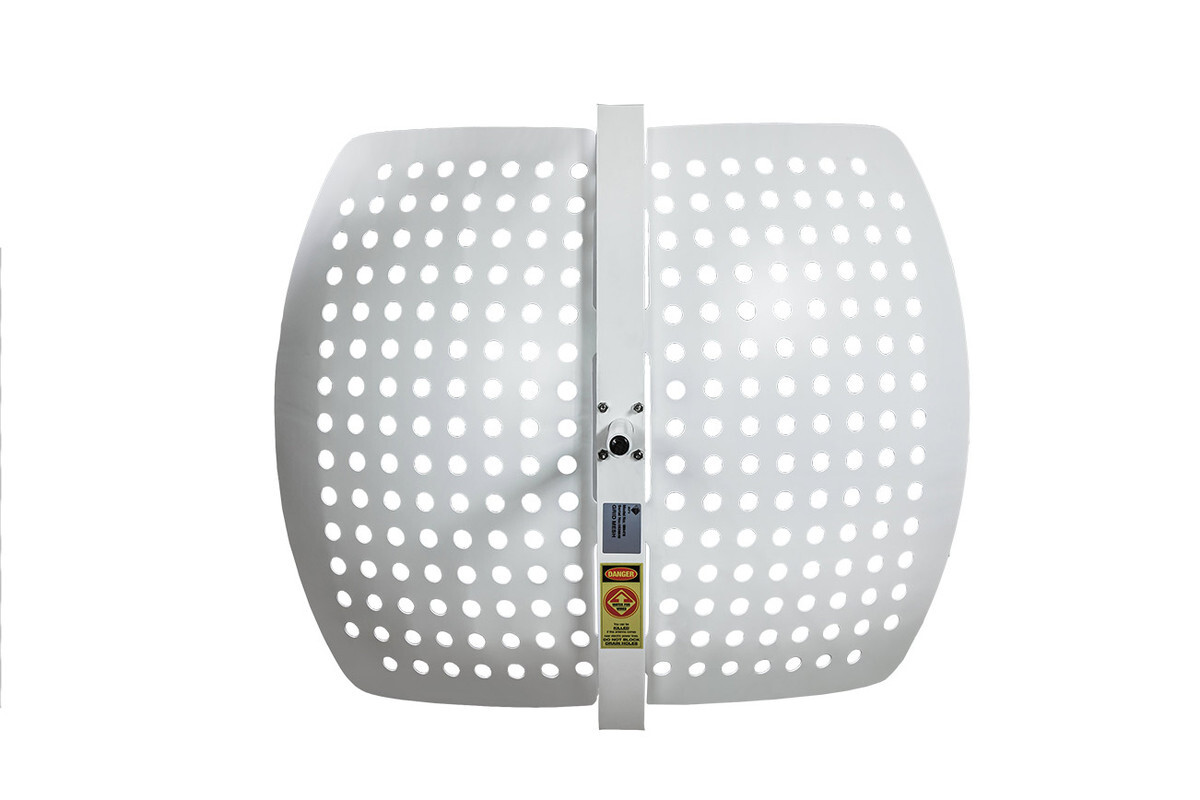

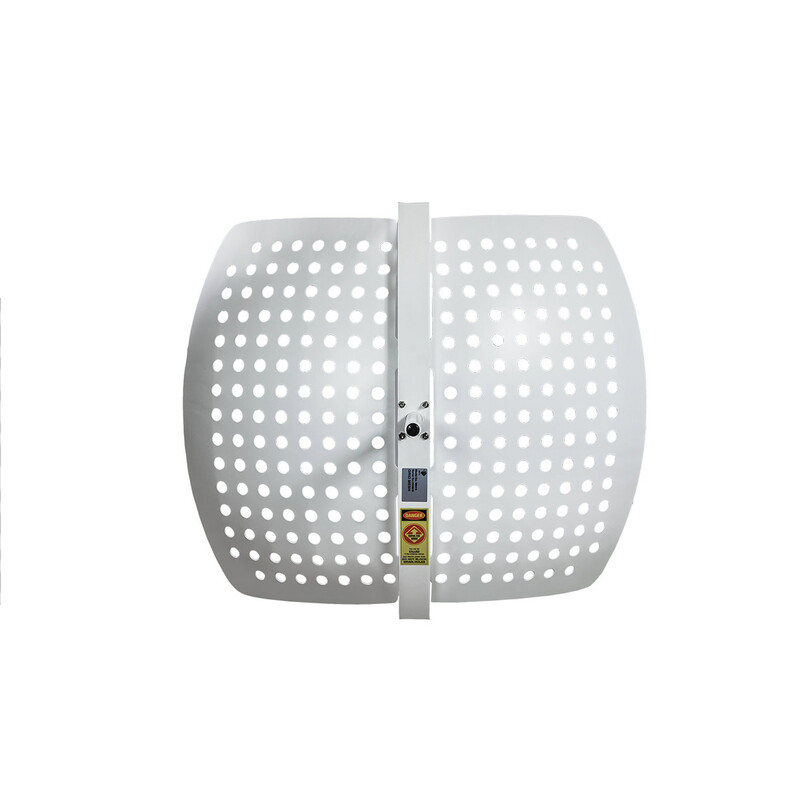

RFI Wideband High Gain Mesh Parabolic Antenna - 700-3800MHz



Key Features



  • Full band solution, 698-3800MHz coverage

  • Vertical, Horizontal or ±45 linear polarisation

  • Easy installation

  • Clamp options available

  • Lightweight yet durable design



Additional Information

  • The GM06 mesh mini-grid is a lightweight yet ruggedized parabola grid providing highly reliable point to point communication.

  • Utilising PCB manufacturing techniques, this grid offers best in class reliability and performance, with Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability.

  • Although highly durable in design, wind loading and weight have been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilised ABS radome and PCB element.

  • The integrated mounting clamp offering full articulation and polarisation adjustment; offering more assistance and reduction in time during installation.




Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
10dBi
Optus 4G+ (700MHz)
compatible
10dBi
Telstra Next-G™ (850MHz)
compatible
10Bi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
10dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
10dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
10dBi
915MHz ISM Band
compatible
10dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
21dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
21dBi
Optus 4G/Vivid Wireless (2300MHz)
compatible
21dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
21dBi
LTE Bands 1 - 10, 12 - 20, 23 - 41
compatible
21dBi
5G Sub 6GHz- All Carriers (3.GHZ) compatible 24dBi



Electrical Specifications



  • Frequency Range: 694-960MHz/ 1710-2700MHz /  3400-3800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.0:1

  • Vertical Beamwidth: 27° / 11° / 9°

  • Horizontal Beamwidth: 27° / 13° / 9°

  • Front to Back Ratio: 20 dB (± 3 dB)

  • Radiation: Directional

  • Maximum Power: 50Watts



Mechanical/Environmental Specifications

  • Construction: Full aluminium construction in white powdercoat finish

  • Cable: 4.3-10 Female on 1m cable tail

  • Wind Rating: 240km/hr

  • Weight: 5kg

  • Dimensions: 670mm x 670mm x 400mm



Read More

(GM06-0738)

SKU GM06-0738
Brand RFI
Shipping Weight 2.0000kg
Shipping Width 0.210m
Shipping Height 0.085m
Shipping Length 1.140m
Shipping Cubic 0.020349000m3
