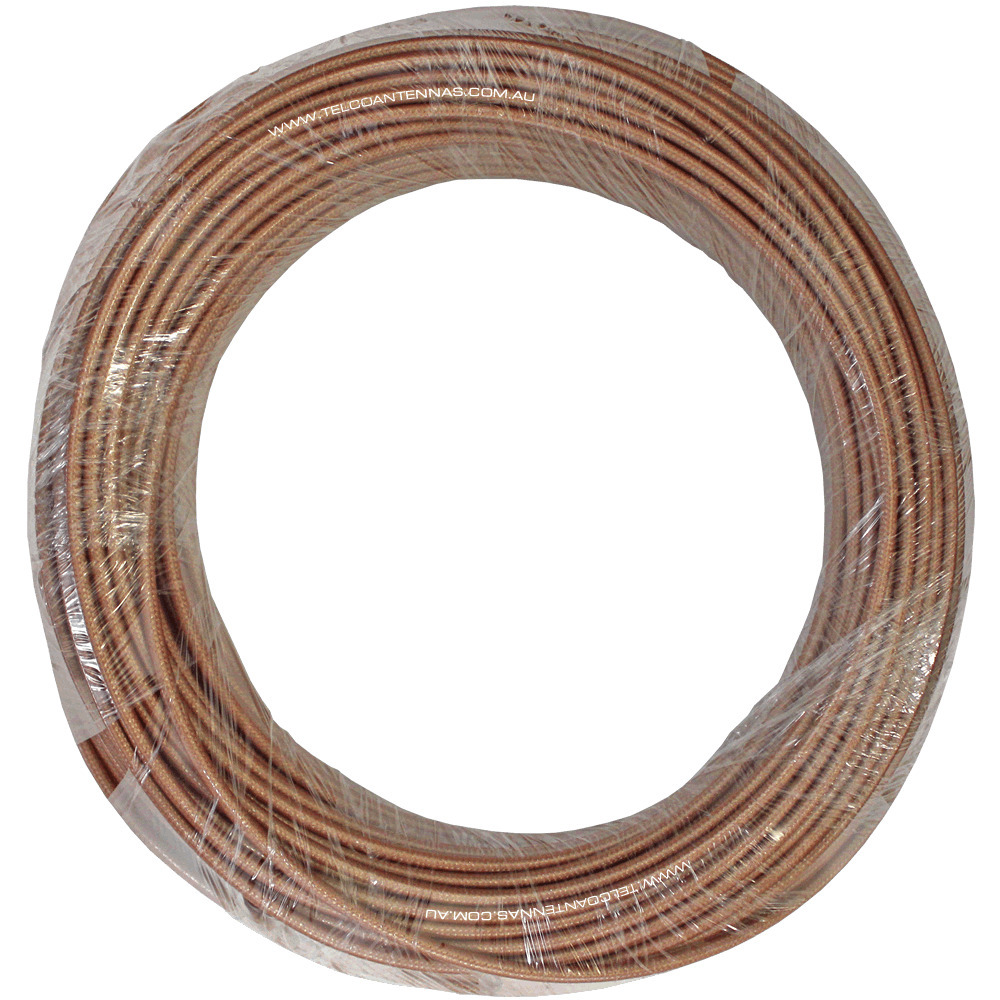

50 Metre Reel RG142 Low Loss 50 Ohm Cable



Key Features



  • Buy bulk and save

  • RG142/U cabling

  • High temperature, high frequency 5mm coaxial cable.



Usage



  • RG142 is a low loss, FEP jacketed coaxial cable capable of withstanding operating temperatures up to 200°C

  • The cable's solid silver-coated CCS inner conductor and silver-plated copper braid provide superior shielding and low attenuation losses, making it a suitable equivalent to RG58 or LMR195 for high temperature, harsh environmental conditions.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 96pF/m

  • Signal Loss: 0.39dB/m @ 850MHz, 0.76dB/m @ 2100MHz

  • Frequency Range: 0-12.4GHz

  • Velocity of Propagation: 70%

  • Nominal Delay: 5.08ns/m

  • Voltage Withstand: 1900Volts DC



Mechanical Specifications



  • Weight/100m: 6.8kg

  • Operating Temperature: -70°C to +200°C

  • Minimum Bend Radius: 51mm

  • Conductor Material: Silver coated CCS solid strand (0.94mm)

  • Insulating Material: Teflon PTFE (2.946mm)

  • Outer Shield Material: Silver coated copper braid 95% Coverage (x2)

  • Outer Jacket Material: Brown FEP (4.95mm) MIL-DTL-17H M17/60



tick rohs compliant lead free

(RG142-50M)

SKU RG142-50M
