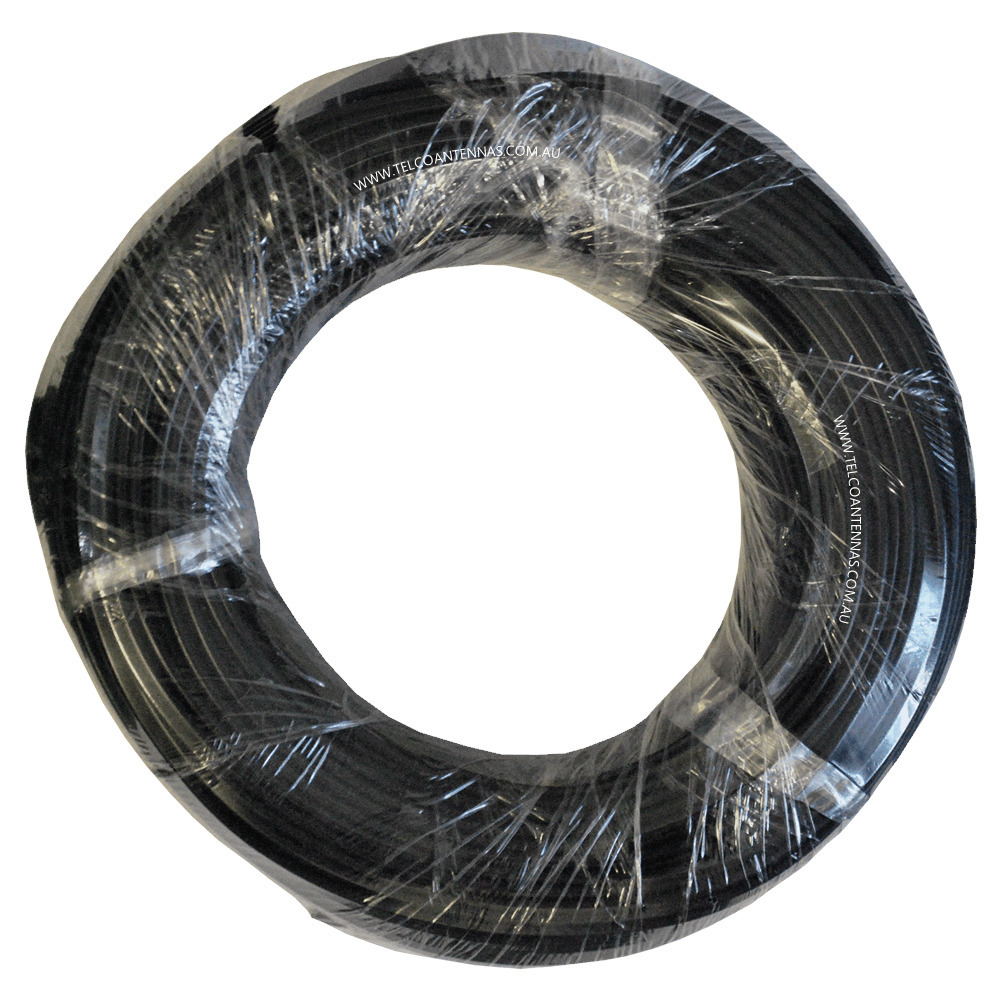

100 Metre Reel RG174 50 Ohm Cable



Usage



  • RG174/U or RG174 cabling is an extremely common cable type, typically used in GPS, WLAN, and cellular communications as its 2.5mm outer diameter allows for the attachment of most micro-coaxial connectors (such as MMCX, MCX, TS9, SMB, etc.)

  • Buy in bulk and save.



Specifications / Frequency



  • Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 100pF/m

  • Frequency Range: 0-3GHz

  • Velocity of Propagation: 66%

  • Nominal Delay: 5.05ns/m

  • Voltage Withstand: 1100VDC RMS

  • Signal Loss:
    • 0.83dB/m @ 850MHz

    • 1.34dB/m @ 2100MHz



Mechanical Specifications



  • Weight/100m: 1.19kg

  • Operating Temperature: -40°C to +75°C

  • Minimum Bend Radius: 13mm

  • Conductor Material: Bare copper strand (0.48mm)

  • Insulating Material: Polyethylene PE (1.55mm)

  • Outer Shield Material: Tinned copper braid 90% Coverage (1.95mm)

  • Outer Jacket Material: Black PVC (2.7mm)



tick rohs compliant lead free

(RG174-100M)

SKU RG174-100M
