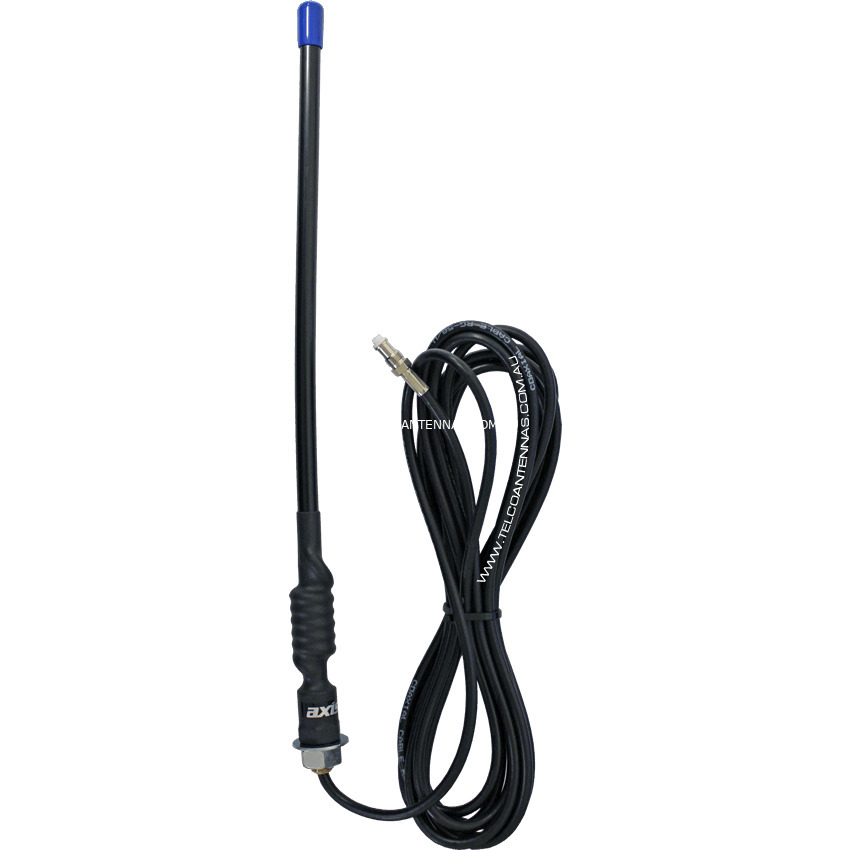

Ultra Flexible 3dB UHF/CB Radio 477MHz Aerial



Key Features



  • 3dB gain across entire 470-480MHz UHF/CB band

  • Durable flexible nylon construction

  • 13mm stud mounted

  • Supplied with 4.5m RG58 cable.



Usage



  • The true beauty in this antenna is its unbelievable flexibility and durability, bending past 180 degrees without any form of stress

  • These characteristics make it ideal for rough environments and heavy usage

  • With a standard 13mm stud mount this compact workhorse UHF aerial is commonly seen on machinery, forklifts, city couriers, in fact any application where height clearance is an issue

  • The antenna comes preterminated with 4.5m of RG58U cable and an FME Female connector for easy cable feeding - once cable has been fed to the radio, simply screw on the supplied PL259 UHF adaptor.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
UHF CB Radio (477MHz)
compatible
3dB



Electrical Specifications



  • Frequency Range: 470-480MHz

  • Input Impedance: 50Ω

  • VSWR: <1.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications



  • Construction: Black flexible nylon with brass mounting stud

  • Cable: 4.5m RG58 coaxial

  • Connector: FME Female with UHF Male adapter

  • Length: 300mm Weight: 0.2kg



Connection



  • This antenna has a 4.5m cable that terminates with an FME Female connector

  • The FME Female connector has a small diameter making it far easier to install as opposed to conventional UHF PL259 connectors

  • This antenna is supplied with a FME to UHF adapter for connecting you radio./p>



female FME Connector

FME Female Connector [pictured]

If you would like a shorter length of cable, or a different connector please email us so we can customise this antenna for you.

(F477K)

SKU F477K
Shipping Weight 0.6000kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.400m
Shipping Cubic 0.001600000m3
