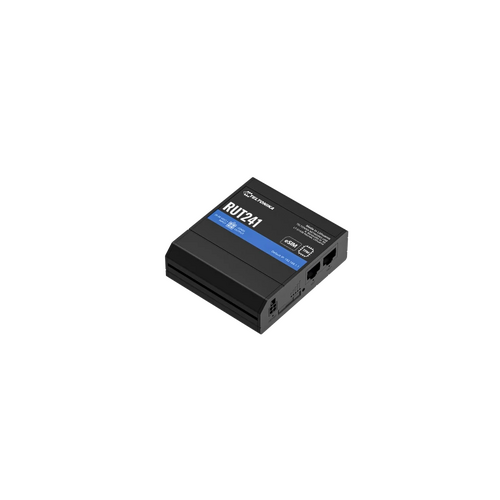

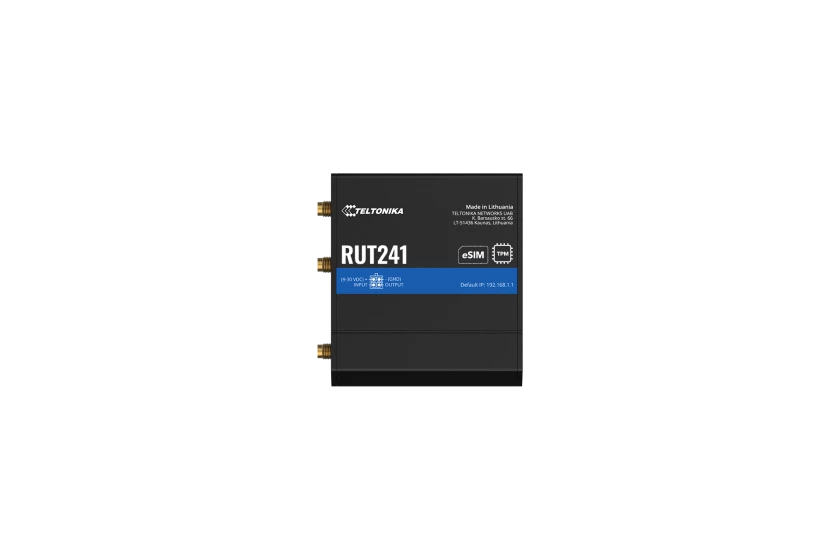

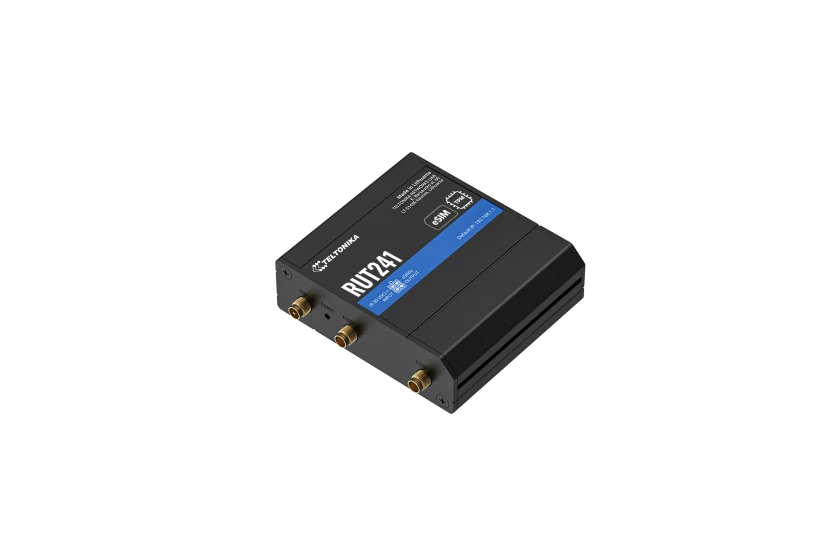

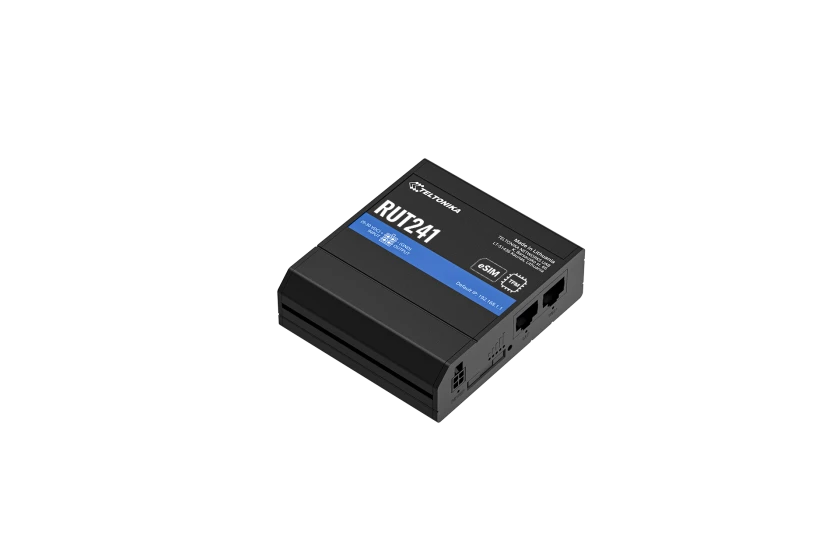

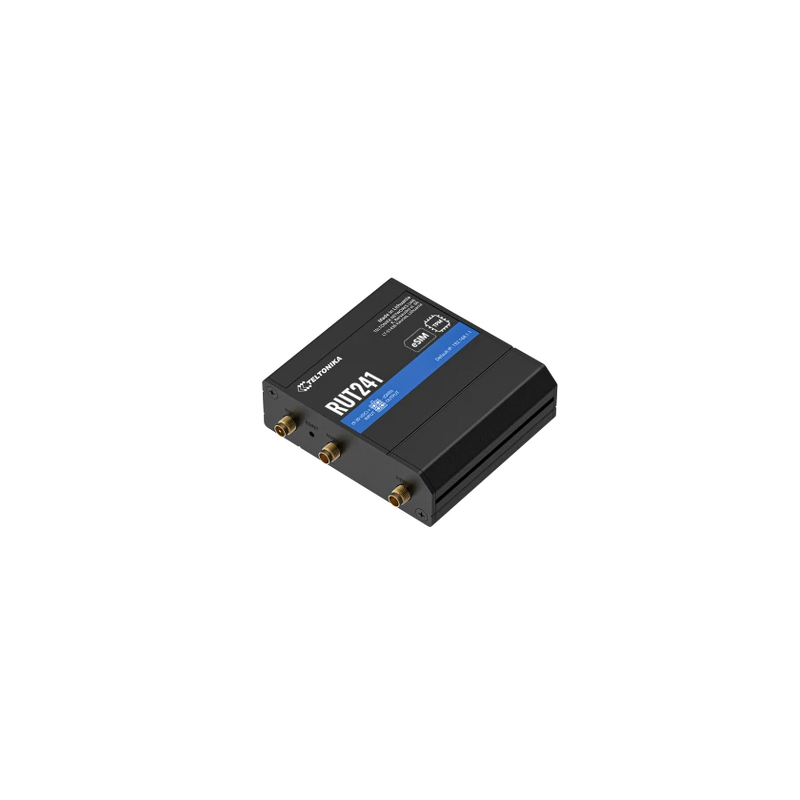

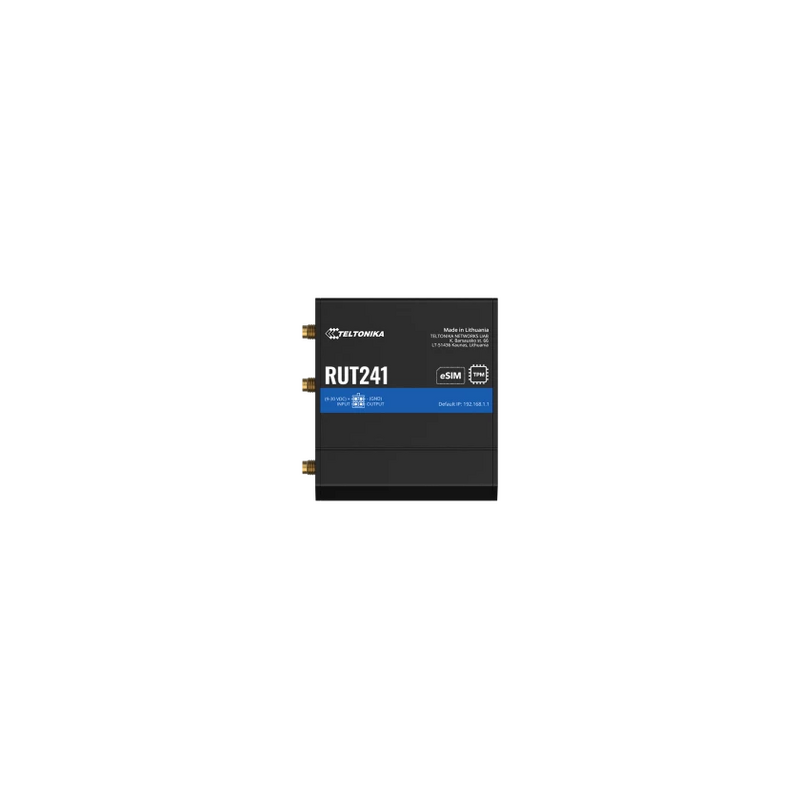

RUT241 eSim - Teltonika Compact Router 4G (LTE)

Key Features

• 4G LTE (Cat 4) Connectivity
• Seamless connectivity with eSIM™ SGP.22
• Next-gen router security with Trusted Platform Module
• Teltonika RMS Capable - For easy & convenient eSIM™ profile management

The RUT241 eSIM™ is a robust industrial cellular router featuring LTE Cat 4 technology and an eSIM™ that utilizes the SGP.22 pull-based consumer architecture.

This compact device accommodates a physical SIM card and supports up to seven eSIM™ profiles, which can be managed through the WebUI and RMS.

Additionally, it includes a Trusted Platform Module (TPM) to bolster security.

The RUT241 eSIM™ router ensures uninterrupted connectivity with its automatic WAN failover capability and two Ethernet ports, making it an ideal choice for M2M and IoT applications.

Mobile

• Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

• 3GPP Release: Release 10/11 depending on the hardware version

• eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

• Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD: Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list: Operator black/white list (by country or separate operators)

• Multiple PDN: Possibility to use different PDNs for multiple network access and services

• Band management: Band lock, Used band status display

• SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN: Auto APN

• Bridge: Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

• Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID: SSID stealth mode and access control based on MAC address

• Wi-Fi users: Up to 50 simultaneous connections

• Wireless Connectivity Features: Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter: Allowlist, blocklist

• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

• TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Physical Interfaces

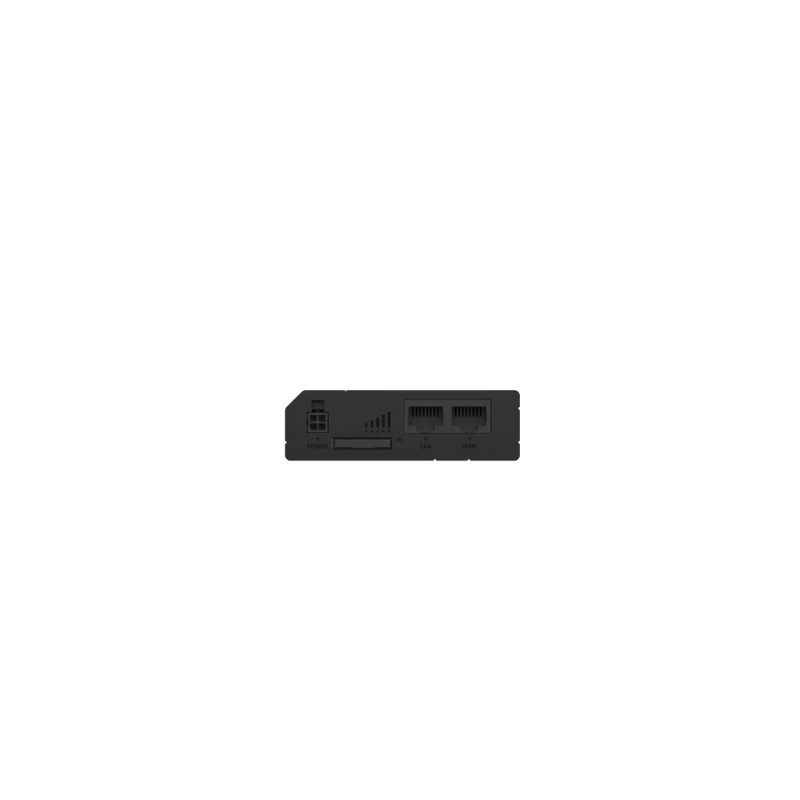

• Ethernet: 2 x RJ45 ports, 10/100 Mbps

• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

• SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder

• Power: 1 x 4-pin power connector

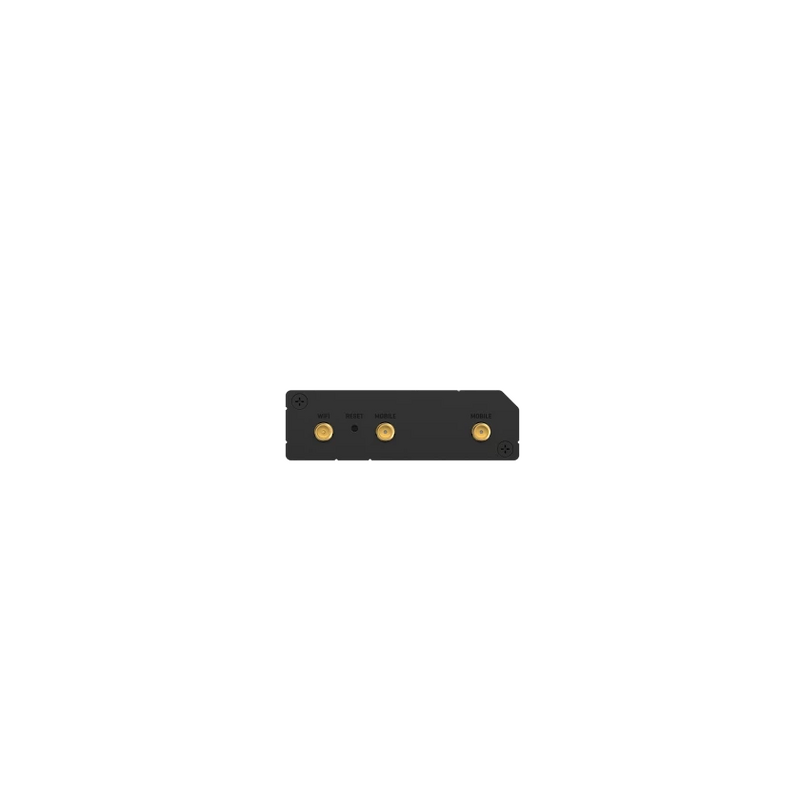

• Antennas : 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors

• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels

• Dimensions (W x H x D): 83 x 25 x 74 mm

• Weight: 125 g

• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C

• Operating humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30
