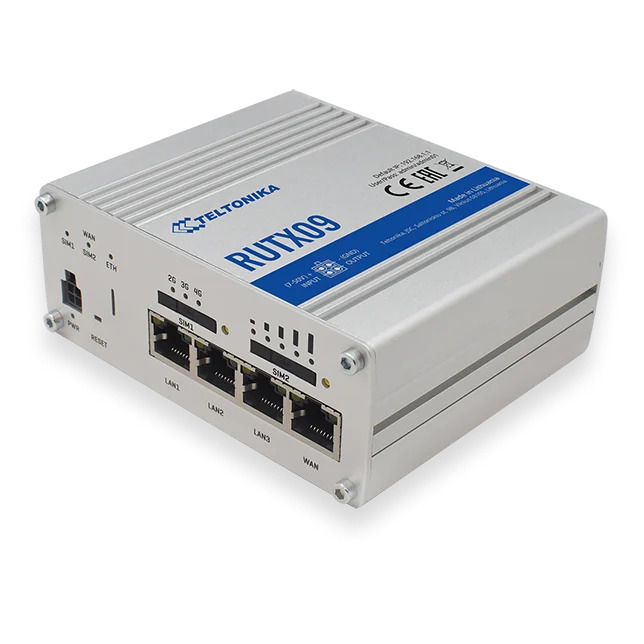

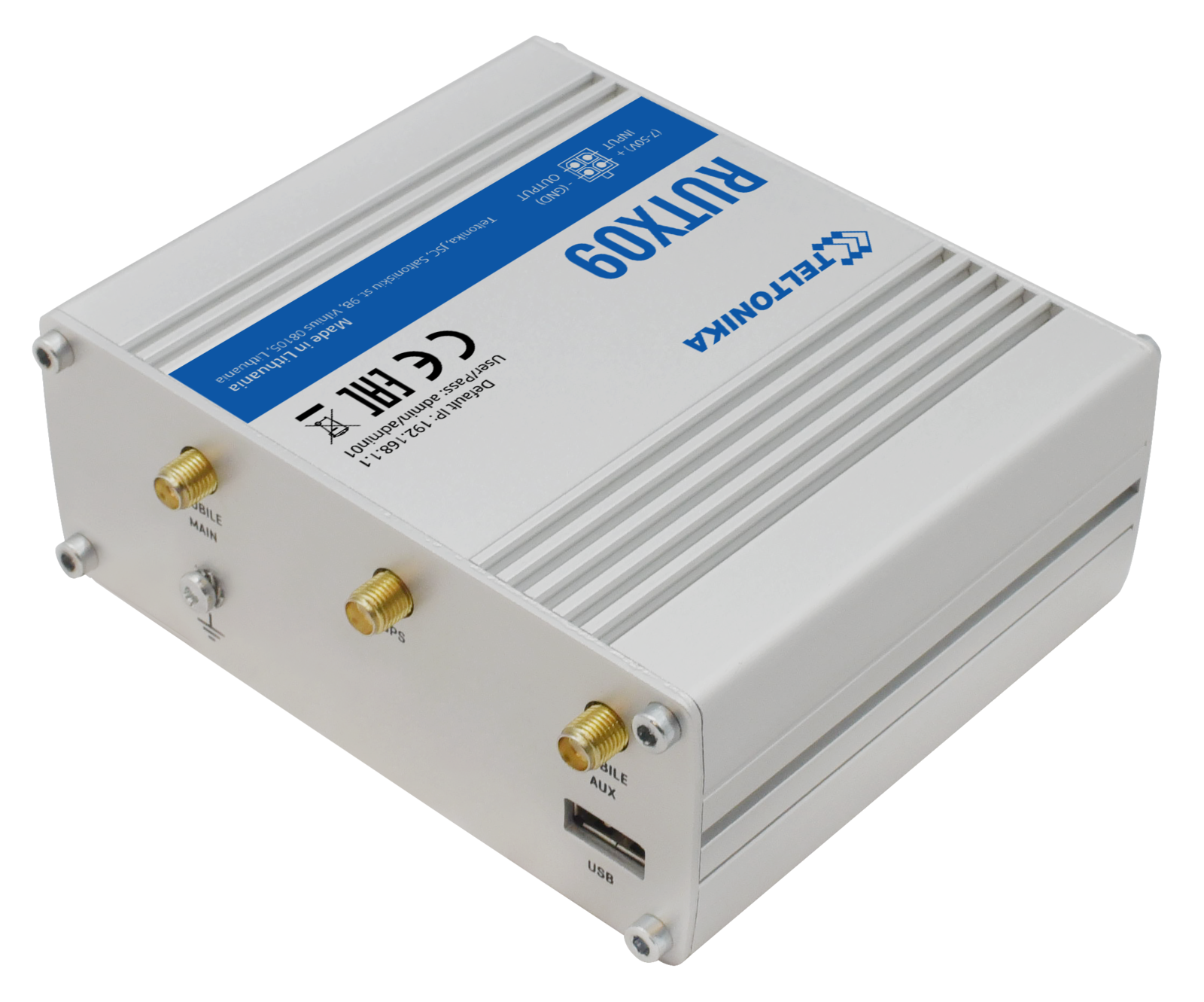

Teltonika RUTX09 - LTE-A Cat6 Modem Router

Key Features

• LTE-A Cat6 cellular IoT router

• Dual SIM Gigabit Ethernet and dual band wifi

• VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system

• Support LTE Cat 6 up to 300 Mbps

• Gigabit Ethernet

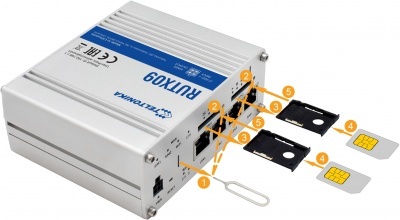

• Dual-SIM with auto Failover, Backup WAN and other SW features

• Teltonika Remote Management System compatible

• Multiple VPN services

Usage

• This LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required

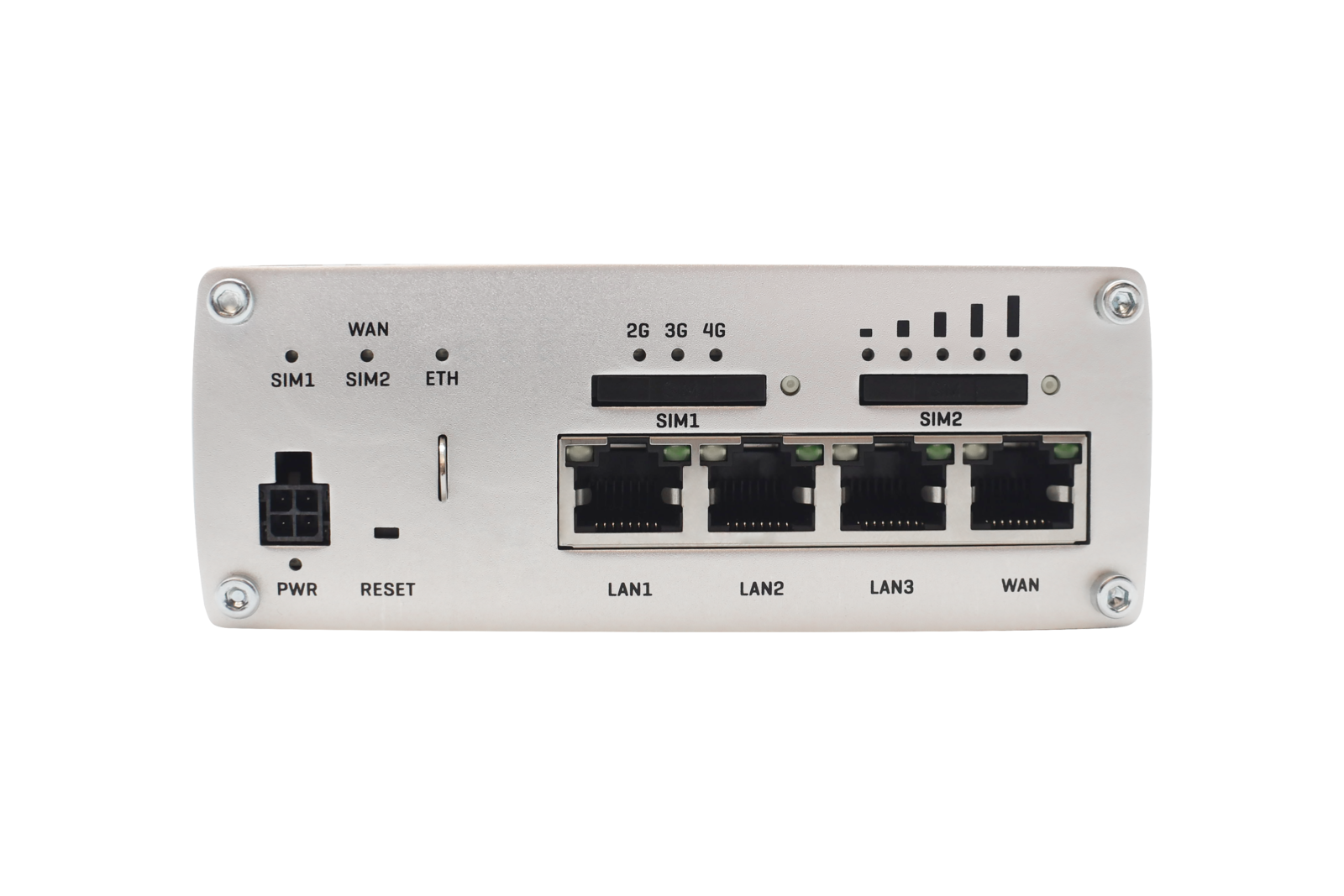

• Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.

Specifications / Frequency

Electrical

• Mobile module: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps

• Input: 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V)

• Output: 1 x Digital Output (open collector type, 30V@0.3A)

• Connector: 4 pin industrial DC power socket

• Input voltage range: 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (passive): Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards

• Power: 4 pin industrial DC power socket

• Power consumption: 11W Max.

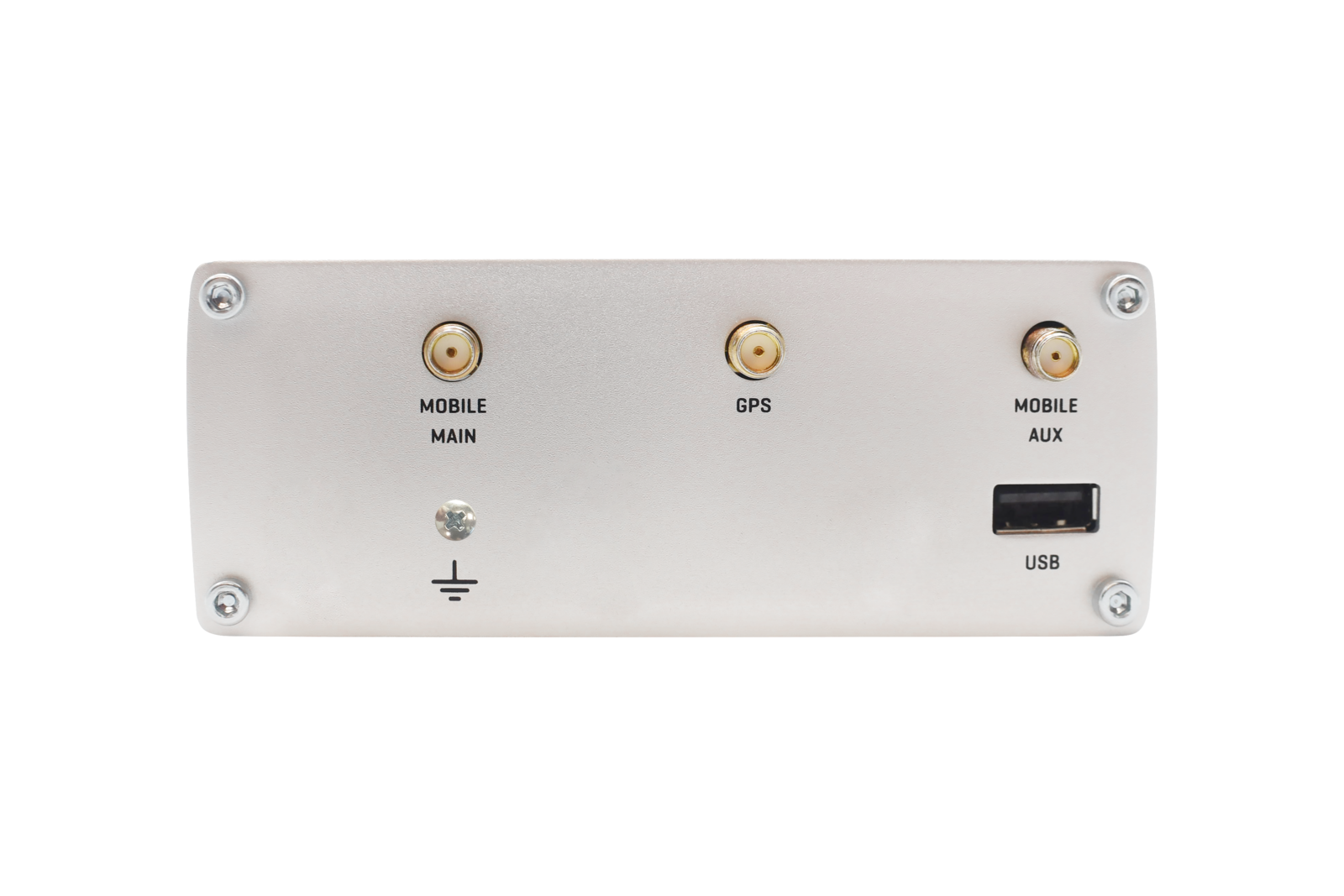

• Antennas: 2 x SMA for LTE, 1 x SMA for GNNS

• Bridge: Direct connection (bridge) between mobile ISP and device on LAN

• Multiple PDN: Possibility to use different PDNs for multiple network access and services

• Band management: Band lock, Used band status display

• OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods

• RMS: Teltonika Remote Management System (RMS)

• Operating system: RutOS (OpenWrt based Linux OS)

Mechanical

• Dimensions: 115 mm x 95 mm x 44 mm (H x W x D)

• Weight: 456g

• Casing material: Full aluminium housing

• Mounting options: DIN rail (can be mounted on two sides), flat surface placement

• Operating temperature: -40 C to 75 C

• Operating humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30
