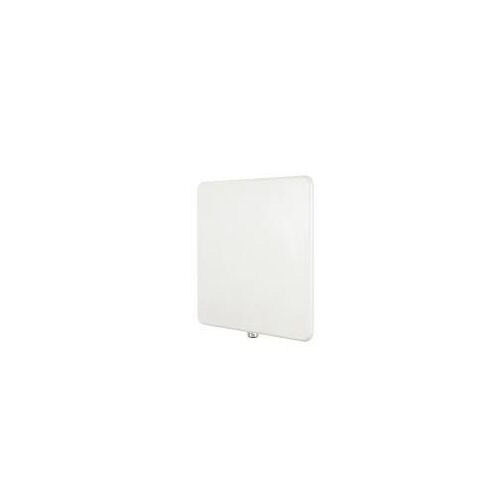

Cambium PTP 450i 23dBi Integrated 5.8GHz Bridge

• Industrial/ISP grade PtP (Master-Slave)
• 200Mbps aggregate on 20MHz bandwidth (10b/Hz)
• 1-3ms typical one-way latency
• 40 years MTBF, IP67 rated
• 4.9 to 6.05GHz selectable operation
• 2x2 MIMO intelligent ODFM, up to 256QAM
• 23dBi integrated antenna option also available
• 10/100/GigE RJ-45 input
• Compatible with BATS Tracking Systems
• True 'five-nines' with hitless adaptive modulation
• 128bit AES Encryption
• 802.3at Compatible 48VDC PoE Injector (supplied).

Cambium PTP 450i radios provide as much as 60 percent higher spectral efficiency than comparable systems. This means you can deliver higher-throughput with minimal spectrum usage. For example, a PTP 450i system can deliver 200 Mbps in a 20 MHz channel versus the typical 100 Mbps offered by other technologies such as 802.11n. In addition, a PTP 650 monitors all available channels and dynamically selects the optimal channel to sustain the highest data rate with the greatest reliability. As a result, the PTP 450i link is always self-optimizing without intervention from an operator. The radios deliver up to 27 dBm transmit power to provide the greatest range. Equally important, the PTP 450i delivers 23dBm at 64QAM and 256QAM to push even the highest performing links to longer distances. Available in Integrated and Connectorized versions, each PTP 450i radio supports multi-band functionality operating between 4.9 and 6.05 GHz radio frequencies, using channel bandwidths ranging from 5, 10, and 20 MHz (where local regulations allow). The Integrated models have a built-in, high-performance directional antenna. Connectorised models can be fitted with separately-purchased, external antennas, including up to 8-foot dishes and spatially diverse configurations. They deliver superior performance over long distances and in extremely adverse environments, including near- and non-line-of-sight scenarios.

Diverse I/O

Input/output features include a fiber interface, out-of-band management, and an auxiliary 1000 BaseT 802.3at PoE output port. The 802.3at output option allows you to power another device such as a video camera or wireless access point at the top of the tower.

Flexible System Management - cnMaestro

Easy to use and deploy, PMP 450i systems contain embedded web servers to manage a link either locally or remotely and are designed to easily integrate with Web or SNMP-based management systems as well as Cambium cnMaestro.

Introducing cnMaestro™ Cloud Management

Cambium Networks cnMaestro management platform is tailor made to simplify management of your Cambium network. A suite of cloud-based tools for network management: inventory management, onboarding devices, daily operations and maintenance. cnMaestro™ offers full visibility across the entirety of a network including distributed WiFi, point to point/multipoint, and microwave backhauls. For those managing many networks, the Google Maps integrated management system allows you to manage hundreds of customer networks from any web browser.

Hierarchical Dashboards

Visualize your devices from tower to edge with customized dashboards for each device type. Advanced Troubleshooting Display tower-to-edge status in a single graphic, view Wi-Fi client details and health, and troubleshoot client connectivity directly on the AP.

Notifications

View immediate status with stateful alarms, and troubleshoot customer issues by filtering on alarm history and reviewing events Device Inventory Access your devices at the system level, or by network, tower, or sector. Device data can be exported in PDF or CSV formats. Please call for pricing and design assistance.
