BNC Female to N Female Adaptor



BNC Jack to N Jack

BNC Socket to N Socket



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.





Specifications



Electrical Specifications





  • Resistance: 50Ω

  • Frequency Range: DC-4GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles
  • Body Material: Brass
  • Plating Material: Nickel
  • Pin/Socket Contact: Brass/Beryllium-Copper
  • Pin/Socket Plating: Gold/Gold
  • Insulator: PTFE
  • Operating Temperature: -55° to 155° C
  • CECC 22120
  • CECC 22210
  • MIL-C-39012
  • IEC-60169-8
  • IEC-60169-16

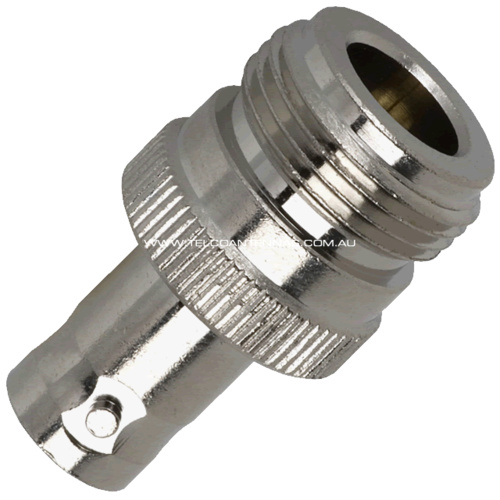

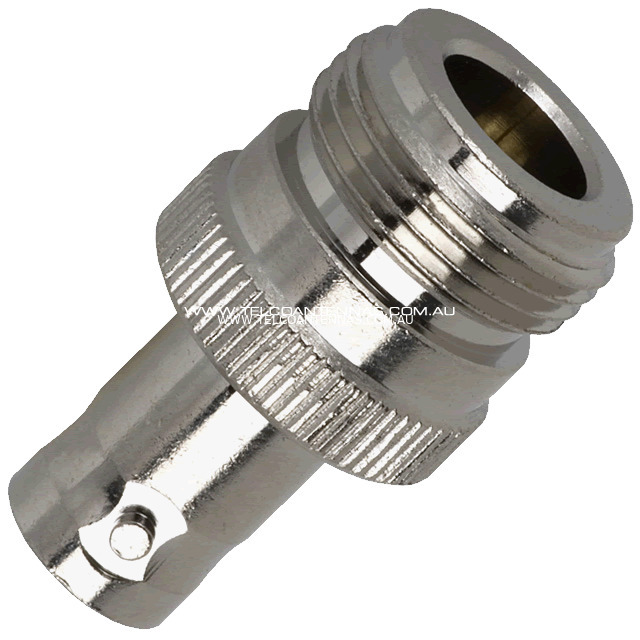

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(NF-BNCF-AD)

SKU NF-BNCF-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
