RP-SMA Male to N Male Adaptor


RP-SMA Plug to N Plug

RP-SMA Pin to N Pin



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.



Automatic Price Breaks



  • The price listed for this item is for a quantity of 1-24 units

  • Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered

  • For large orders please contact our sales team to arrange a quote.



Discounts:

  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount



Specifications



Electrical Specifications





  • Resistance: 50Ω

  • Frequency Range: DC-11GHz

  • Working Voltage: 335V RMS

  • Withstand Voltage: 1000V RMS

  • Insertion Loss: <0.24dB/3GHz

  • VSWR: <1.15:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel/Gold

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold/Gold

  • Insulator: PTFE

  • Operating Temperature: -40° to 85° C

  • CECC 22210

  • CECC 22110

  • MIL-C-39012

  • IEC-60169-16

  • IEC-60169-15

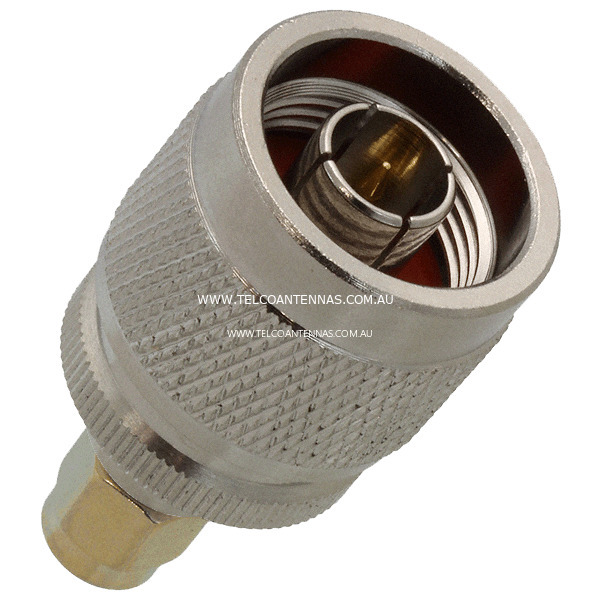

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(NM-RPSMAM-AD)

SKU NM-RPSMAM-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
