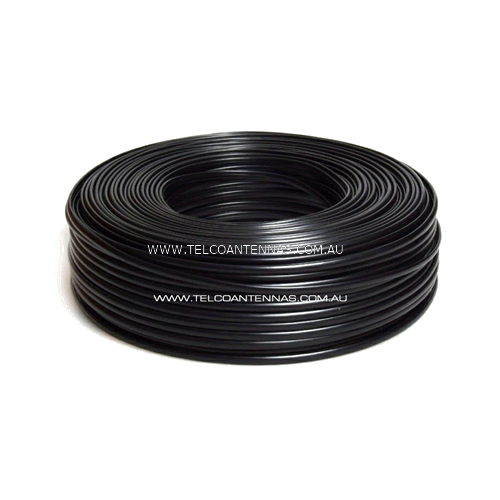

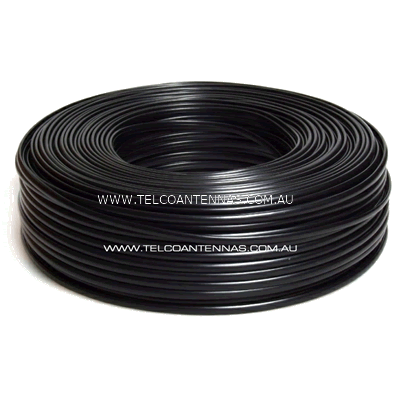

100 Metre Reel RG58 Low Loss 50 Ohm Coaxial Cable



Key Features



  • RG58/U 50Ω cabling

  • High quality low frequency antenna Coaxial cable

  • Wooden spool not supplied

  • Buy bulk and save.



Usage



  • The most common type of Coaxial cable encountered for lower frequency systems like VHF, UHF, and some mobile antennas



A heads up



  • It's likely the Coaxial cable supplied with your antenna is RG58. It's flexible, has good performance characteristics, and is cheap.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Signal Loss:

    • 0.46dB/m @ 850MHz

    • 0.76dB/m @ 2100MHz

  • Frequency Range: 0-6GHz

  • Velocity of Propagation: 77%

  • Nominal Delay: 4.19ns/m



Mechanical Specifications



  • Conductor Diameter: 0.9mm

  • Insulating Material: Gas-injected FHDPE

  • Outer Shield Material:

    • (1) Aluminum Foil-Polyester Tape-Aluminum Foil 100% Coverage

    • (2) Tinned Copper 90% Coverage

  • Outer Jacket Material: Polyethylene (5mm)



(RG58-100M-REEL)

SKU RG58-100M-REEL
Shipping Weight 4.5000kg
Shipping Width 0.300m
Shipping Height 0.250m
Shipping Length 0.300m
Shipping Cubic 0.022500000m3
