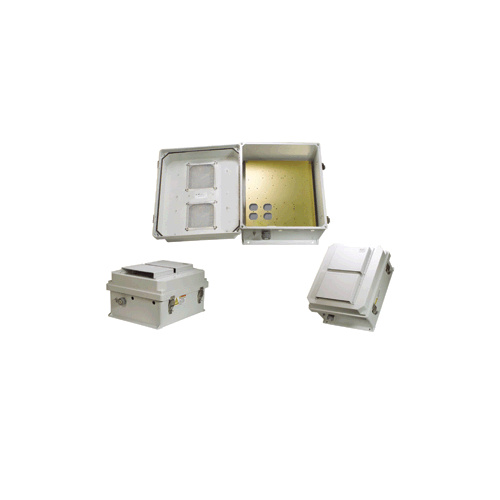

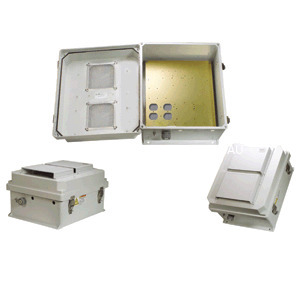

14" Weatherproof Enclosure with Vent & Mount Plate



Key Features



  • Industrial grade moulded FRP enclosure

  • Stainless steel quick release latches with padlock hasps

  • NEMA Type 3R, 3RX / IP24 rated

  • Fully gasketed raised Vented lid with removable filters & integral mounting flange

  • Includes drilled aluminum mounting plate with AC socket cutouts.



Usage



  • The box is a rugged weatherproof enclosure that is ideal for indoor and outdoor applications

  • Constructed from molded fiberglass reinforced polyester, it is suited for high temperature or corrosive environments

  • The mounting flange allows it to be wall mounted as well as on a flat surface

  • The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps

  • The raised lid is fully gasketed

  • The enclosure material is UV stabilised and comes in machine tool grey

  • The enclosure also features holes for two N-Bulkhead lightning protectors or connectors, a grounding lug and cable conduit connector.



fibreglass reinforced polymer industrial enclosure



Specifications



Mechanical/Environmental



  • Mounting Plate Material: 2.5mm Anodised Aluminium

  • Mounting Plate Dimensions: 322 x 274mm

  • Outside Dimensions (max): 393 x 342 x 220mm

  • Inside Dimensions: 343 x 292 x 147mm

  • Weight: 6.0kg

  • Flame Rating: UL 94-5V

  • Cable Feed: 1/2”

  • Cable Conduit Connector Ratings: NEMA Type 3R; 3RX / IP24

  • RoHS Compliant.



Read More



(NB141207-00V)

SKU NB141207-00V
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.290m
Shipping Length 0.360m
Shipping Cubic 0.031320000m3
