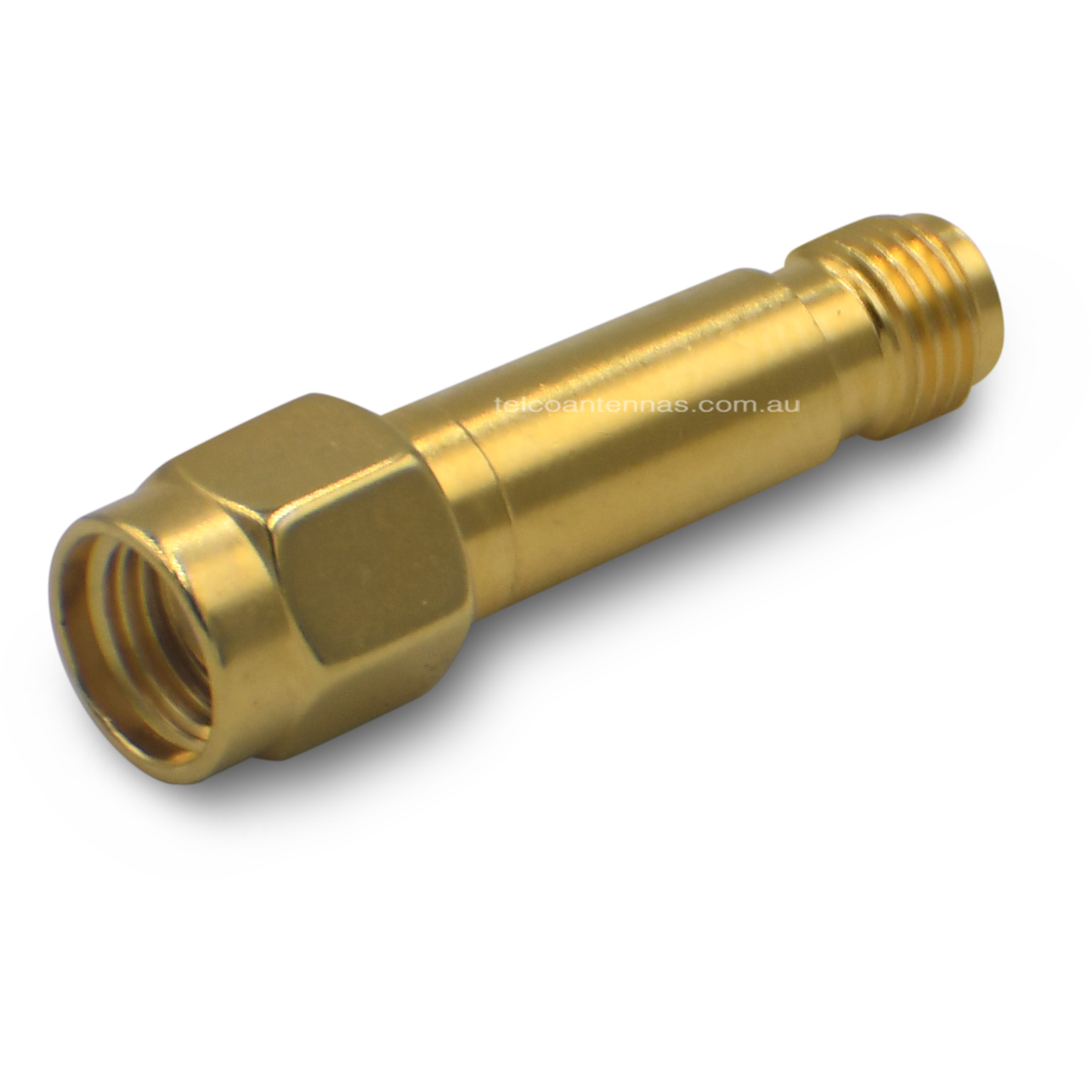

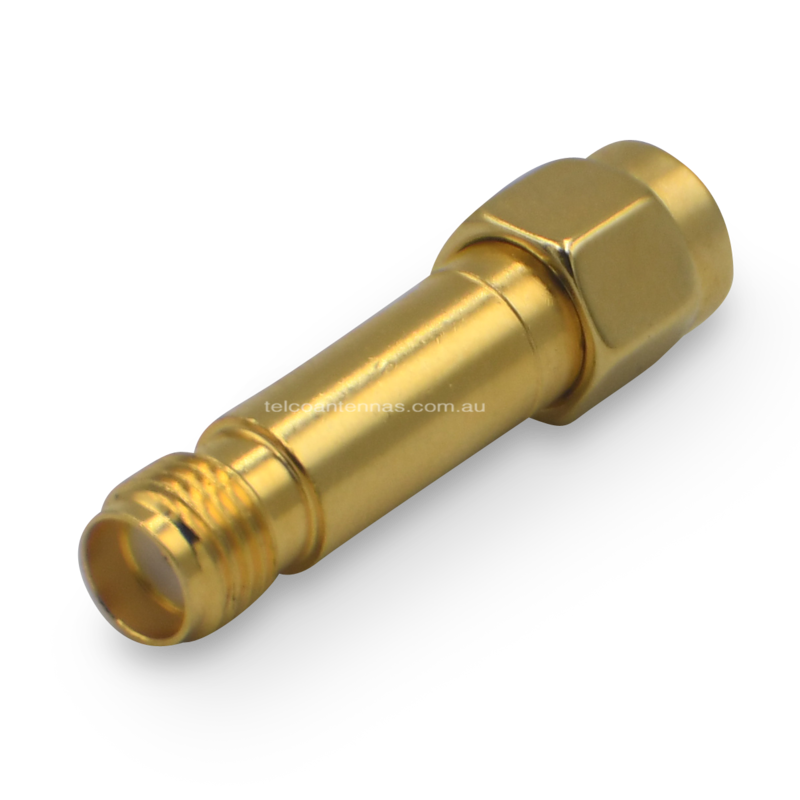

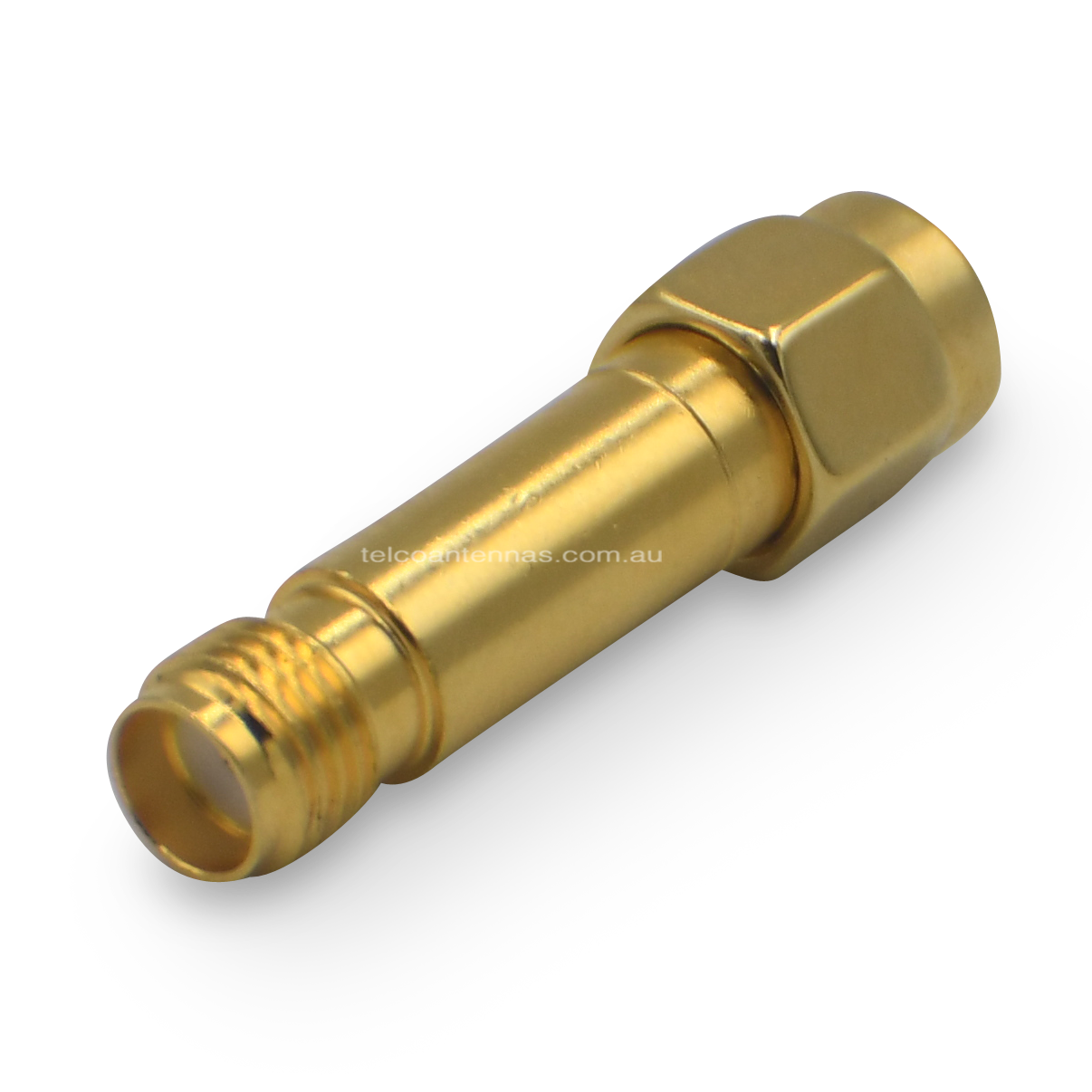

RP-SMA Male to SMA Female Adaptor


RP-SMA Plug to SMA Jack

RP-SMA Pin to SMA Socket



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.



  • For large orders please contact our team to arrange a quote.







Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Specifications






Electrical Specifications

Resistance: 50Ω
Frequency Range: DC-12.4GHz
Working Voltage: 335V RMS
Withstand Voltage: 1000V RMS
Insertion Loss: <0.15dB/3GHz
VSWR: <1.2:1

Mechanical/Environmental Specifications

Durability: >500 cycles
Body Material: Brass
Plating Material: Gold
Pin/Socket Contact: Brass/Beryllium-Copper
Pin/Socket Plating: Gold/Gold
Insulator: PTFE
Operating Temperature: -55° to 155° C
CECC 22110
MIL-C-39012
IEC-60169-15


tick rohs compliant lead free

(SMAF-RPSMAM-AD)

SKU SMAF-RPSMAM-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
