SMA Female to TS9 Adaptor

SMA Jack to TS9 Plug

SMA Socket to TS9 Pin



What is an adaptor?



A coaxial adaptor can be either inter-series or intra-series.



  • An inter-series (also known as between-series) adaptor is used to convert one type of connector into a different series connector.

  • An intra-series (also known as within-series) adaptor is used to connect two devices or cables of the same series, cable joiners and bulkheads are the most common type of intra-series adaptors.







Specifications / Frequency



Electrical Specifications



  • Impedance: 50Ω

  • Frequency Range: DC-3GHz

  • Working Voltage: 170V RMS

  • Withstanding Voltage: 500V RMS

  • Contact Resistance

  • - Centre Contact <3mΩ

  • - Outer Contact < 2mΩ

  • Insulation Resistance: > 1000MΩ

  • VSWR: < 1.25/1GHz



Mechanical Specifications



  • Temperature Range: -55°C to + 155°C

  • RoHS Compliant

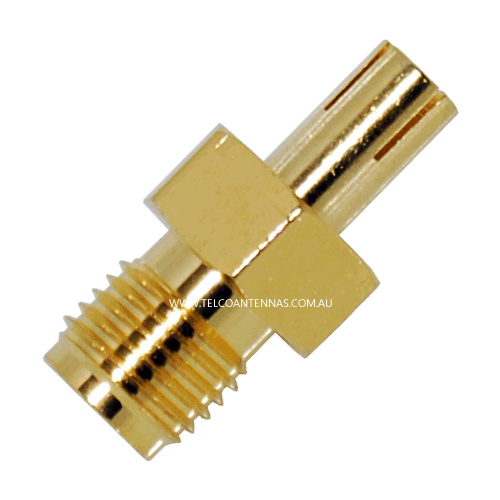

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.


tick rohs compliant lead free

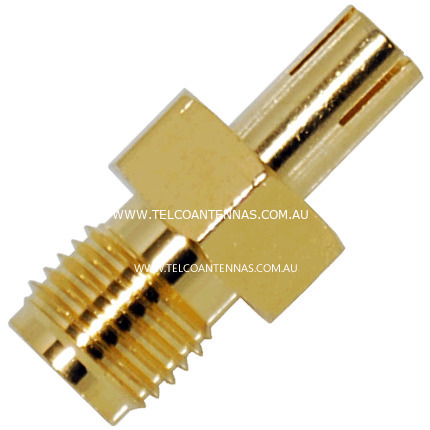

(SMAF-TS9M-AD)

SKU SMAF-TS9M-AD
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
