Starlink Draw Bar Mount with Telescopic Aluminium Mast 3.8m

Key Features



Draw Bar Mount:

  • Suits masts up to 40mm in diameter
  • Two M12 grub screws to secure mast into position
  • 90° swivel to stowe mast while not in use
  • Multi hole mounting plate to suit Drawbars from 50mm - 150mm

3.8m Telescopic Mast:

  • 3mm thick aluminium tube construction with UV stable HDPE fittings
  • Adjustable length from 2.1m up to 3.8m
  • Bottom 40 x 3 mm Top 32x 3mm
  • Folds down to 2.1mm height
  • Includes machined and threaded Starlink Adaptor with Grub Screw locking
  • Remove the Adaptor to lower mast to 1.8m for storage



Usage

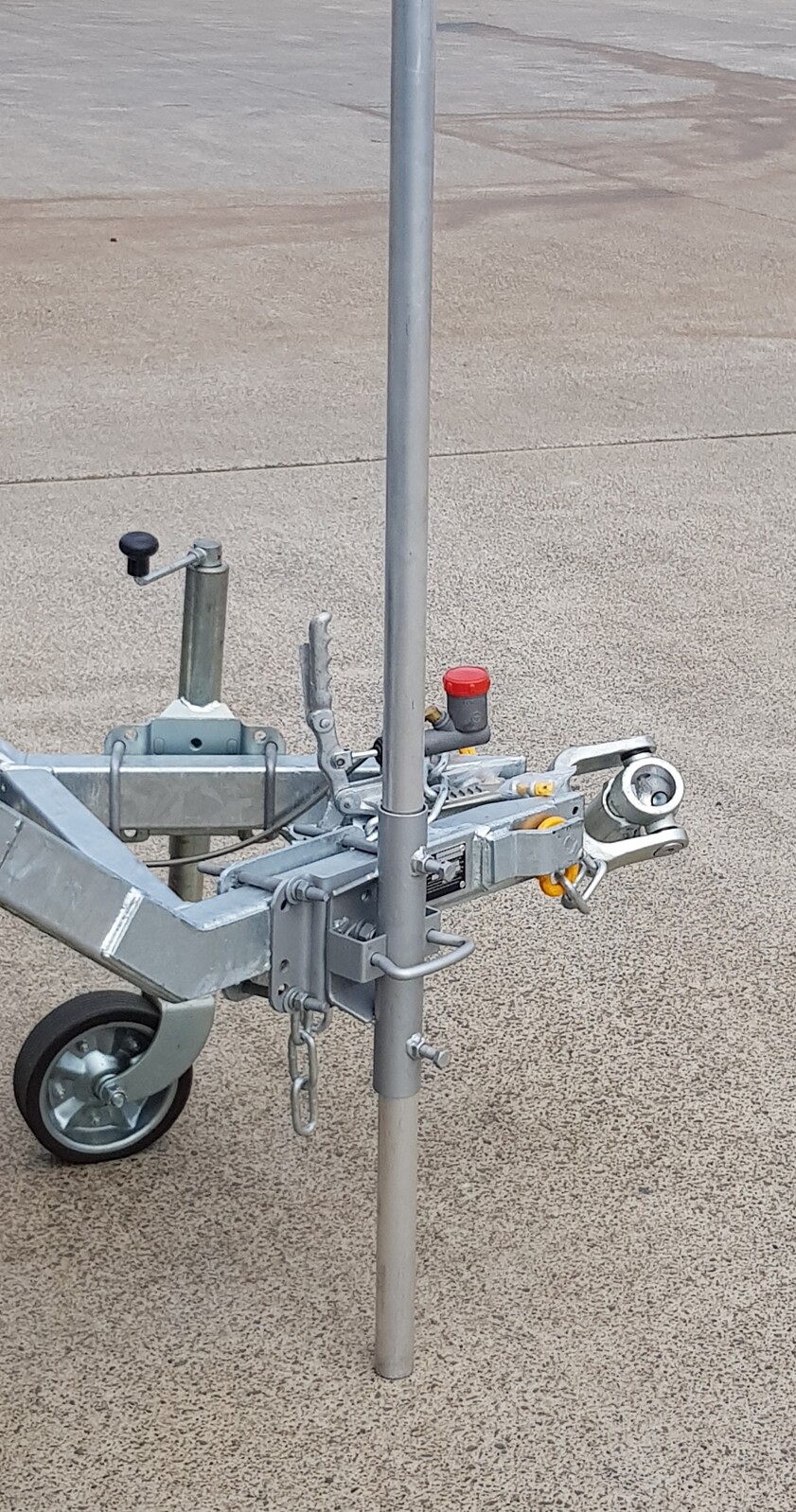

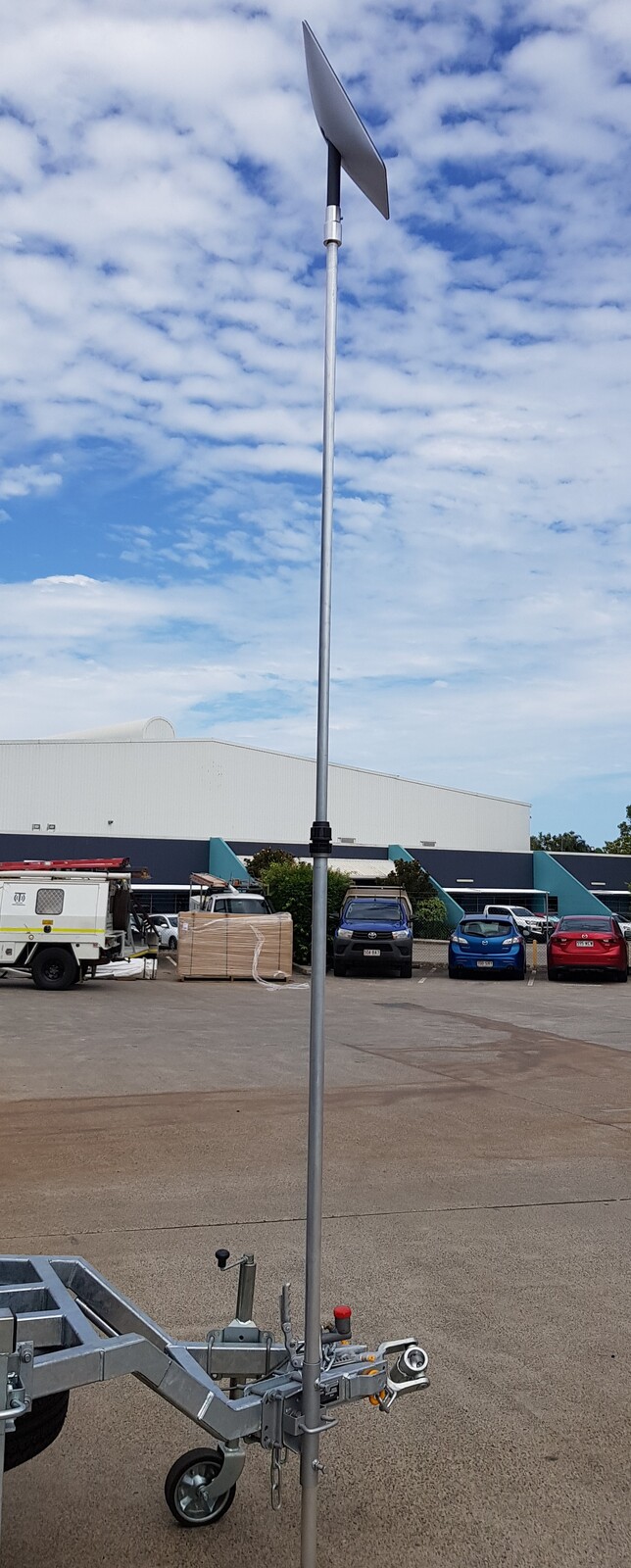

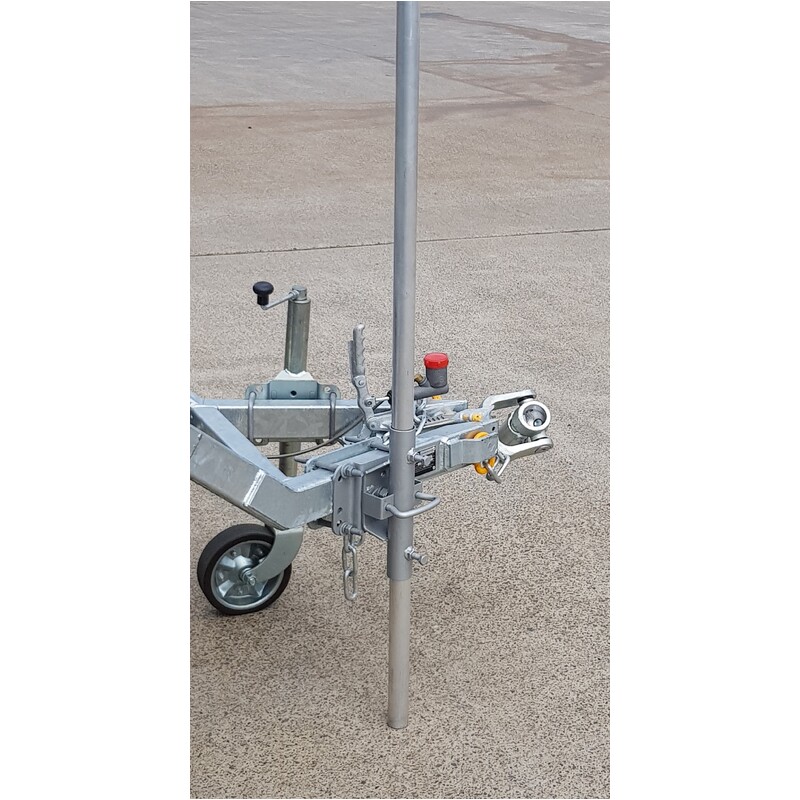

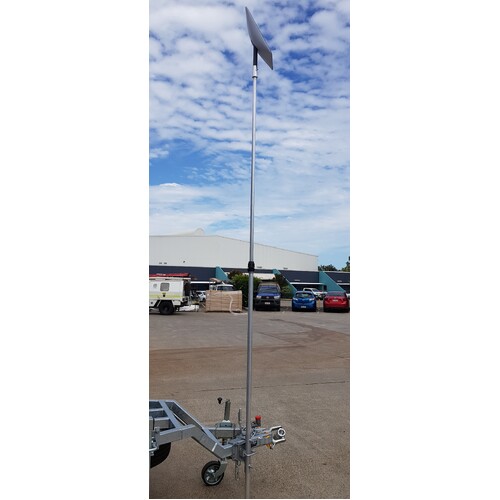

  • This draw bar mount is designed to support our telescopic mast allowing you to raise your antenna up to 3.8m high

  • The versatile design suits a multitude of purposes and has been fabricated with caravans in mind and is particularly adept in this role

  • The high quality telescopic mast system is designed and manufactured by Telco to fill the need for a durable heavy duty, but lightweight vehicle mast for Starlink Satellite mounting.

A heads up!

Please use Petroluem Jelly between adaptor and mast, as after time the Aluminium sections will bond together.

Important

Special Delivery Information:

  • This product can only be delivered by a courier (not Australia Post), therefore we cannot accept a PO Box.

  • Please provide an address where someone will be present to sign for the package.



(TF-Star-DB)

SKU TF-Star-DB
Shipping Weight 13.0000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 2.300m
Shipping Cubic 0.044850000m3
