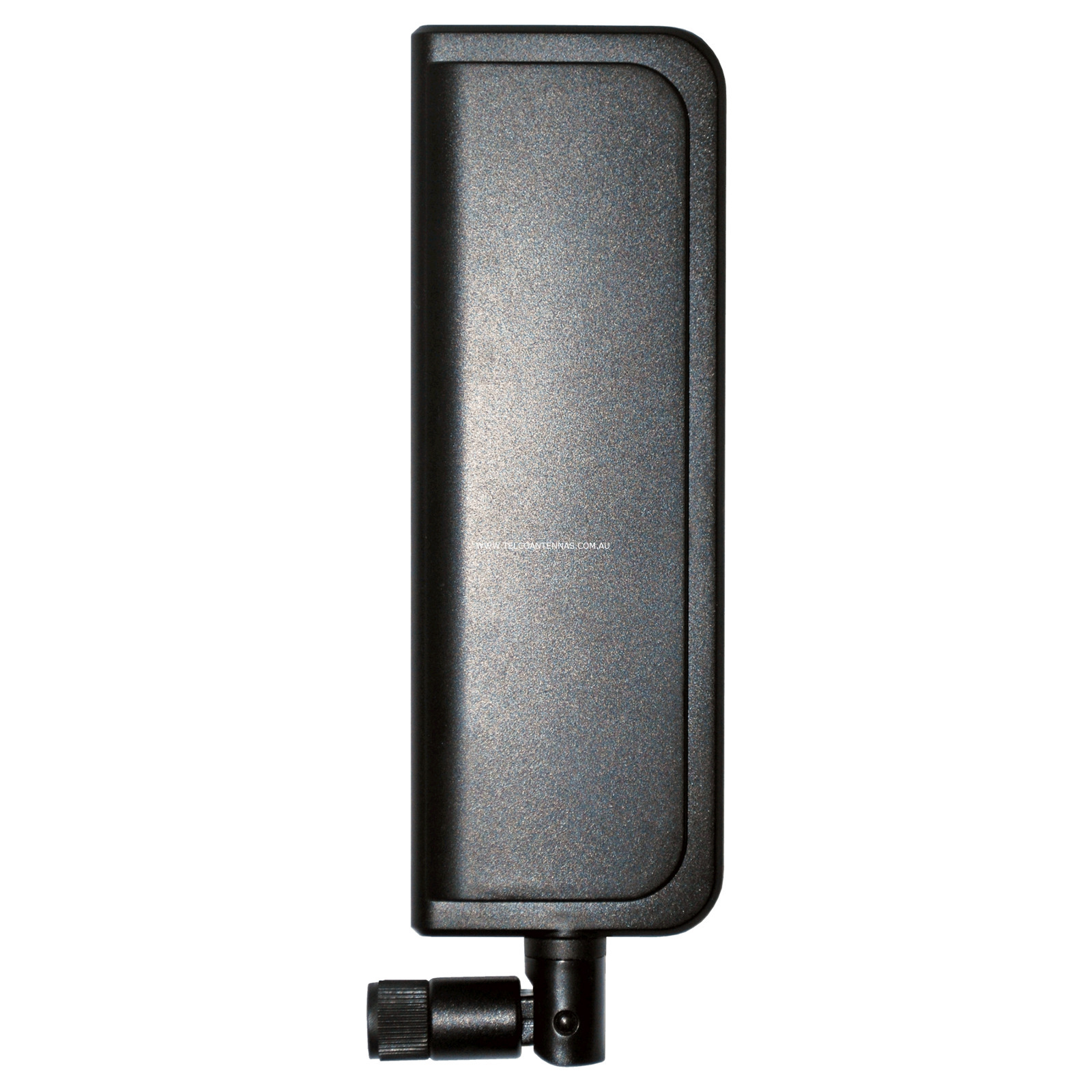

Taoglas TG.30 Apex Hinged 700-2800MHz Dipole Antenna

Key Features

• Ultra wideband 700-2800MHz + GPS

• Ideal terminal antenna for modems, WiFi routers, GPS units, etc.

• IP67 UV stable housing

• Suits 2G/3G/4G/WiFi/GPS M2M applications.

Usage

• Primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2G/3G/4G) bands worldwide for access points, terminals and routers

• This is a ground plane independent antenna with an SMA Male connector and swivel mechanism that allows the antenna part to be rotated

• It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals

• The swivel and hinge mechanism allows the antenna part to be orientated in different directions helping to avoid touching other close by antennas or objects - it also helps isolation by orientating the antenna in different directions in MIMO systems for when other TG.30 antennas are present on the same device

• The antenna blade can swivel 90 degrees from the connector accommodating different installation environments

• Also available with straight and right angle connectors.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2.6dBi
Optus 4G+ (700MHz)		2.6dBi
Telstra Next-G™ (850MHz)		1.5dBi
New Vodafone 4G (850MHz)* *Please check Vodafone Coverage Map		1.5dBi
Optus Regional 3G (900MHz)		1.5dBi
Vodafone Regional 3G (900MHz)		1.5dBi
Telstra/Optus/Voda 4G (1800MHz)		2.7dBi
All Carriers - Urban/Metro 3G (2100MHz)		3.1dBi
802.11 b/g/n/ac WiFi (2400MHz)		2.0dBi
Telstra 4GX Band 7 (2600MHz)		2.0dBi

Electrical Specifications

• Frequency Range: 700-800MHz / 824-960MHz / 1575.42MHz / 1710-2170MHz / 2400-2800MHz

• Input Impedance: 50Ω VSWR: <2.5:1

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: UV Stabilised PC/ABS

• Connector: SMA Male Hinged 90°

• Thermal Shock: -40°C to +85°C

• Weight: 45g

• Dimensions: 49 x 10 x 162.5mm (L x W x H)

• Mounting: Terminal
