Taoglas Barracuda OMB.6912.03F21 4G 4dBi Omnidirectional Outdoor Antenna

Key Features

• Omni-Directional Radiation Pattern
• 4dBi Peak gain
• Covers all 4G bands
• Robust design for all weather operation
• IP65 waterproof
• 320mm in length, 150g weight
• N Type Female connector
• Mounting bracket Included
• RoHS compliant

Usage

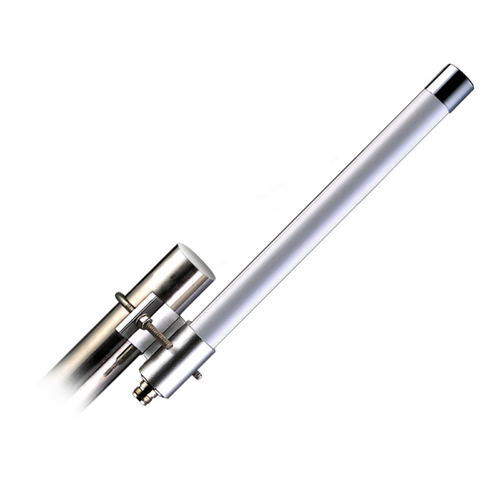

• The OMB.6912.03F21 is a 4G fiberglass omnidirectional outdoor antenna that operates across the global 4G frequency bands of 698-960 MHz and 1710-2700 MHz, featuring a maximum gain of 4 dBi.
• This collinear dipole array antenna is specifically engineered for outdoor use, facilitating connections through 4G routers and modules. Its compact design, measuring 320 mm in length and 70 mm in diameter, allows for easy and discreet installation in various locations, especially when compared to conventional fiberglass omnidirectional antennas, which are typically twice as large.
• This omnidirectional antenna provides uniform radiation in the azimuth plane, ensuring extensive coverage and reducing the number of nodes required for an effective radio network.
• Constructed with UV-resistant fiberglass, the OMB series antenna is suitable for deployment in challenging weather conditions, offering enhanced durability and safety compared to traditional whip antennas.
• While its primary operational frequency range is from 698 MHz to 2170 MHz, it is also compatible with applications in the shorter 2600 MHz range.
• Installation options for the antenna include wall mounting using the pre-installed bracket or pole mounting with the included U-bolt.

Specifications / Frequency

Read More

• Specification Sheet
