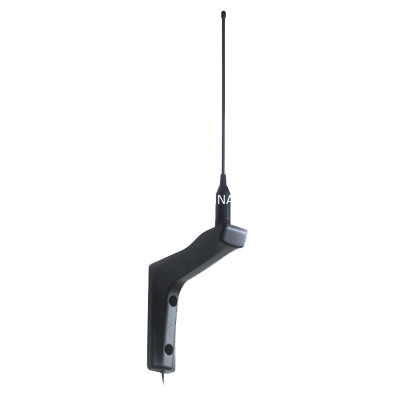

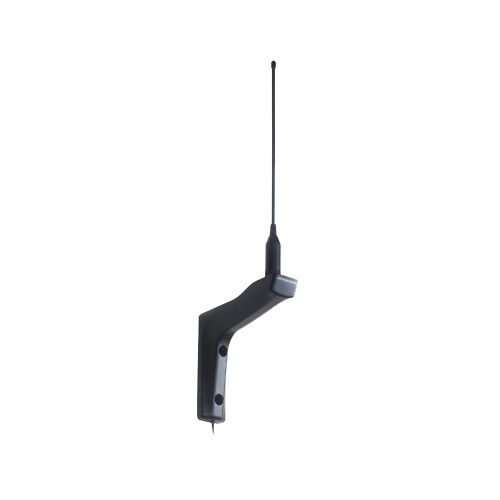

Taoglas Cyclops WM.90 3G+4G+4GX Cellular Flexible Whip, SMA(M)

Key Features

• 700MHz to 2700MHz

• Robust steel-core design

• High electrical efficiency

• IP67 Certified.

Usage

• The WM.90 wall mount flexible whip monopole has high performance on all common 2G/3G/4G bands used worldwide

• Taoglas specifications are compiled completely from real-life testing in state of the art CTIA approved 3D anechoic chambers

• Peak gain, average gain/efficiency are both optimised to provide extended coverage area in the azimuth (horizontal direction), while also maintaining an omni-directional pattern for close in reception/transmission

• Testing of the whip antenna on the bracket, in free-space, and on a reference ground-plane has been done to show the benefit of the L-bracket

• The bracket allows complete concealment of the cable for a more secure integration and cleaner installation

• The cable can also be routed out of the back wall of the bracket into the interior of the mounting wall for added security against vandalism

• The standard version comes with 3 metres extremely low loss CFD200 (0.3dB against 0.7dB for RG58) to allow for flexibility of placement

• The cable and connector can be completely customised, the whip itself can also be changed for different frequency bands or gain requirements.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		-1.11dBi
Optus 4G+ (700MHz)		-1.11dBi
Telstra Next-G™ (850MHz)		2.53dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		2.53dBi
Optus Regional 3G (900MHz)		1.80dBi
Vodafone Regional 3G (900MHz)		1.80dBi
Telstra/Optus/Voda 4G (1800MHz)		1.81dBi
All Carriers - Urban/Metro 3G (2100MHz)		2.22dBi
Optus 4G TDD (2300MHz)		2.0dBi
802.11 b/g/n/ac WiFi (2400MHz)		2.0dBi
Telstra Metro 4GX (2600MHz)		1.8dBi

Electrical Specifications

• Frequency Range: 698-960MHz 1710-2690MHz

• Input Impedance: 50Ω

• Input Impedance: 2W

• Max Input Power: Vertical Linear

Mechanical/Environmental Specifications

• Construction: Steel Core, ABS Casing

• Cable: 3m CFD200

• Connector: SMA Male

• Operating Temperature: -40°C to +85°C

• Weight: 0.420kg

• Dimensions: 248 x 17.08mm (Height x Dia)
