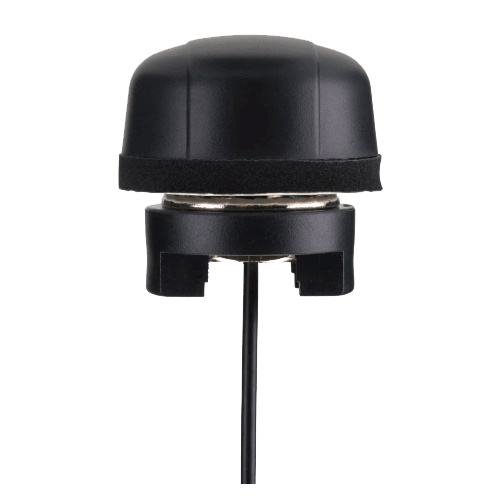

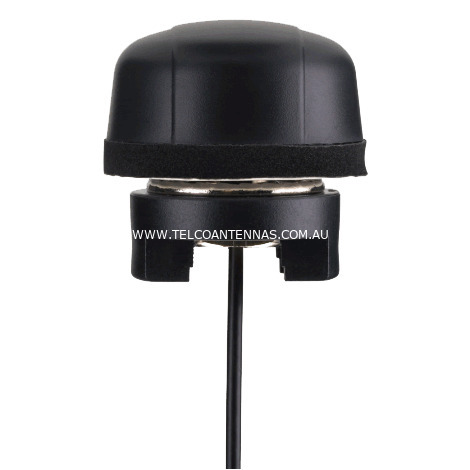

Taoglas Hercules G21 Heavy Duty Vandal Proof Mobile Antenna



Key Features



  • Pentaband 850/900/1800/1900/2100 MHz

  • Extremely low profile 29mm height

  • IP67 and IP69K ingress proof

  • Extreme vandal & direct attack resistance

  • Ground plane dependent.



Usage



  • The G21 (Generation II) Hercules is a high performance steel thread-mount Penta-band cellular antenna for external use on vehicles and outdoor assets worldwide

  • Omni-directional high gain across all bands ensures constant reception and transmission

  • Durable UV resistant PC housing is resistant to vandalism and direct attack

  • At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm

  • Designed to not catch on tree-branches. This antenna can be mounted on metal structures.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra Next-G™ (850MHz)
compatible
1.8dBi
New Vodafone 4G (850MHz)* *Please check Vodafone Coverage Map
compatible
1.8dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
0.8dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
0.8dBi
Telstra 4G (1800MHz)
compatible
1.3dBi
Optus 4G (1800MHz)
compatible
1.3dBi
All carriers - 3G internet (2100MHz)
compatible
1.5dBi



Electrical Specifications



  • Frequency Range: 824-960MHz / 1710-2170MHz

  • Input Impedance: 50Ω

  • VSWR: <3.5:1

  • Vertical Beamwidth: 60°

  • Radiation: Omnidirectional

  • Maximum Power: 10Watts



Mechanical/Environmental Specifications



  • Construction: Black polycarbonate radome, Nickel plated steel

  • Cable: 3m RG174

  • Connector: SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 0.17kg

  • Dimensions: 29 x 49mm (H x Diameter)

  • Mounting: 18mm thread stud



Read More





(G21.B.301111)

SKU G21.B.301111
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
