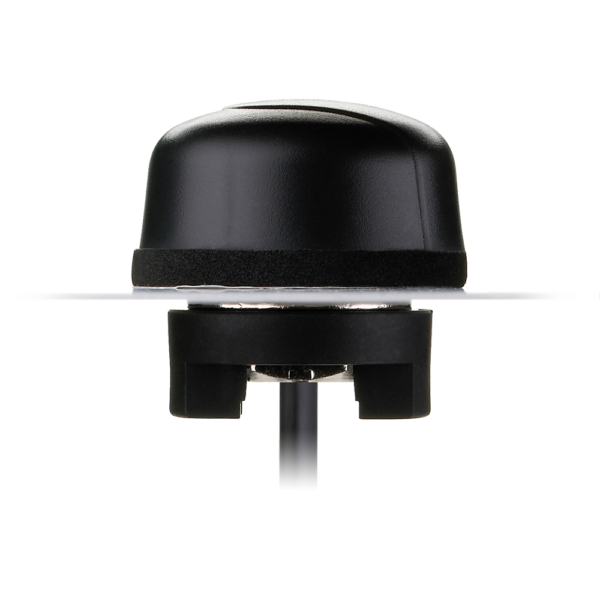

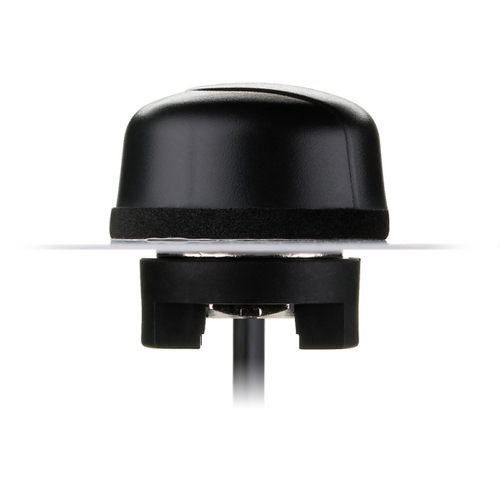

Hercules –Low Profile Wi-Fi 6 Permanent Mount Antenna Covering Frequencies 2.4 – 2.5 / 5.1 - 5.8 / 5.9 - 7.125GHz

Key Features

• Low Profile Permanent Mount Antenna

• Covers 2.4/5.8GHz as well as Wi-Fi 6 Frequencies: 5.9-7.125GHz

• UV and Vandal Resistant ABS Housing

• IP65 Rated Enclosure

• Dimensions: Ø49 x 29mm

• Connector: RP-SMA Male

• Cable: 3m of TGC-200

• RoHS & Reach Compliant

Usage

• The Hercules WS.03 is a high efficiency, high gain permanent mount antenna designed to cover all Wi-Fi bands including frequencies for Wi-Fi 6, up to 7.125GHz.

• It has omni-directional gain across both bands ensures constant reception and transmission making the WS.03 an ideal solution for varied Wi-Fi applications.

• The Hercules has been designed for the most robust of use in challenging environments, with durable UVresistant ASA housing that is IP65 rated, resistant to vandalism and with heavy duty work with extra thick thread for secure mounting.

• At only 29mm high, with a diameter of 49mm, it is low profile and covert Antenna for WiFi Deployments.

• Typical Applications Include:
  - Remote Monitoring
  - Gateways and Routers
  - HD Video Streaming
  - Smart Cities

• Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module.

• Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device.

• So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Specifications / Frequency

Electrical Specifications

• Frequency Range: 2400-2500MHz / 5180-5850MHz / 5925-7125MHz

• Peak Gain: 3.25dBi / 5.25dBi / 6dBi

• Radiation: Omnidirectional

Mechanical/Environmental Specifications

• Construction: UV resistant PC, Nickel plated steel

• Cable: 3000mm NFC-200

• Connector: RP-SMA Male

• Dimensions: 29 x 49mm (Height x Diameter)

• Mounting: 18mm thread stud
