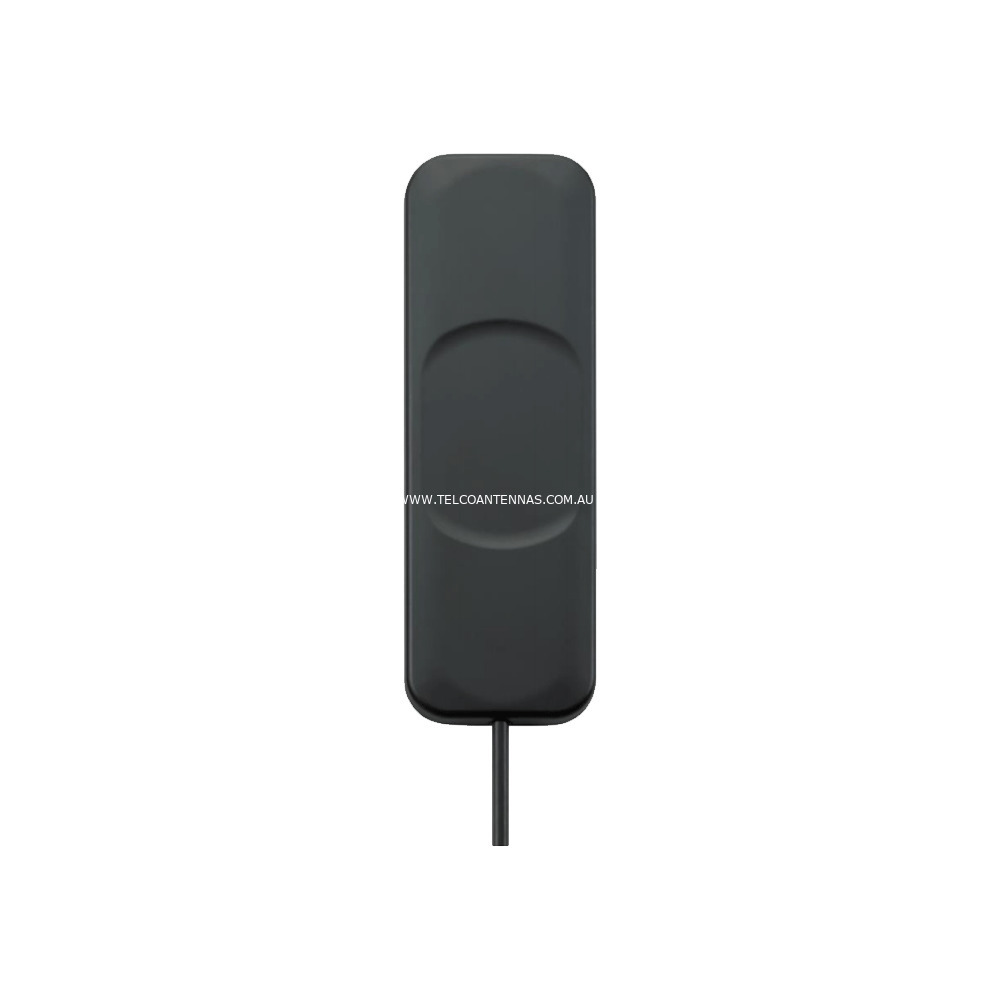

Taoglas I-Bar GSA.8841 2G/3G/4G LTE Adhesive Mount Antenna



Key Features



  • Ultra-wide bandwidth 700-6000MHz

  • Passive GPS

  • Low profile 17.6mm height

  • UV and vandal resistant ABS housing.



Usage



  • The GSA.8841 LTE Wideband I-Bar Antenna is an external adhesive mount solution on glass and plastic for automotive and telematics applications

  • It covers not only LTE, but all Cellular, ISM and Wi-Fi working frequencies in the 700-6000 MHz spectrum

  • It has the highest wide-band efficiency in its range of any antenna in its category today

  • The GSA.8841 is backward compatible with 3G and 2G cellular applications such as HSPA, as well as covering WI-FI bands, and even has GPS included for E911 applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
1.36dBi
Optus 4G+ (700MHz)
compatible
1.36dBi
Telstra Next-G™ (850MHz)
compatible
1.36dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
1.36dBi
Optus Regional 3G (900MHz)
compatible
1.36dBi
Vodafone Regional 3G (900MHz)
compatible
1.36dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
3.40dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
2.69dBi
Optus 4G TDD (2300MHz)
compatible
2.69dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
3.85dBi
Telstra 4GX (2600MHz)
compatible
4.30dBi
802.11 n/ac WiFi (5800MHz)
compatible
2.06dBi



Electrical Specifications



  • Frequency Range: 700-6000MHz

  • Input Impedance: 50Ω

  • VSWR: <3.0:1

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications



  • Construction: ABS Cable: NFC-200 Low Loss

  • Cable - 1 Meter Standard

  • Connector: SMA Male Standard, Fully Customisable Operation

  • Temperature Range: -40°C to 85°C

  • Dimensions: 176mm x 59mm x 11.6mm (Height x Length x Width)



Read More





(GSA.8841.A.105111)

SKU GSA.8841.A.105111
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.210m
Shipping Cubic 0.002499000m3
