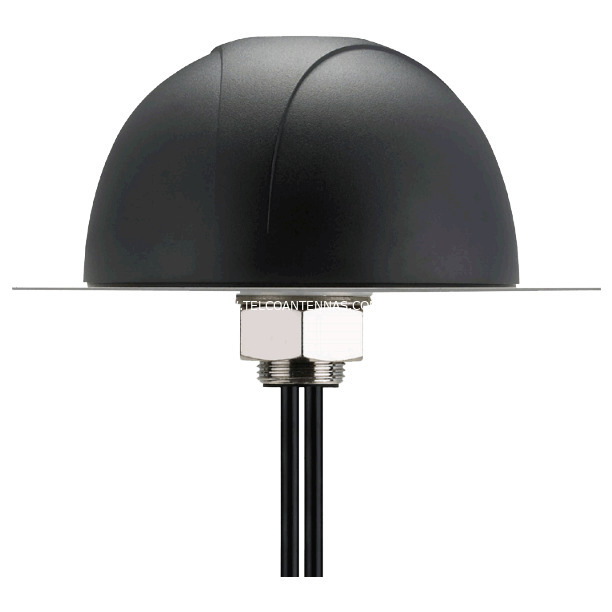

Taoglas Pantheon Heavy Duty M2M MIMO Antenna

Key Features

• 2-in-1 combination antenna (2x SMA Male)

• Covers all 2G, 3G, and 4G bands 700-3500MHz

• 2X2 MIMO 2.4GHz WiFi

• True MIMO dual antenna operation

• Low profile 86mm height

• IP67, vandal resistant design

• Ground plane dependent.

Usage

• The MA.741 Pantheon LTE 2X2 MIMO antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications

• It includes two LTE MIMO antennas, with the highest efficiency and peak gain possible

• This is necessary for today’s high speed data uplink and downlink systems in applications such as real time video, for maximum throughput and highest SINR ratio

• The antenna elements operate at all common 2G, 3G and 4G LTE bands worldwide 698-960MHz, 1710-2170MHz, 2300~2700MHz, 2900-3500MHz

• The housing is an extremely robust IP67 direct mount antenna package with excellent isolation (10dB+)

• The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2.45dBi
Optus 4G+ (700MHz)		2.45dBi
Telstra Next-G™ (850MHz)		2.35dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		2.35dBi
Optus Regional 3G (900MHz)		1.10dBi
Vodafone Regional 3G (900MHz)		1.10dBi
Telstra/Optus/Voda 4G (1800MHz)		2.01dBi
All carriers - Urban/Metro 3G (2100MHz)		1.64dBi
802.11 b/g/n/ac WiFi (2400MHz)		1.64dBi
Telstra Metro 4GX (2600MHz)		0.28dBi

Electrical Specifications

• Frequency Range: 698-787MHz / 824-960 / 1710-2170 / 2400-2500 / 2600-3500MHz

• Input Impedance: 50Ω

• VSWR: <3.5:1 (max, band dependent)

• Radiation: Omnidirectional

• Maximum Power: 10Watts

Mechanical/Environmental Specifications

• Construction: Black Wonderloy PC/ABS Alloy radome, Nickel plated steel

• Cable: 3m LMR200

• Connector: 2x SMA Male

• Thermal Shock: -40°C to +85°C

• Weight: 0.87kg

• Dimensions: 85.7 x 145.6mm (H x Diameter)

• Mounting: 18mm M30 thread stud
