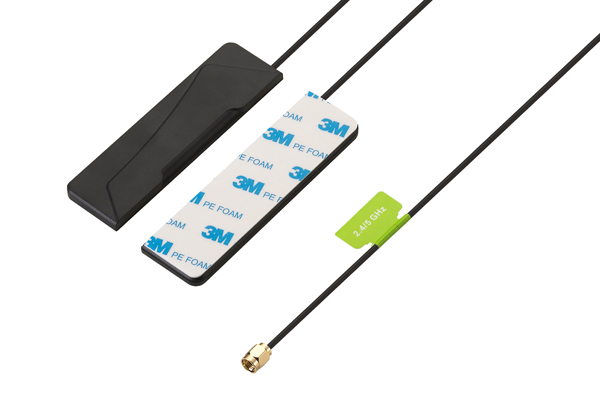

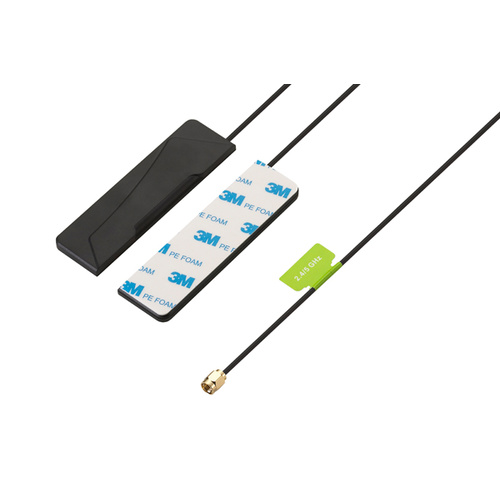

Taoglas Phoenix WSA.2458 Dual Band Wi-Fi I-Bar 2.4/5.8GHz Antenna



Key Features



  • Dual Band WiFi / WLAN Support - 2.4 & 5GHz

  • Adhesive Mount Antenna

  • Low Profile for Ease of Installation

  • 1M RG-174 cable with RP-SMA(M) connector



Usage



  • The WSA.2458 Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency WiFi antenna for use with both the 2.4 & 5GHZ network support.

  • Its slim-line design allows for covert and convenient installation in vehicles, vessels, enclosures and the like.

  • Its omni-directional gain across both ands ensures constant reception and transmission.

  • The Phoenix finds its application particularly in first-tier automotive application, aftermarket and telematics

  • With its unique ultra-wide band dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105 x 30mm

  • This antenna is designed to be mounted on glass or plastic (not on metal)

  • It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2.4GHz to 5GHz)
compatible
<1.73dBi



Electrical Specifications



  • Frequency Range: 2400-2500MHz / 4900-5850MHz

  • Input Impedance: 50Ω

  • VSWR: <2.1:1

  • Radiation: Omnidirectional

  • Maximum Power: 2Watts.



Mechanical/Environmental Specifications



  • Construction: UV Stabilised ABS

  • Cable: 1m RG174

  • Connector: RP SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 50g

  • Dimensions: 105 x 7.7 x 30mm (L x W x H).



Read More





taoglas logo

(WSA.2458.A.101151)

SKU WSA.2458.A.101151
Brand Taoglas
Shipping Weight 0.2000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
