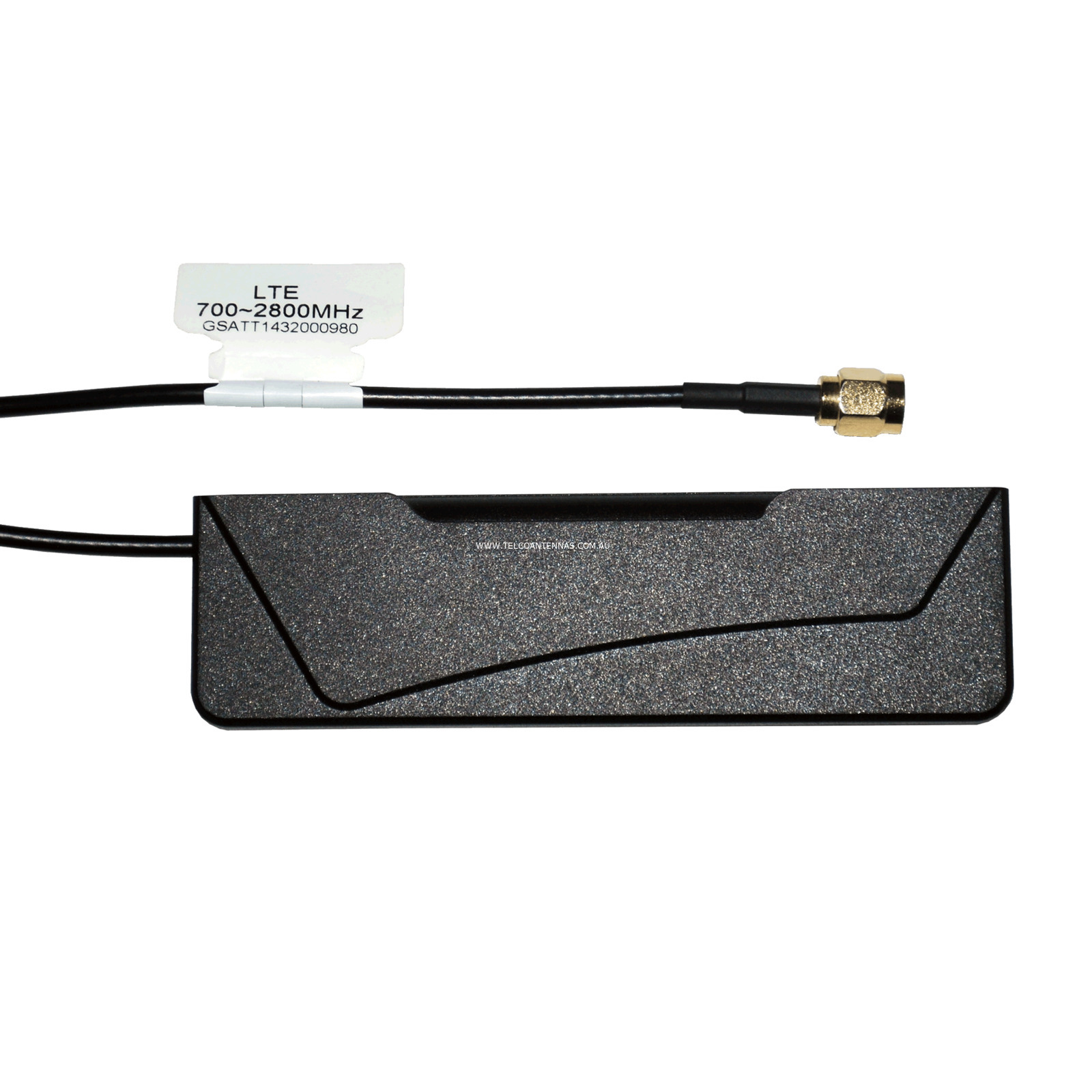

Taoglas Phoenix GSA.8827 Stick-on 700-2800MHz Antenna

Key Features

• Ultra wideband 700-2800MHz + GPS

• Suits 2G/3G/4G/WiFi/GPS M2M applications

• Exceptional performance on IoT bands

• Adhesive mounted

• IP67 UV stable housing

• 1 metre RG174 with SMA Male connector (fully customisable on request).

Usage

• The GSA.8827 Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency cellular antenna for use with all 2G/3G/4G cellular modules worldwide, including operation on GPS frequencies

• Its slim-line design allows for covert and convenient installation in automotive vehicles, its omni-directional gain across all bands ensures constant reception and transmission

• GSA.8827 is manufactured and tested in a TS16949 first tier automotive approved facility, and it has gone through full PPAP design, reliability and quality audits

• The Phoenix finds its application particularly in first-tier automotive application, aftermarket and telematics

• With its unique ultra-wide band dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105 x 30mm

• This antenna is designed to be mounted on glass or plastic (not on metal)

• It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior

• The antenna is UV resistant.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		2.83dBi
Optus 4G+ (700MHz)		2.83dBi
Telstra Next-G™ (850MHz)		1.71dBi
New Vodafone 4G (850MHz)* *Please check Vodafone Coverage Map		1.71dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2.93dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2.93dBi
Telstra 4G (1800MHz)		1.57dBi
Optus 4G (1800MHz)		1.57dBi
All Carriers - Urban/Metro 3G (2100MHz)		2.65dBi
802.11 b/g/n/ac WiFi (2400MHz)		1.49dBi
LTE-TDD Bands 38, 41 (2500-2690MHz)		1.49dBi
Telstra 4GX Band 7 (2600MHz)		1.49dBi

Electrical Specifications

• Frequency Range: 700-800MHz / 824-960MHz / 1575.42MHz / 1710-2170MHz / 2400-2800MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Radiation: Omnidirectional

• Maximum Power: 50Watts

Mechanical/Environmental Specifications

• Construction: UV Stabilised PC/ABS

• Cable: 1m RG174

• Connector: SMA Male

• Thermal Shock: -40°C to +85°C

• Weight: 40g

• Dimensions: 105 x 7.7 x 30mm (L x W x H)

• Mounting: Glass or Plastic
